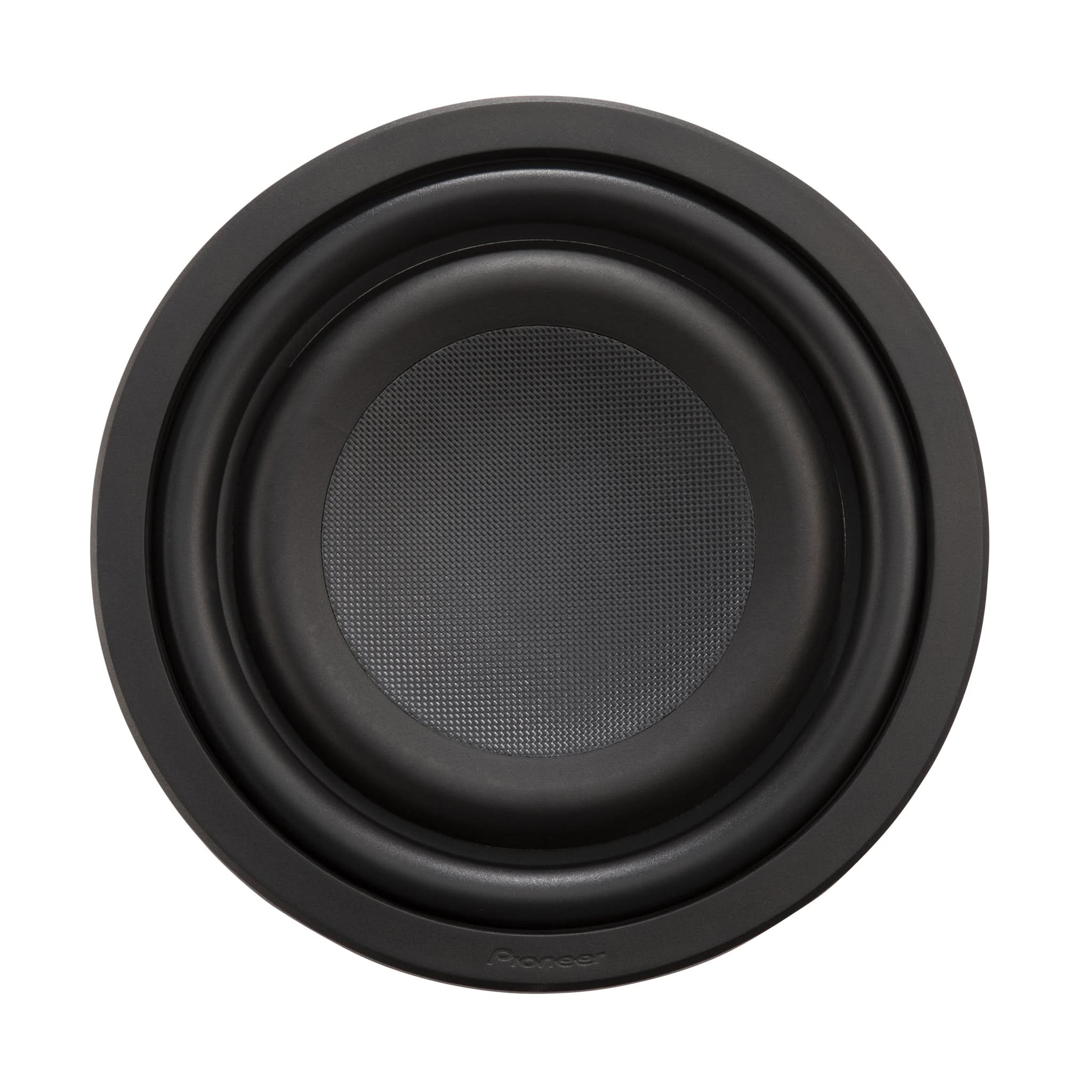

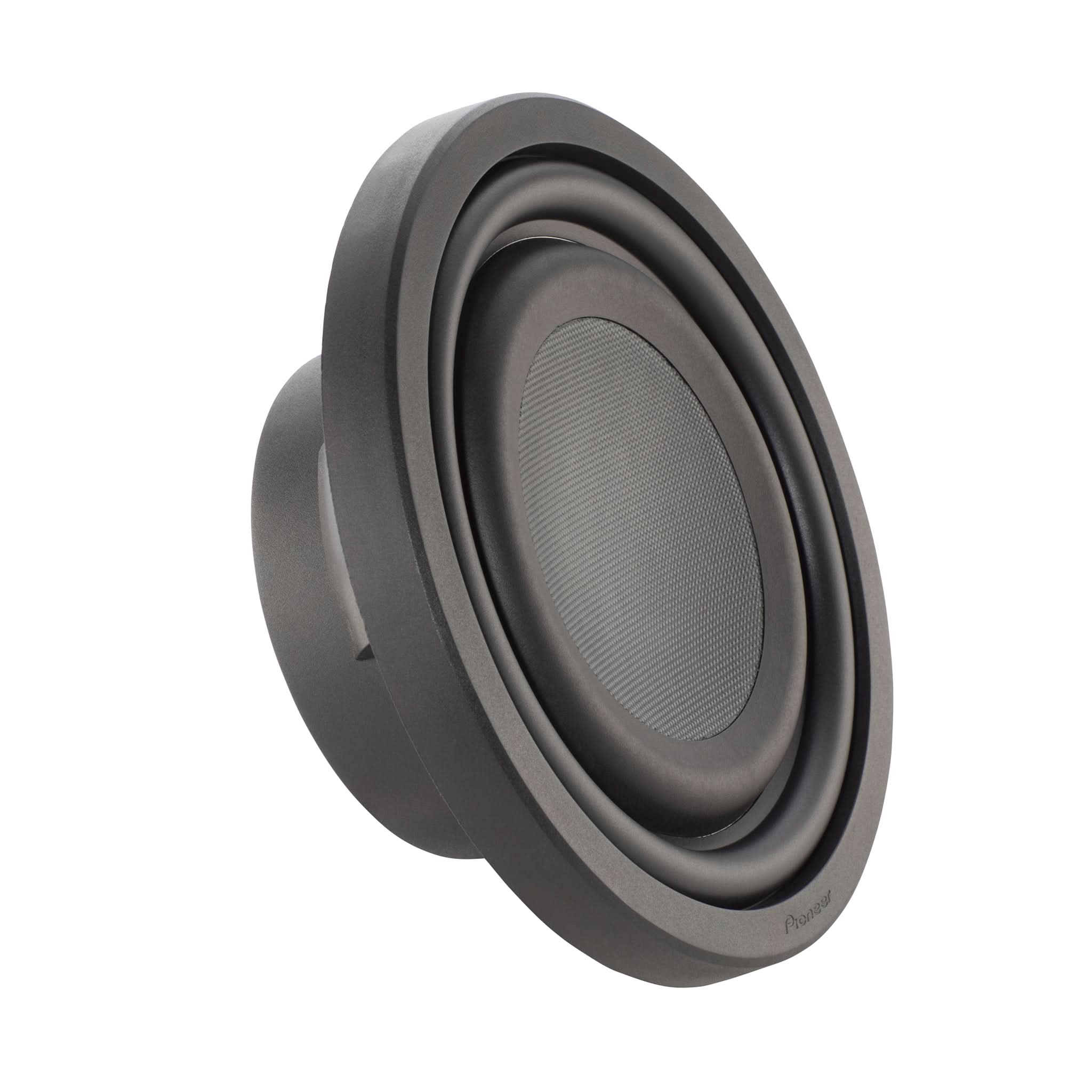

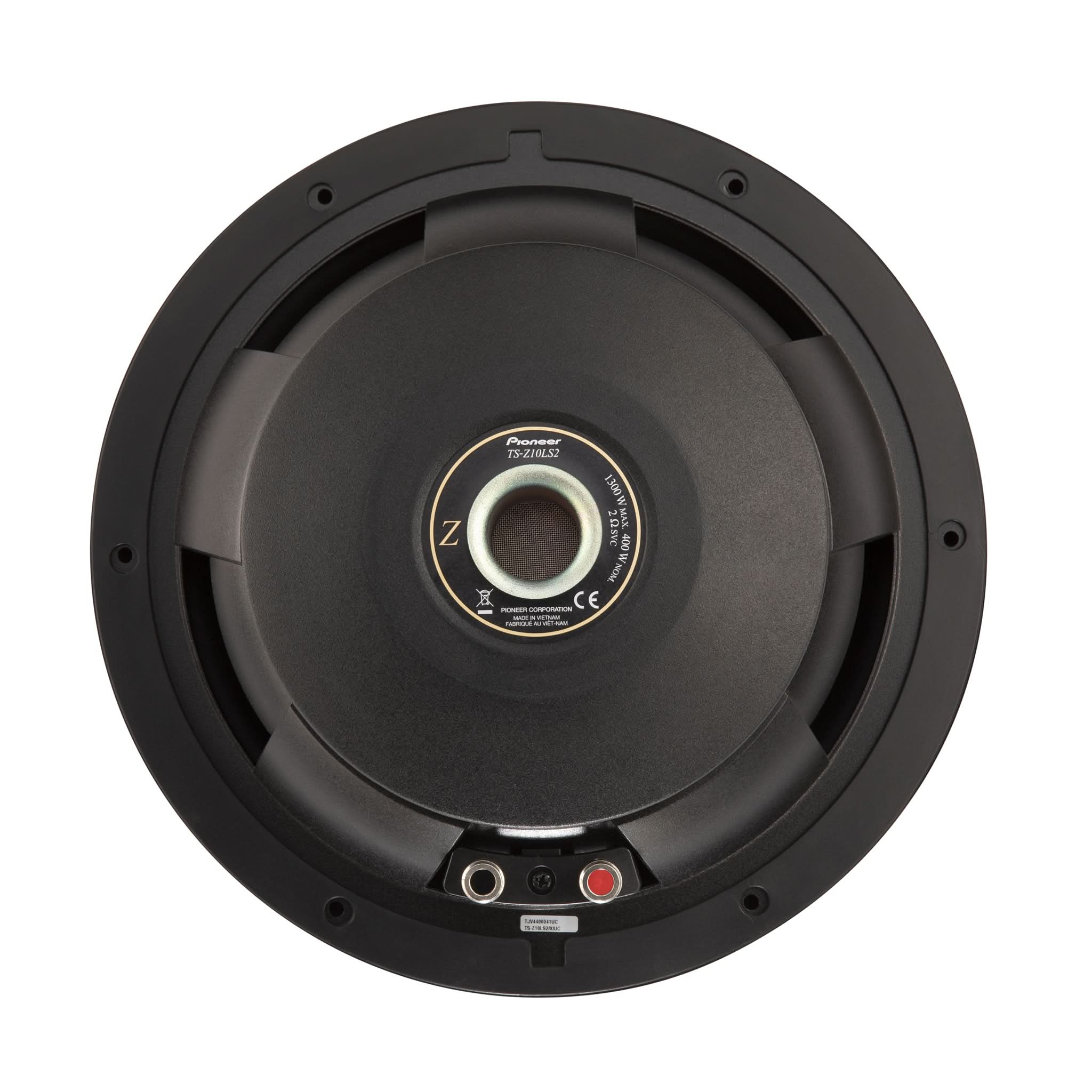

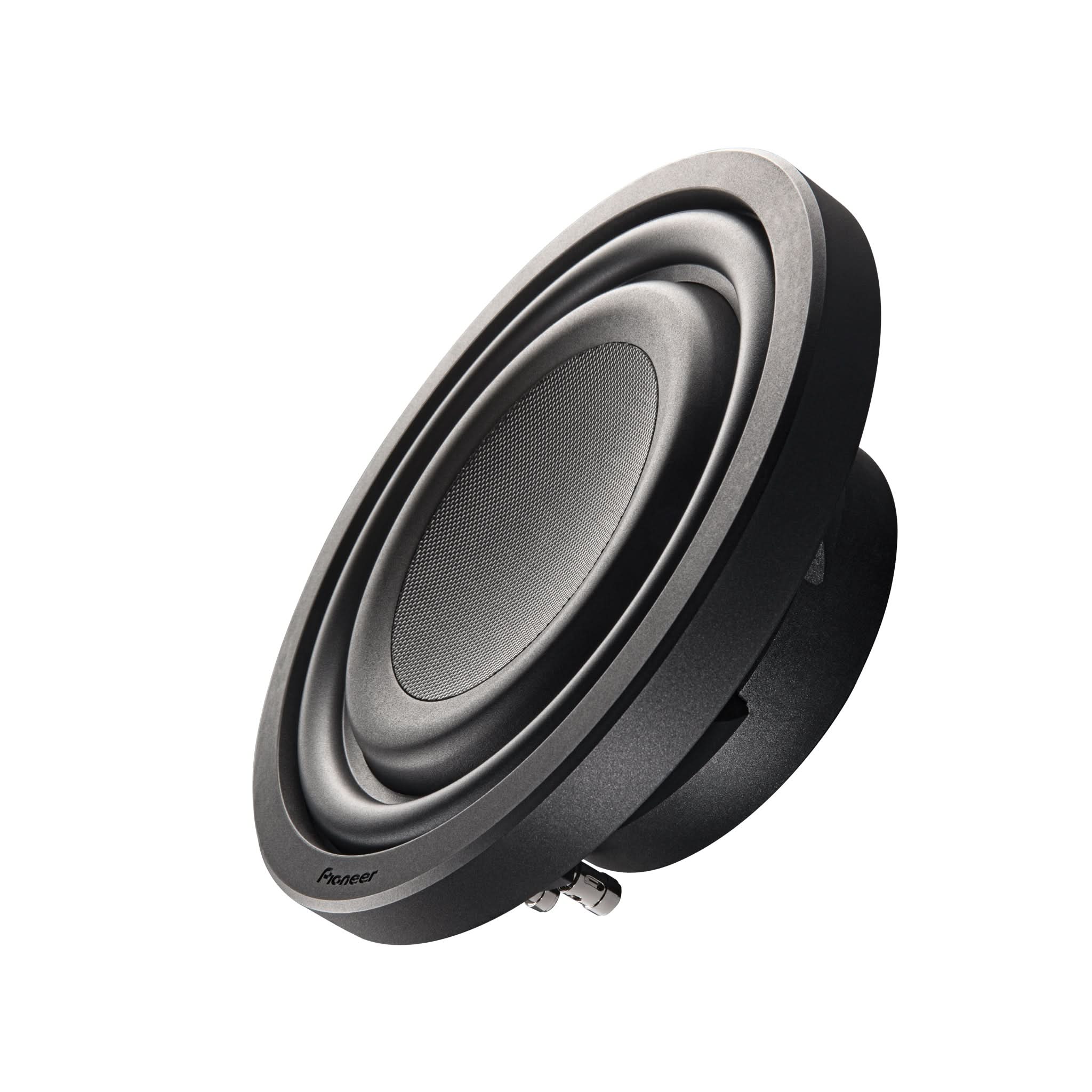

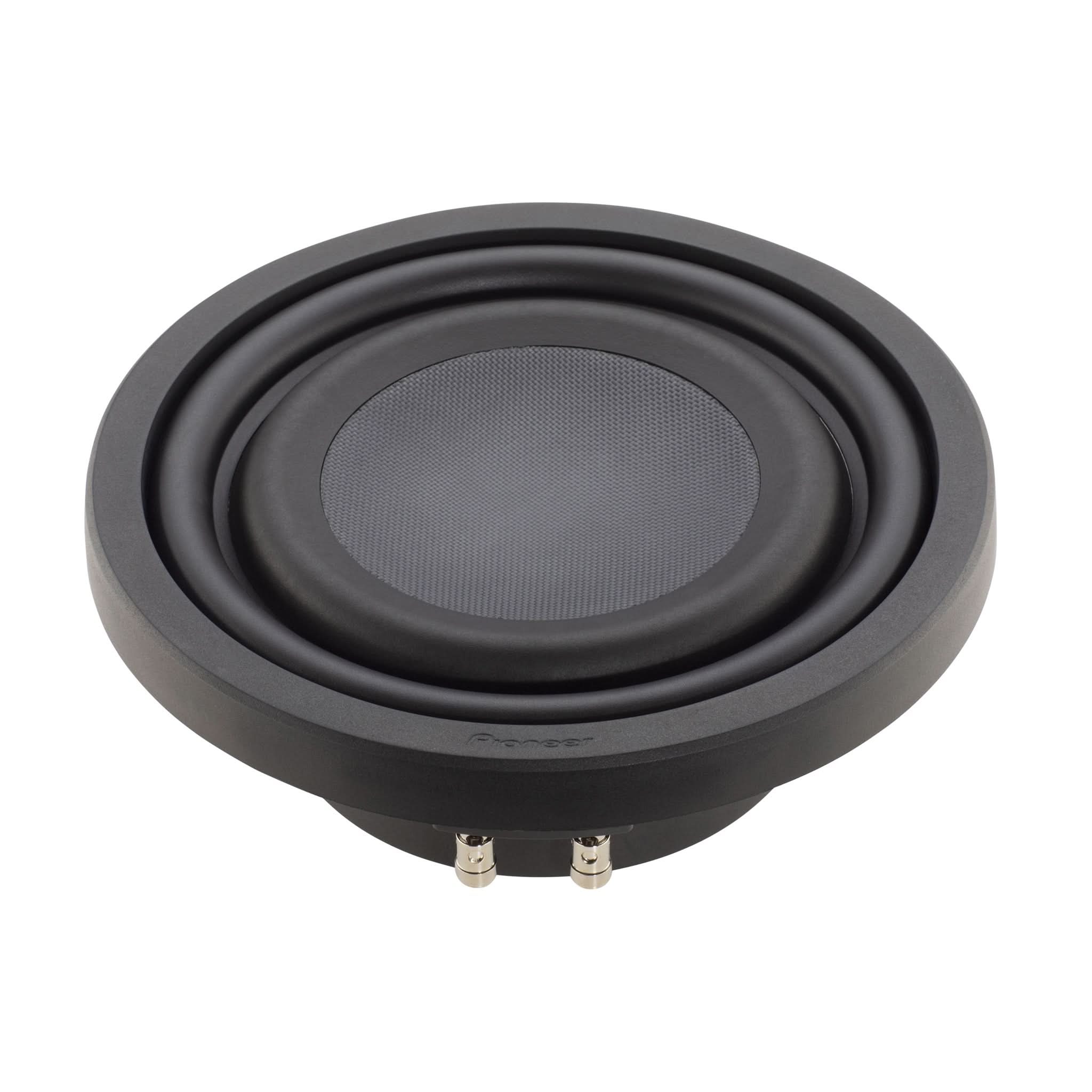

TS-Z10LS2 10" Z-Series Shallow-Mount 2-Ohm Subwoofer Slim High Fidelity

Barcode : 884938374552
SKU : TS-Z10LS2

Features:

1300 Watts Max. Power / 400 Watts Nominal Power
10" Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone
Butyl Rubber Surround & Dual Poly-Cotton spider
Frequency range: 20 Hz to 3.8 kHz
Speaker Impedance: 2 ohms
Speaker Efficiency: 74 dB (1W/1M)
Mounting depth: 3-1/4"
Recommended Box volume : 0.6cu.ft. (sealed)

Ask about TS-Z10LS2 10" Z-Series Shallow-Mount 2-Ohm Subwoofer Slim High Fidelity

Product Details

The Z-Series is designed for high fidelity, high output, and ease of installation. The TS-Z10LS2 10" subwoofer will handle up to 400 W RMS. The shallow basket design allows installation in places where an ordinary subwoofer will not fit. The oversized dual-layer cone of Twaron aramid fiber and cellulose fiber supported by a tough butyl rubber surround delivers accurate, hard-hitting bass notes even when the music is turned up loud. The lightweight die-cast aluminum basket provides an incredibly stable housing for the subwoofer, without any coloration. Its 2-Ω voice coil makes provides system flexibility when using multiple subwoofers with a single amplifier.

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 400
Frequency Response : 20 Hz to 3.8 kHz
Maximum Peak Power Handling - Watts : 1300
Nominal Impedance - Ohm : 2-Ohm
Sensitivity (1W/1m) : 74dB
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 9-1/8", 23.18 cm
Equivalent Compliance (VAS) : 23.1 Liters, 0.81 Cu. Ft.
Free Air ResoNAnce (Fs) : 34
Linear Excursion (Xmax) : 9.4 mm, 3/8"
Mounting Depth : 3-1/4"
Port Diameter : 3", 7.62 cm
Port Length : 7-1/2", 19.05 cm
Recommended Ported Box Internal volume : 17 Liters, 0.60 Cu. FT.
Recommended Sealed Enclosure Volume : 0.6 Cu Ft, 17 Liters
Total Speaker "Q" (Qts) : 0.48
Woofer Dimensions : 10"
