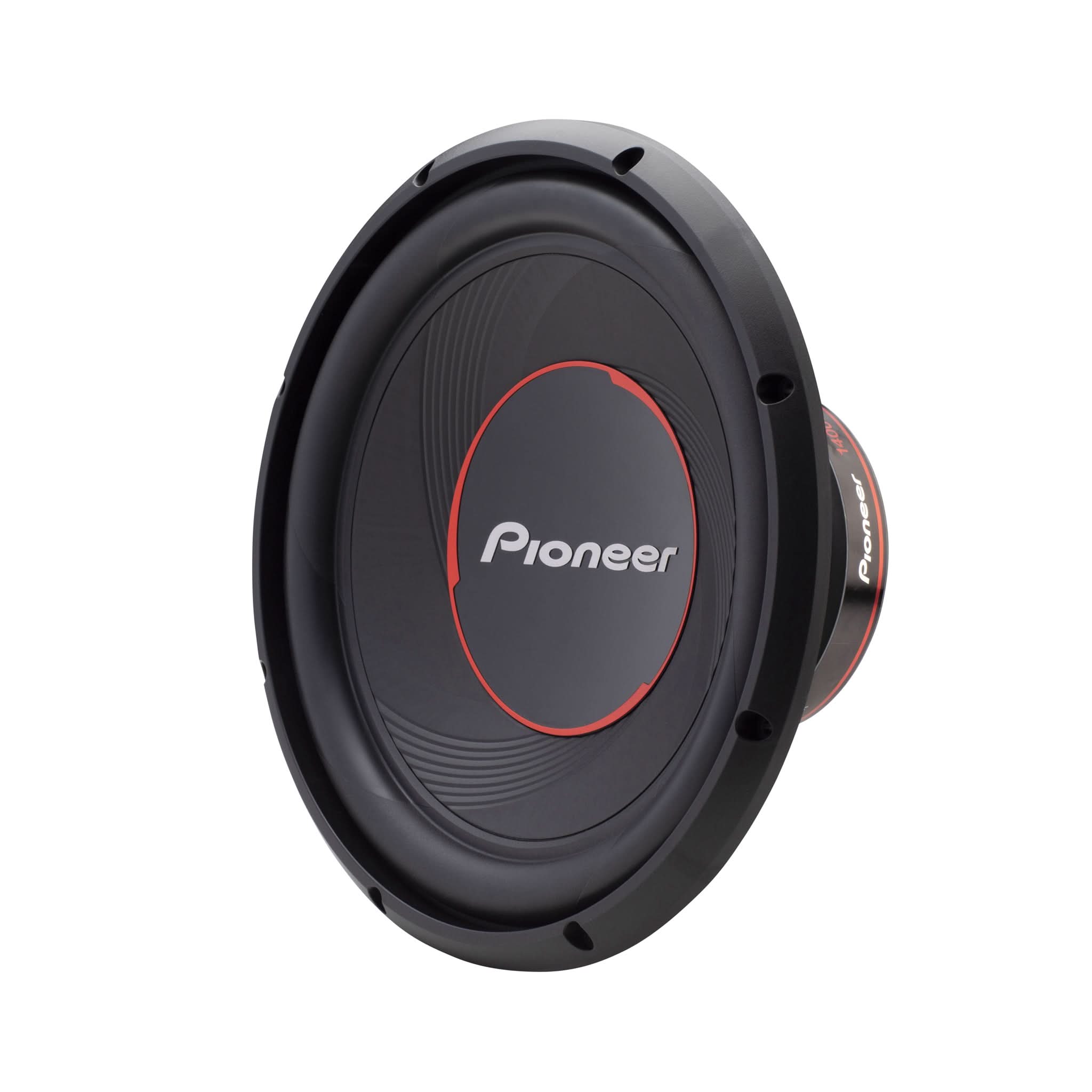

Pioneer car subwoofer on a white background

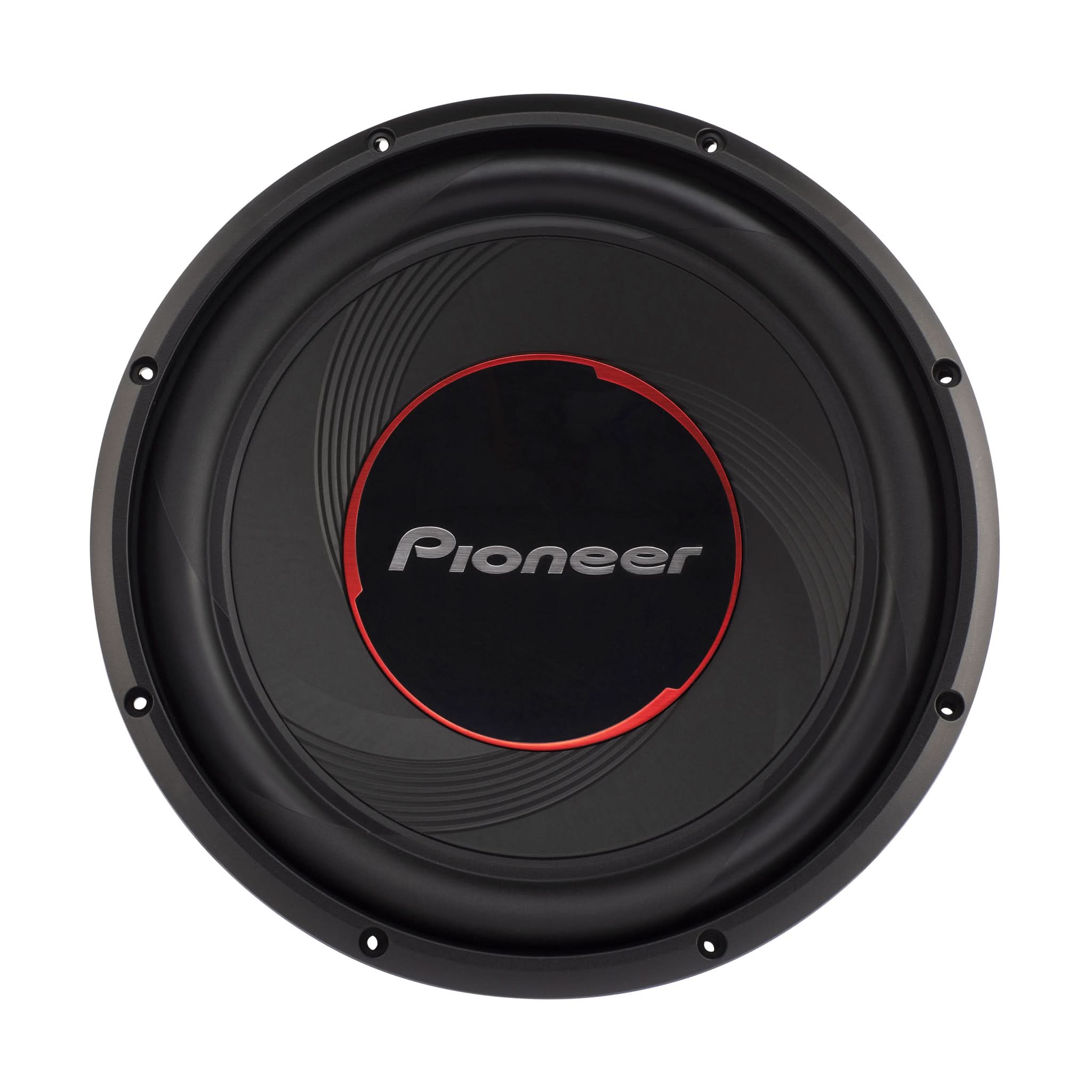

Pioneer speaker subwoofer on a white background

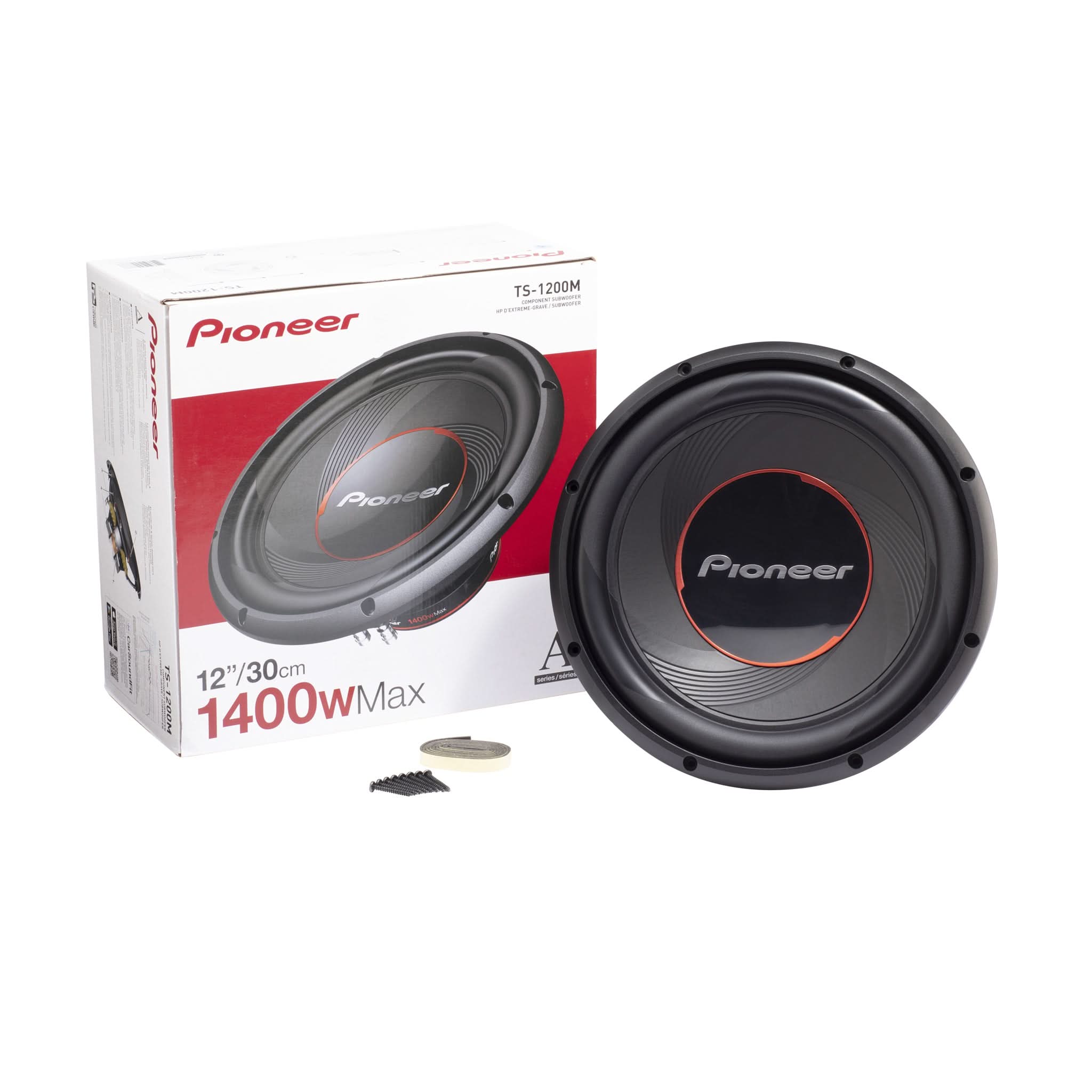

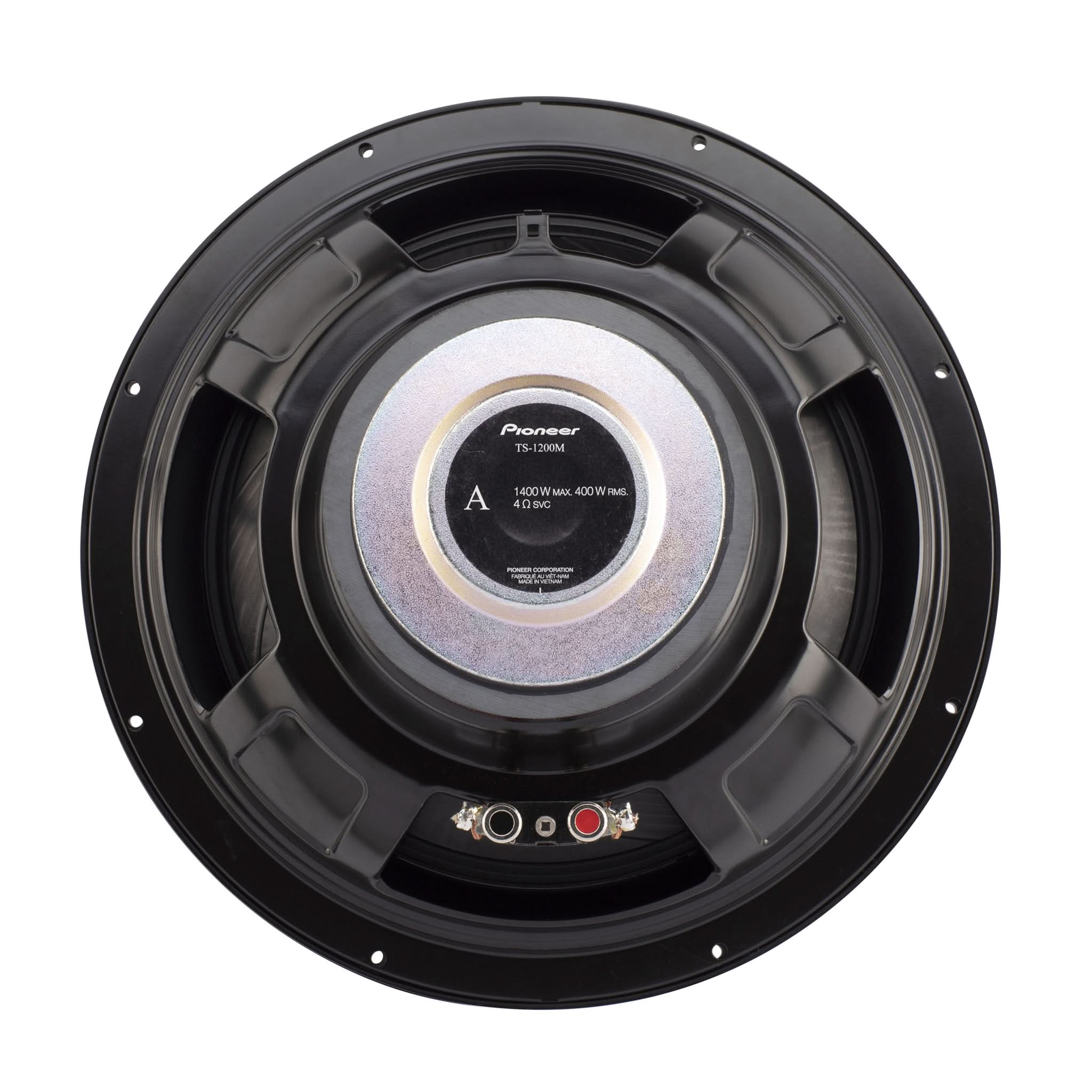

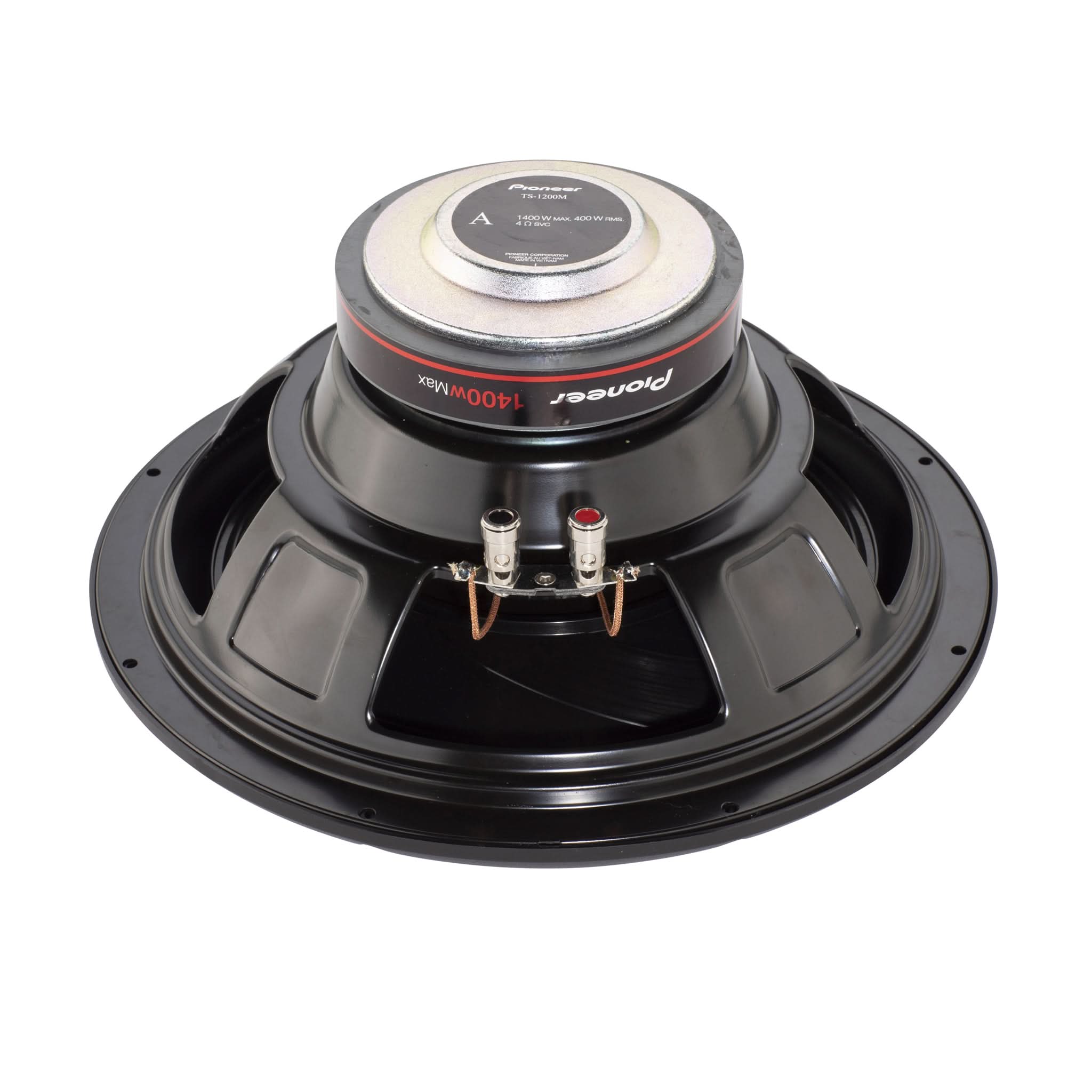

TS-1200M 12" A-Series Component Subwoofer | 1400W Max | Single 4-Ohm

Name: TS-1200M 12" A-Series Component Subwoofer | 1400W Max | Single 4-Ohm
Brand: PCAN
SKU: TS-1200M
Availability: OutOfStock

Barcode : 884938446686

SKU : TS-1200M

Features:

1400 Watts Max. Power / 400 Watts Nominal Power
12" IMPP™ Composite Cone
Elastic polymer Surround & polycotton spider
Frequency range: 22 Hz to 1.6 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 87 dB (1W/1M)
Mounting depth: 5.375” (136mm)
Recommended Box volume : 1.5cu.ft (vented) / 1.25cu.ft. (sealed)

Ask about TS-1200M 12" A-Series Component Subwoofer | 1400W Max | Single 4-Ohm

Product Details

12" Component Subwoofer - 1400 max/400 nominal, IMPP™ cone produces tight and accurate bass, Specially designed Voice coil offers higher power handling

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 400
Frequency Response : 22 Hz to 1.6 kHz
Maximum Peak Power Handling - Watts : 1400
Nominal Impedance - Ohm : 4-Ohm
Sensitivity (1W/1m) : 87dB
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 11-1/8"
Equivalent Compliance (VAS) : 56.1 liters, 1.98 Cu. Ft.
Free Air ResoNAnce (Fs) : 32.1
Linear Excursion (Xmax) : 8.25 mm
Port Diameter : 3"
Port Length : 6-1/2"
Recommended Ported Box Internal volume : 42.5 Liters, 1.5 Cu. Ft
Recommended Sealed Enclosure Volume : 35.4 Liters, 1.25 Cu Ft
Total Speaker "Q" (Qts) : 0.70
Woofer Dimensions : 12"
