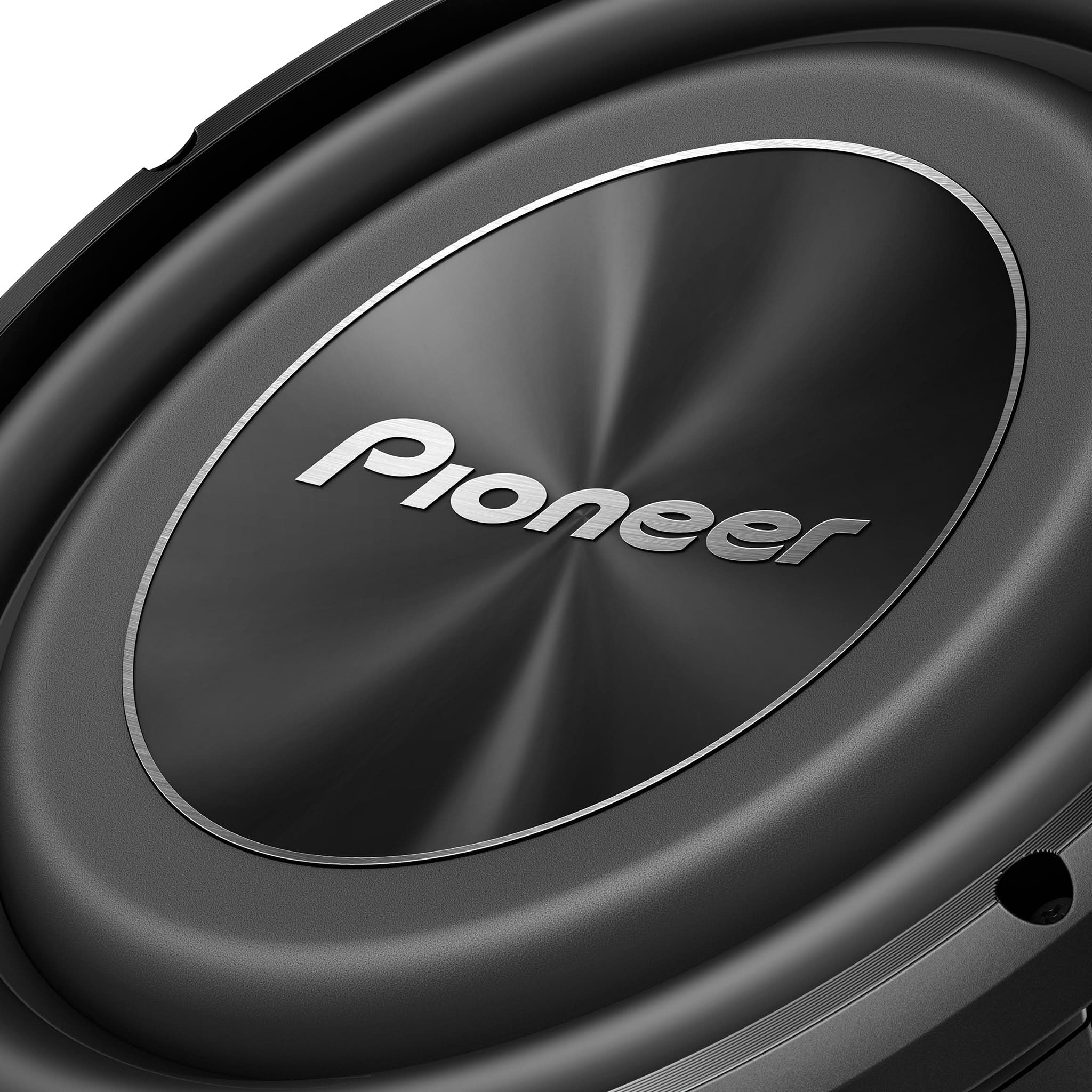

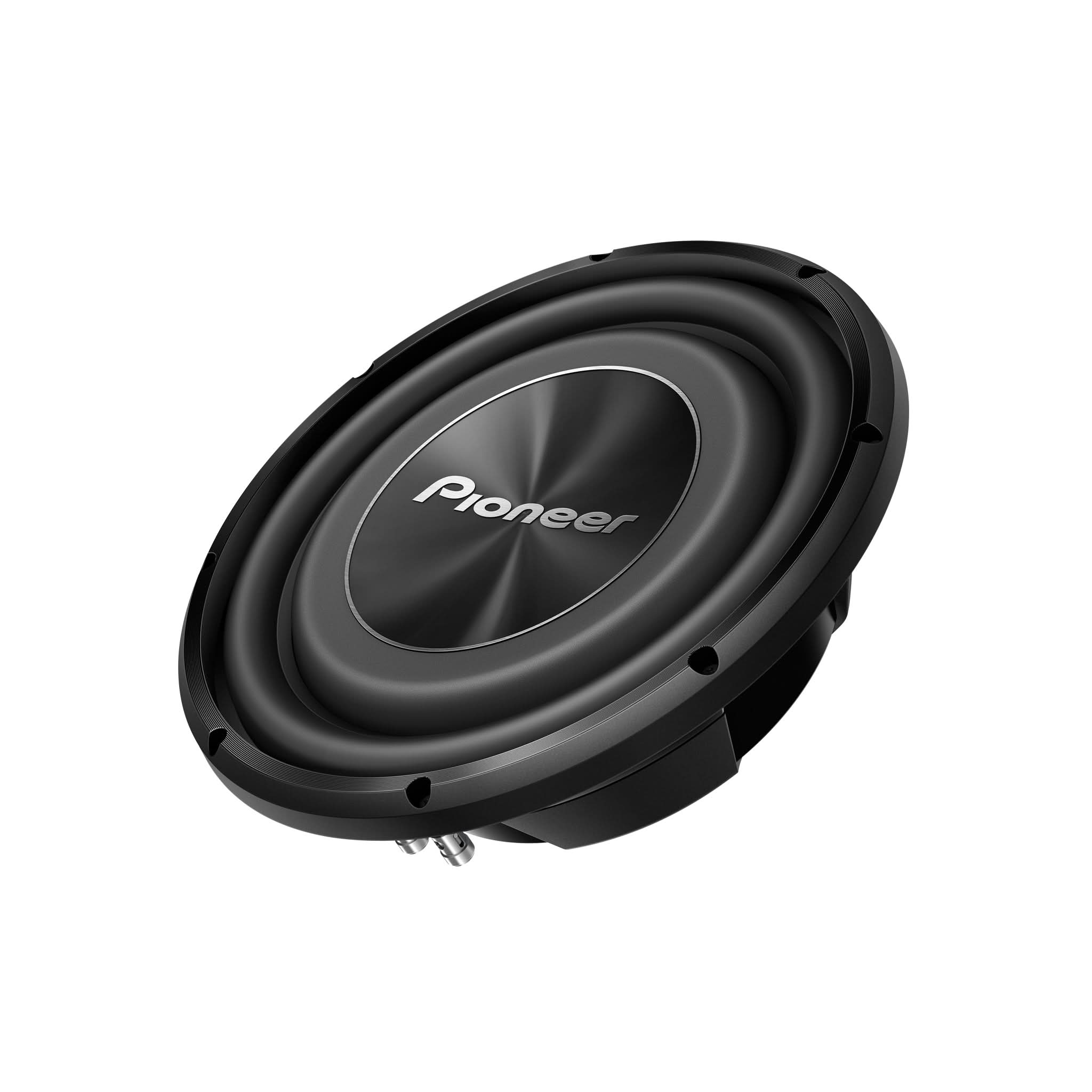

Pioneer car subwoofer on a white background

TS-A3000LS4 12" Shallow-Mount Subwoofer | 1500W Max | Low-Profile

Name: TS-A3000LS4 12" Shallow-Mount Subwoofer | 1500W Max | Low-Profile
Brand: PCAN
SKU: TS-A3000LS4
Availability: OutOfStock

Barcode : 884938446679

SKU : TS-A3000LS4

Features:

1500 Watts Max. Power / 400 Watts Nominal Power
12" Glass-fiber & Mica reinforced IMPP™ Cone
Rubber Surround & Aramid-fiber dual-spider design
Frequency range: 20 Hz to 1.0 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 88 dB (1W/1M)
Mounting depth: 3.5” (89mm)
Recommended Box volume : 0.8cu.ft. (sealed)

Ask about TS-A3000LS4 12" Shallow-Mount Subwoofer | 1500W Max | Low-Profile

Product Details

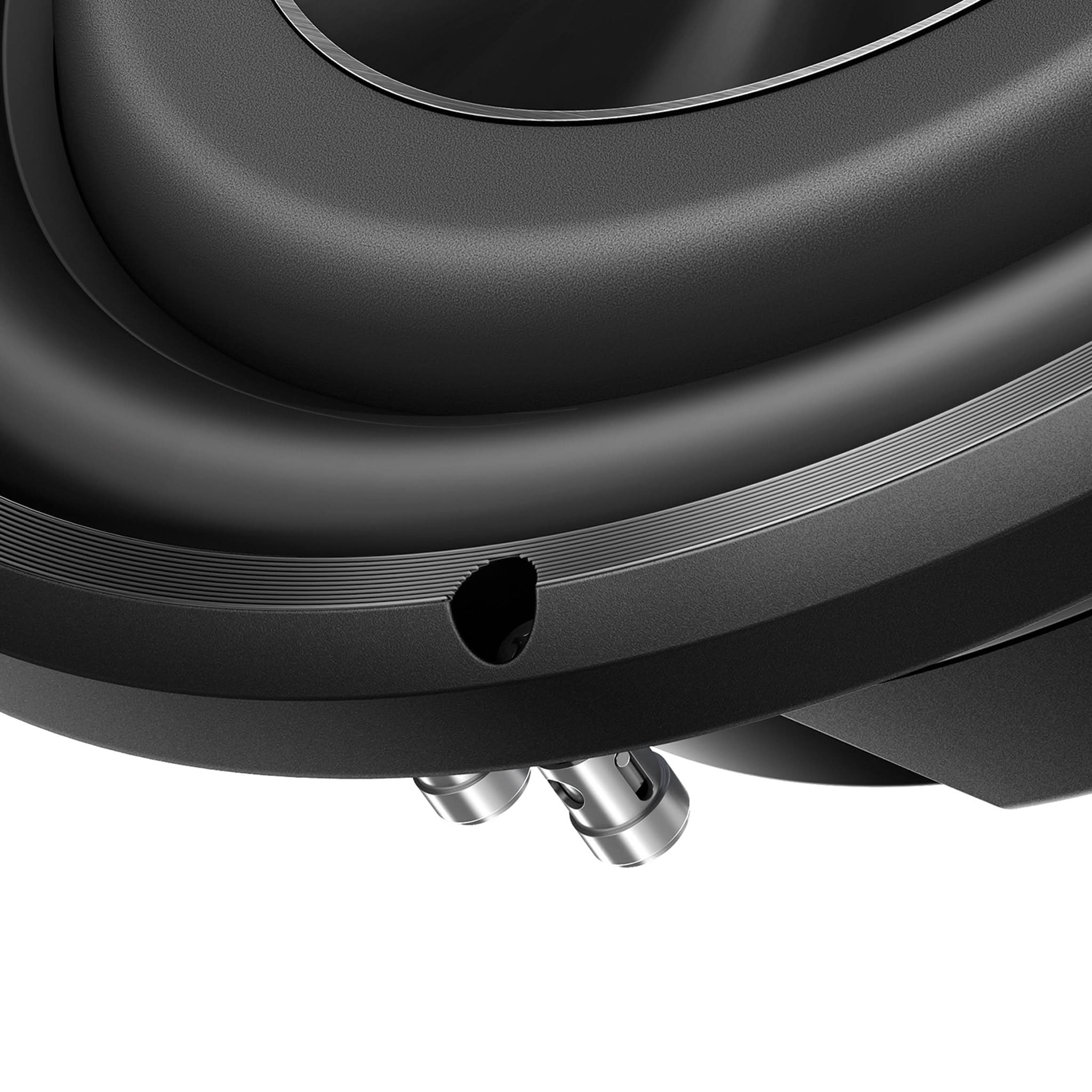

12" Shallow-Mount Subwoofer - 1500 W Max Power (400 W Nominal), Unique Design with just 3-1/2" Mounting Depth, Small Enclosure Use (0.5 ~ 1.0 cu. ft.), 4 Ω Single Voice Coil, Glass Fiber and Mica Reinforced IMPP™ cone, Double reinforced Spider, 8-AWG Push Terminals

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 400
Frequency Response : 20 Hz to 1 kHz
Maximum Peak Power Handling - Watts : 1500
Nominal Impedance - Ohm : 4-Ohm
Sensitivity (1W/1m) : 88dB
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 11-1/8", 10cm
Equivalent Compliance (VAS) : 45.6 Liters, 1.61 Cu. Ft.
Free Air ResoNAnce (Fs) : 31
Linear Excursion (Xmax) : 8.8, 0.35"
Mounting Depth : 3-1/2"
Port Diameter : 7.62cm, 3"
Port Length : 5-7/8", 14.92cm
Recommended Ported Box Internal volume : 22.6 Liters, 0.8 Cu. Ft.
Recommended Sealed Enclosure Volume : 0.8 Cu Ft, 22.6 Liters
Subwoofer Grille : UD-12GL Sold Separately
Total Speaker "Q" (Qts) : 0.54
Woofer Dimensions : 12"

Manuals/Warranty

Looking for manuals, firmware updates, and more information? Click Here
