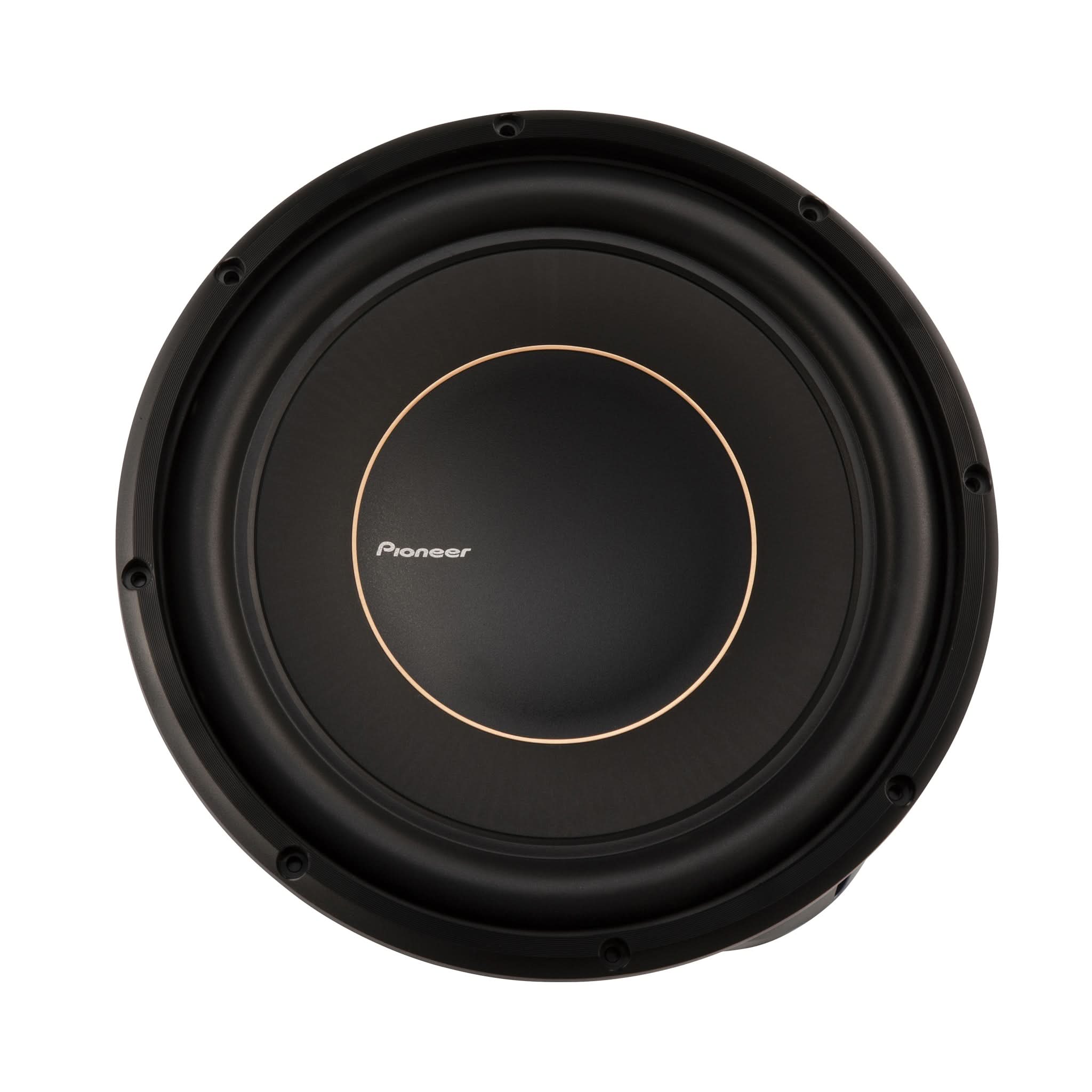

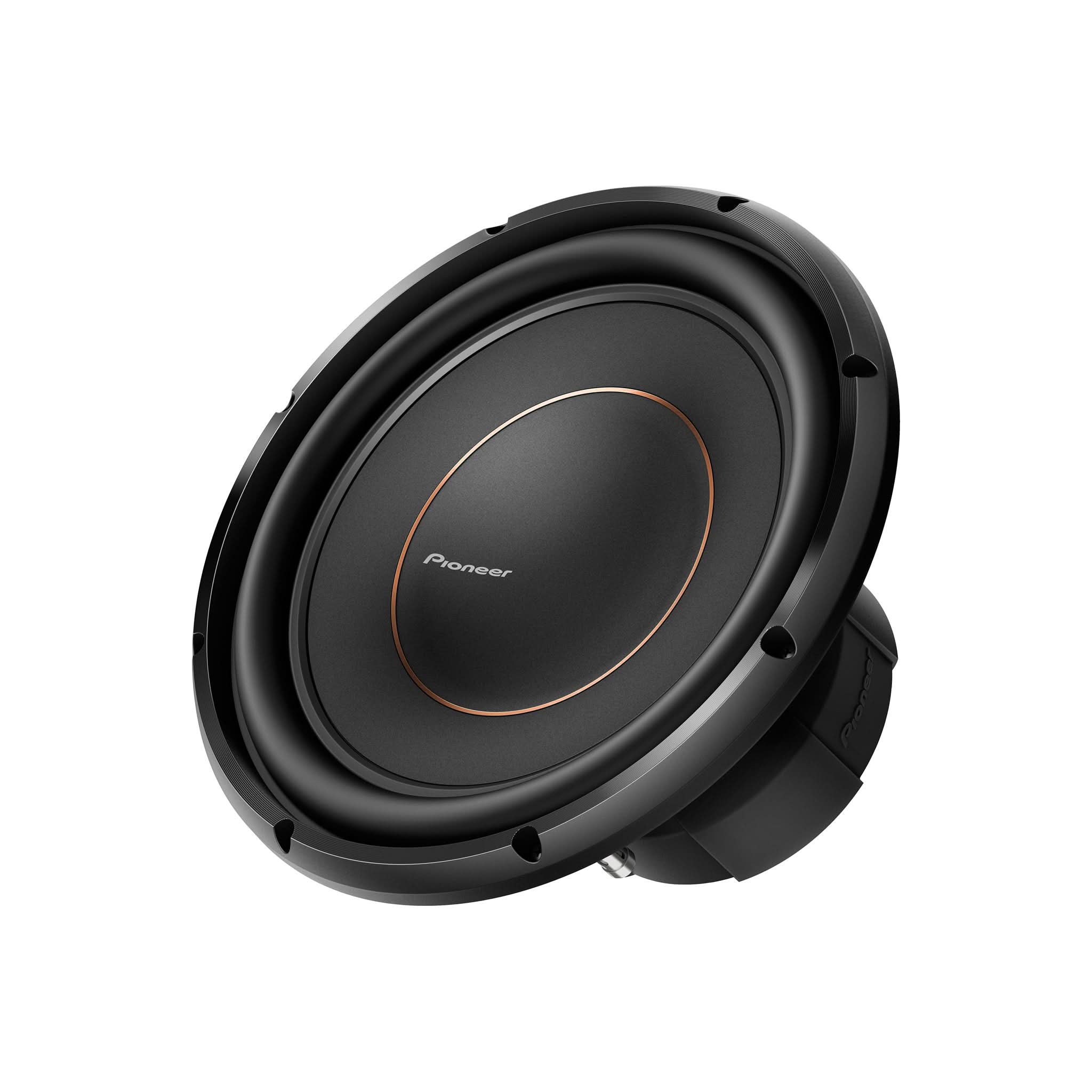

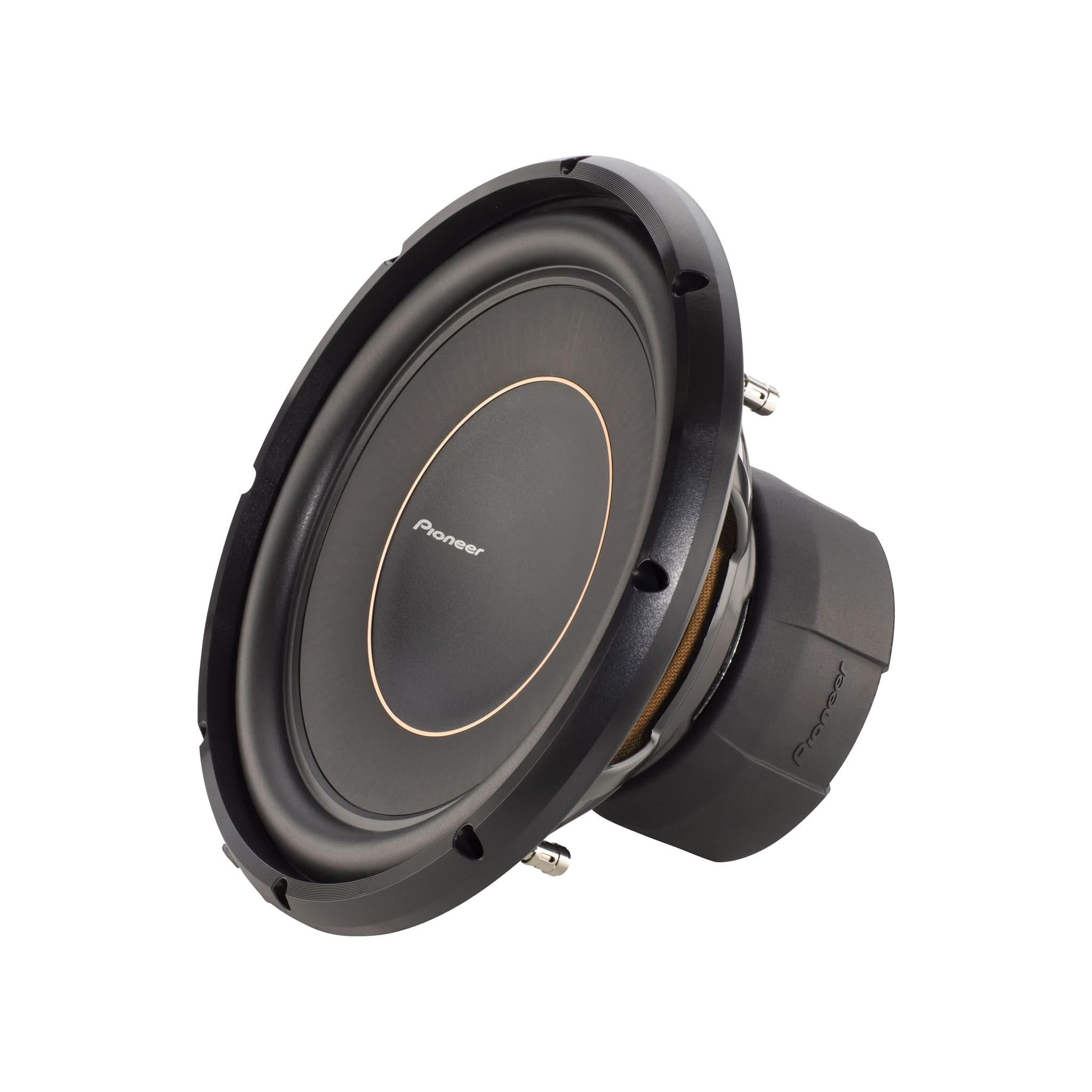

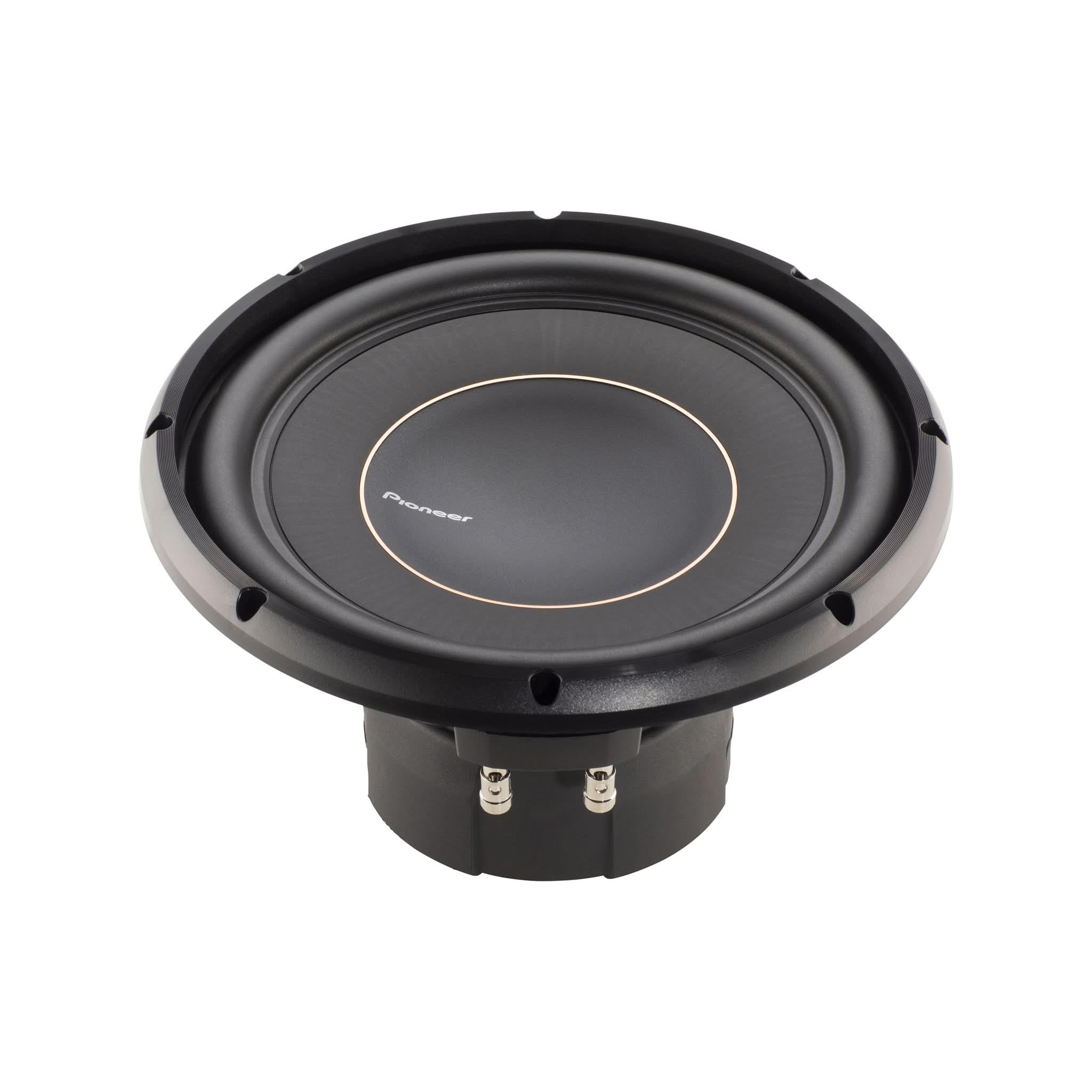

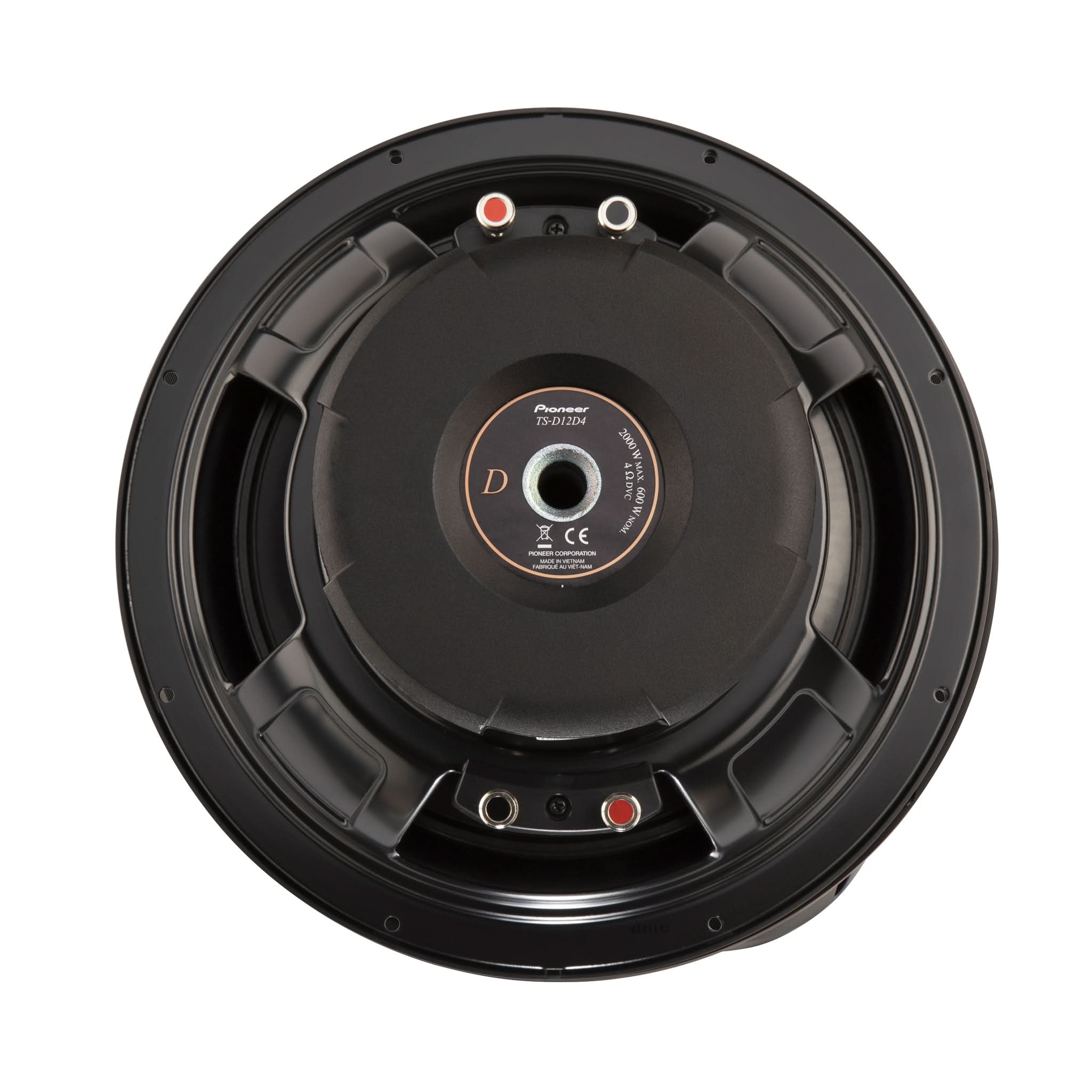

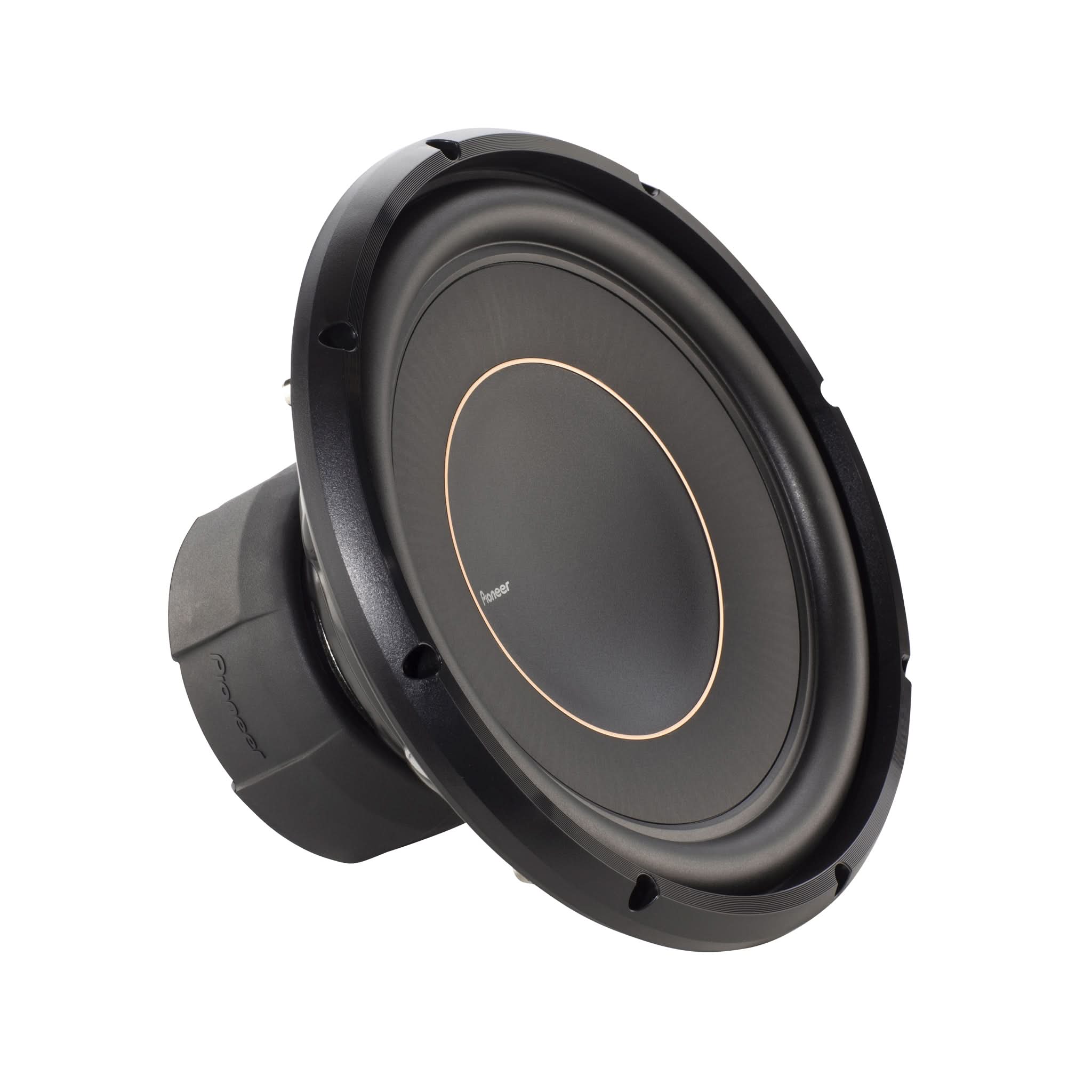

Black car subwoofer on a white background

TS-D12D4 12" D-Series Subwoofer | Dual 4-Ohm Voice Coil | 2000W Max

Name: TS-D12D4 12" D-Series Subwoofer | Dual 4-Ohm Voice Coil | 2000W Max
Brand: PCAN
SKU: TS-D12D4
Availability: OutOfStock

Barcode : 884938374408

SKU : TS-D12D4

Features:

2000 Watts Max. Power / 600 Watts Nominal Power
12" Aramid Fiber Interlaced IMPP™ cone
Butyl Rubber Surround & Meta-Aramid fiber spider
Frequency range: 20 Hz to 4.7 kHz
Speaker Impedance: 2x 4 ohms
Speaker Efficiency: 78 dB (1W/1M)
Mounting depth: 6.2” (158mm)
Recommended Box volume : 1.2cu.ft. (vented) / 1.0cu.ft. (sealed)

Ask about TS-D12D4 12" D-Series Subwoofer | Dual 4-Ohm Voice Coil | 2000W Max

Product Details

The TS-D12D4 12" subwoofer can handle up to 600 W RMS, delivering impressive low-frequency levels. This subwoofer features an injection-molded polypropylene IMPP™ cone infused with Aramid fibers for exceptional precision and strength. A butyl rubber surround supports the subwoofer during cone excursion, ensuring accurate, hard-hitting bass notes even when the music is turned up loud. When setting up your system, the dual 4Ω voice coils of this subwoofer provide more wiring options.

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 600
Frequency Response : 20 Hz to 4.7 kHz
Maximum Peak Power Handling - Watts : 2000
Nominal Impedance - Ohm : 4-Ohm dual
Sensitivity (1W/1m) : 78dB
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 11-1/8", 28 cm
Equivalent Compliance (VAS) : 47.9 Liters, 2 Cu. Ft.
Free Air ResoNAnce (Fs) : 34
Linear Excursion (Xmax) : 1/2", 13 mm
Mounting Depth : 6-1/8"
Port Diameter : 3", 8 cm
Port Length : 6", 15 cm
Recommended Ported Box Internal volume : 28.3 Liters, 1.0 Cu. Ft.
Recommended Sealed Enclosure Volume : 28.3 Liters, 1.0 Cu. Ft.
Total Speaker "Q" (Qts) : 0.69
Woofer Dimensions : 12"

Manuals/Warranty

Looking for manuals, firmware updates, and more information? Click Here
