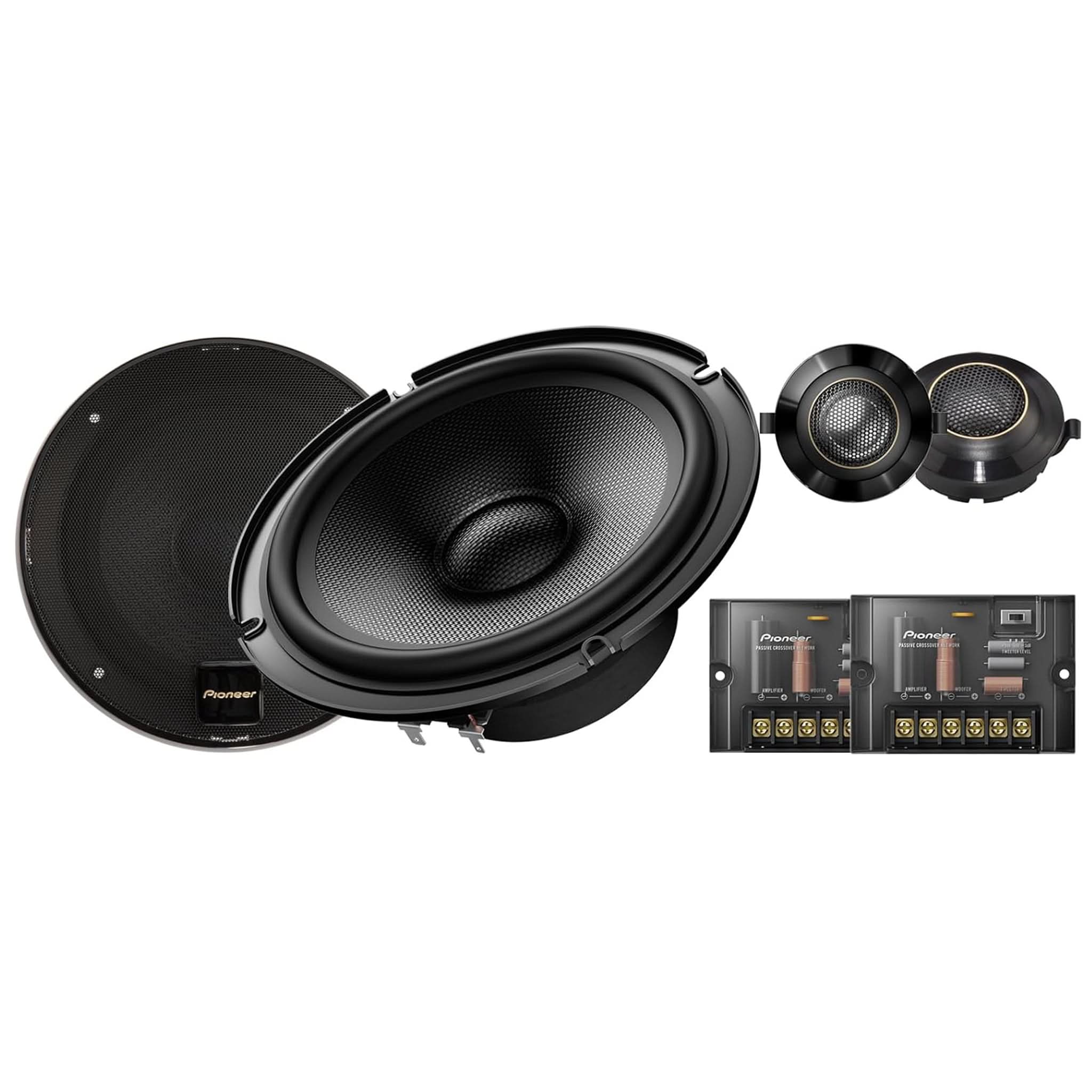

TS-Z65CH 6.5" Z-Series 2-Way Component Speaker System | Hi-Res Audio

Barcode : 884938374613
SKU : TS-Z65CH

Features:

330 Watts Maximum Power
110 Watts Nominal Power
6.5" Twaron® Aramid + Cellulose Fiber Dual-Layer Cone
29mm HSDOM Aluminum Alloy Dome Tweeter
Frequency range: 30 Hz to 96 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 85 (1W/1M)
Swivel Tweeter Mounting Kit

Ask about TS-Z65CH 6.5" Z-Series 2-Way Component Speaker System | Hi-Res Audio

Product Details

The Z-Series TS-Z65CH component speaker system is an excellent way to add smooth, open sound quality to your car. Equipped with a 15.2 oz magnet to handle power up to 110 W RMS, Pioneer designed the Z-Series to harness a wealth of information and reproduce music incredibly close to the original performance. To ensure a premium audio experience, the Z-Series TS-Z65CH uses Twaron®, a lightweight, heat-resistant aramid fiber that is exceptionally strong and stable, creating a woofer cone that confidently handles your music's midrange and lows without undesirable resonance. An oversized aluminum dome tweeter with a VERTEX drive reproduces the most demanding tones while maintaining accuracy in high-level playback. With a frequency range as low as 30 Hz and up to 96,000 Hz, you can enjoy authentic reproduction of your finest recordings, with all the overtones and harmonics making music real. Compact, high-quality external crossover networks bring out the best in each driver, ensuring you experience seamless sound performance.

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 110
Crossover Frequency : 4500 Hz (Acoustic), 1900 Hz (Electric)
Frequency Response : 30 Hz to 96 kHz
Hi-Res Certified : Yes
Maximum Peak Power Handling - Watts : 330
Nominal Impedance - Ohm : 4-Ohm
Sensitivity (1W/1m) : 85 dB (± 1.5dB)
System-Type : Component 2-way, Balanced Dome - Tweeter

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 5-5/8"
Mounting Depth : 2-1/2" - Midrange, 5/8" - Tweeter
Outer Diameter : 2-3/8"
Protrusion : 1/2"
Tweeter Dimensions : 1.14"
Tweeter Mounting Hole Diameter : 2"
Tweeter - Swivel Type : Yes
Woofer Dimensions : 6.5"

Manuals/Warranty

Looking for manuals, firmware updates, and more information? Click Here
