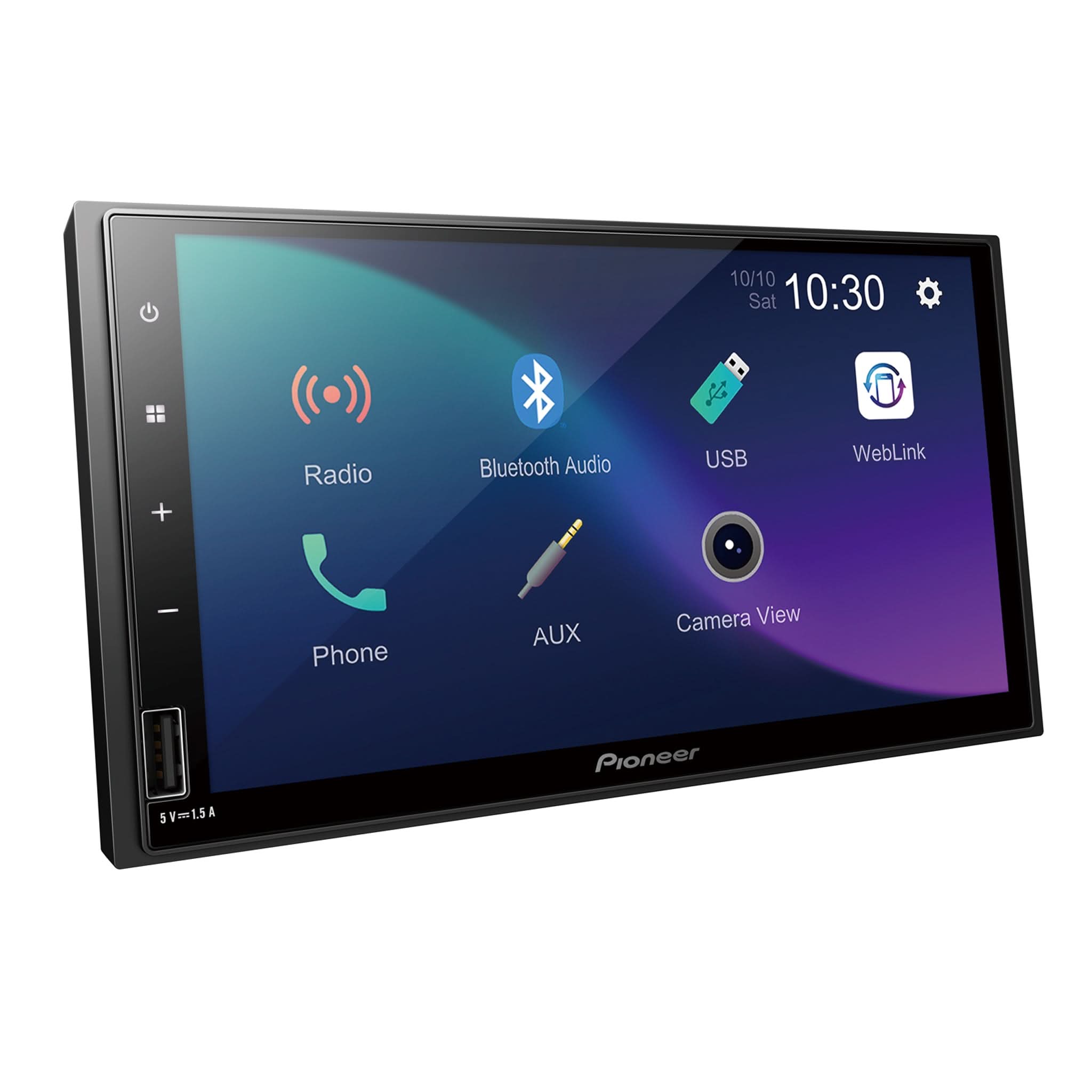

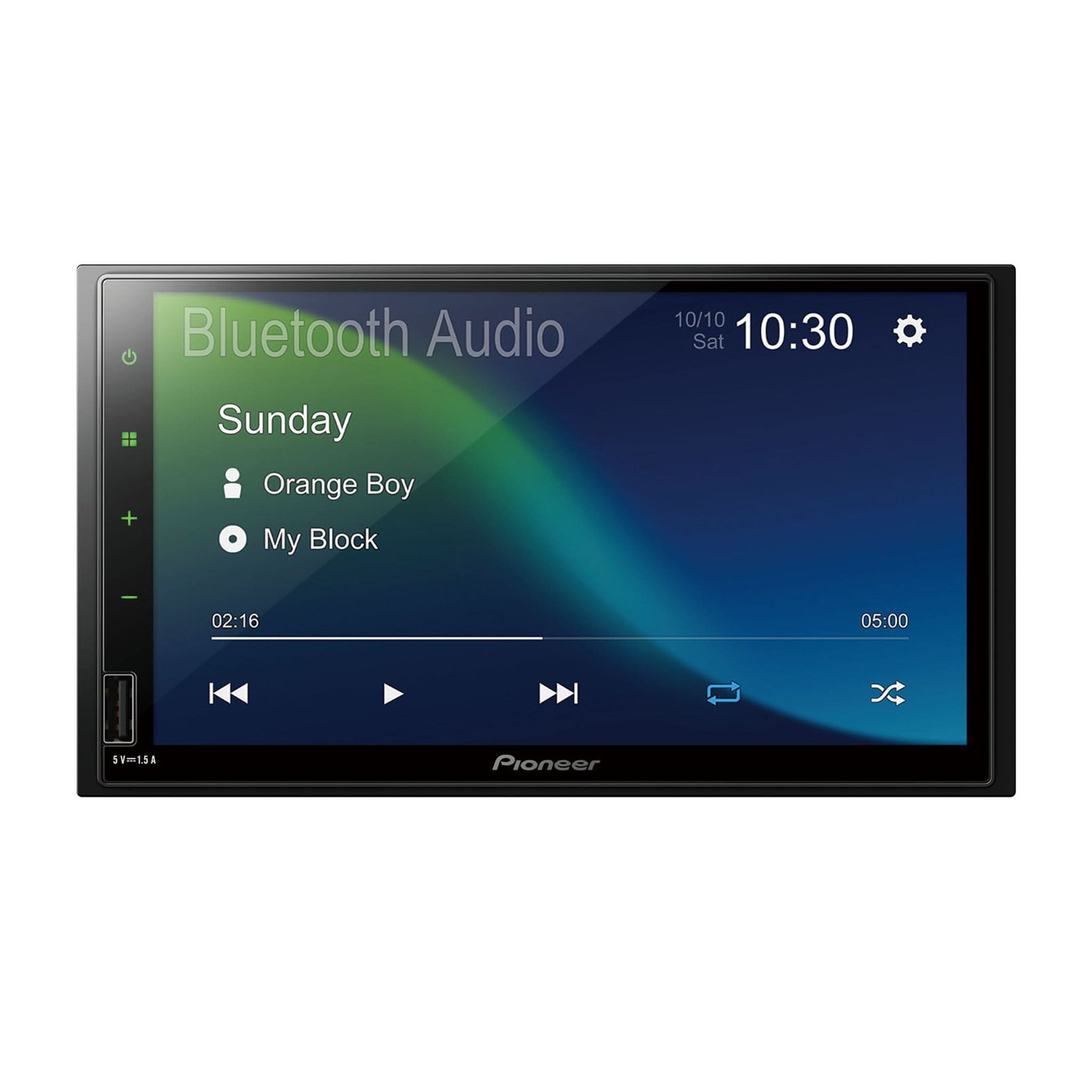

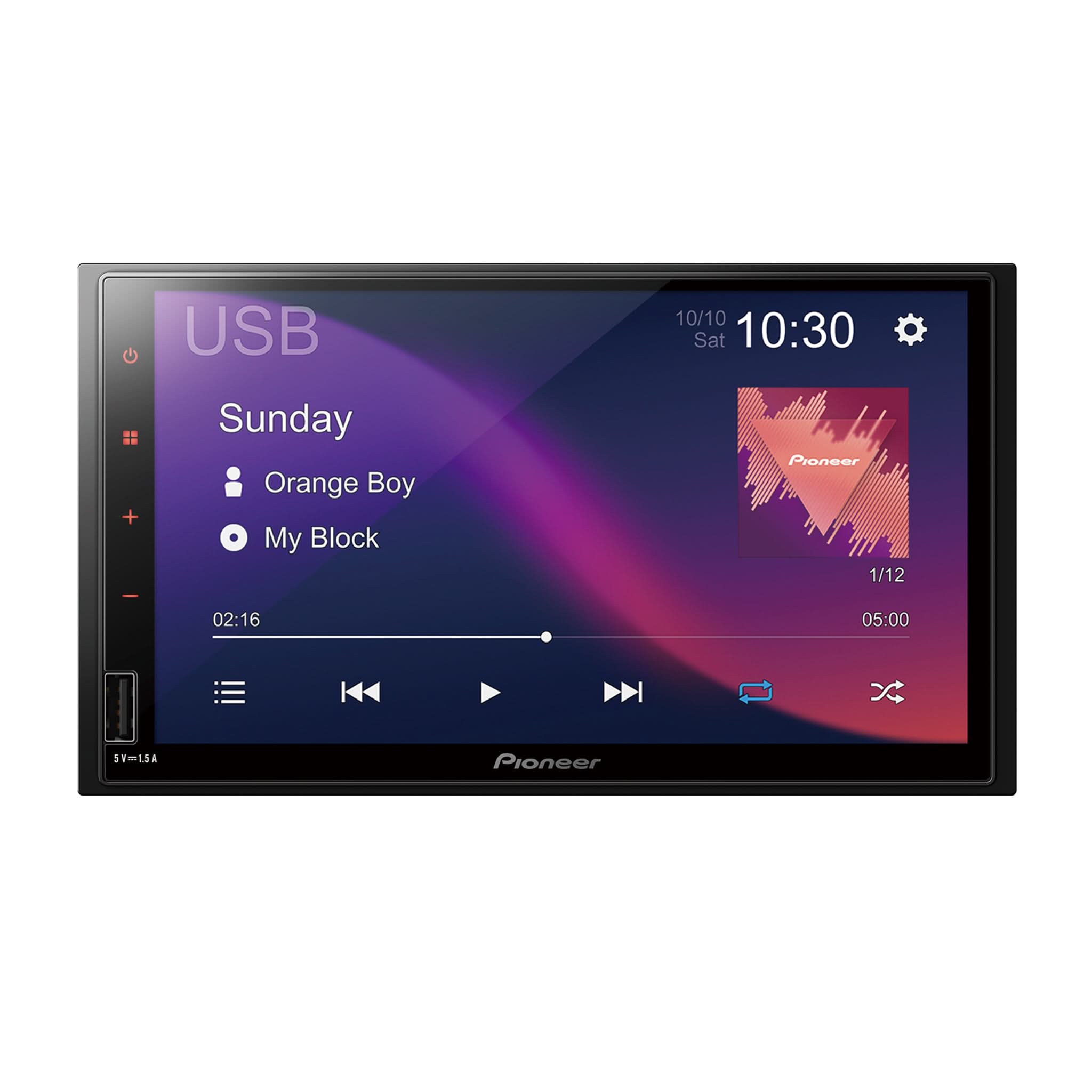

DMH-470EX 7" Double-DIN Touchscreen Multimedia Car Stereo Receiver

Display
Back Light : LED
Brightness Control : Yes
Device (Non-DIN/Modular Unit) : 2-DIN, Short Chassis
Monitor Mechanism : Fixed
Resolution : 1024 x 600
Screen Size/Aspect Ratio : 7"/16:9
Touch Screen : Capacitive

Product Performance
Continuous Power Output : 22 W x 4-Channel
Load Impedence Allowance : 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output : 50 W x 4-ch 4 ohm
Rca Preamp Outputs : 3-ch
Rca Preout Voltage : 2V
Rms Power Output (Cta-2006) : 14 W RMS x 4-ch 4 ohm

BlueTooth
Built-in Bluetooth® : Yes
Microphone Included : Included

Tuner
Best Station Memory : Yes
Presets : 18 FM 12 AM

Audio
Built-in Amplifier : MOSFET 50 W x 4
Crossover Standard Mode : HPF/LPF
Customizable Graphic Equalizer : 13 Band
DA Converter : 24 Bit
Digital Signal Processor : Built In
Easy EQ (EEQ) Preset Equalizer : Yes
Loudness : High/Mid/Low/Off
Speaker Output : 4-ch
Subwoofer Control : Yes

Integration
Weblink : 2.0

Expandability

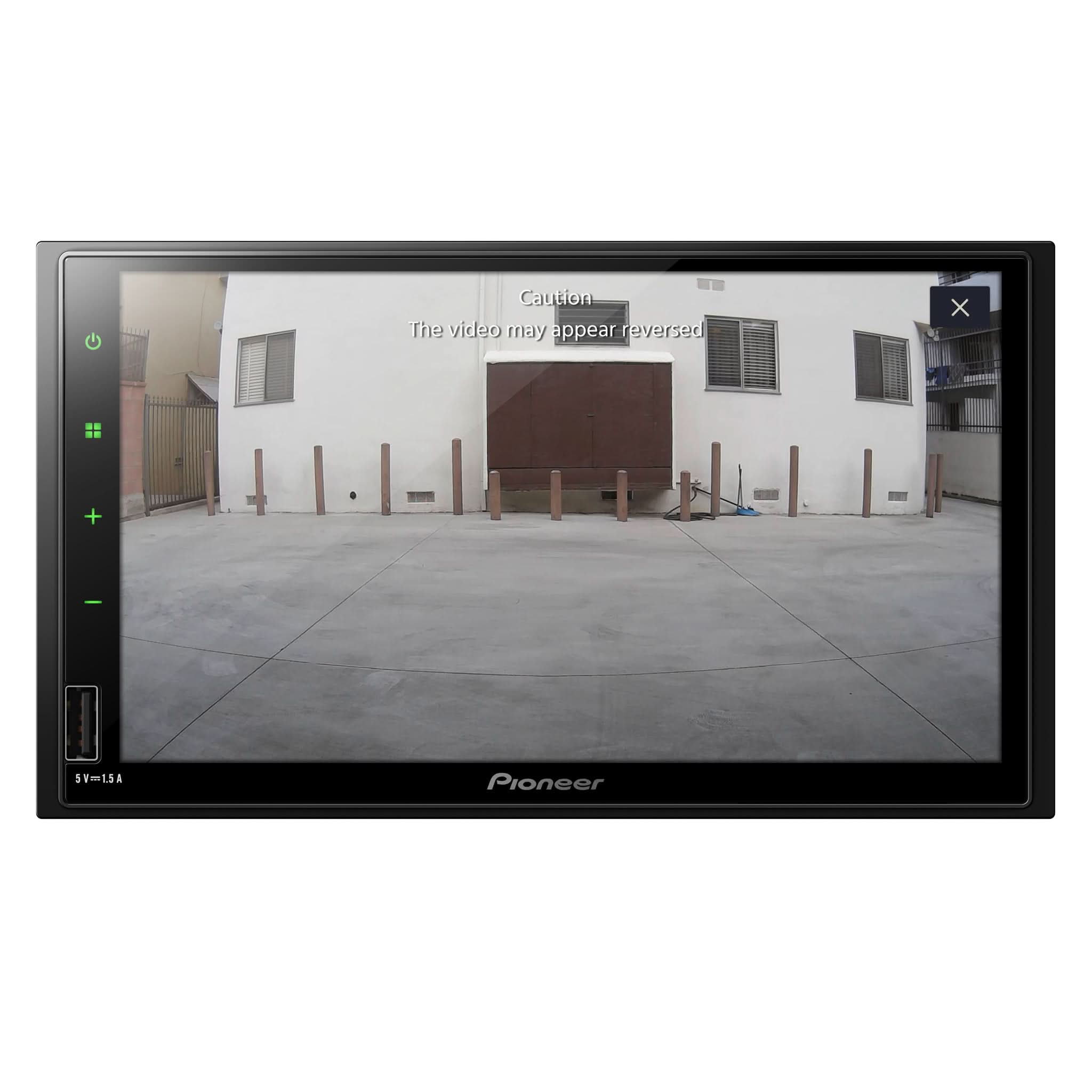

Audio Video Inputs : Input 1 - Backup Camera Dedicated, Input 2 - Audio/Video AUX (Minijack), Input 3 - 2nd Camera
Firmware upgradability : Yes
RCA-Video-Output : Yes
USB : Front Type-A (5V, 1.5 A)

General
Detachable Face Security : Fixed
Multi-Language Display : English, French, Spanish, Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately)~Yes
