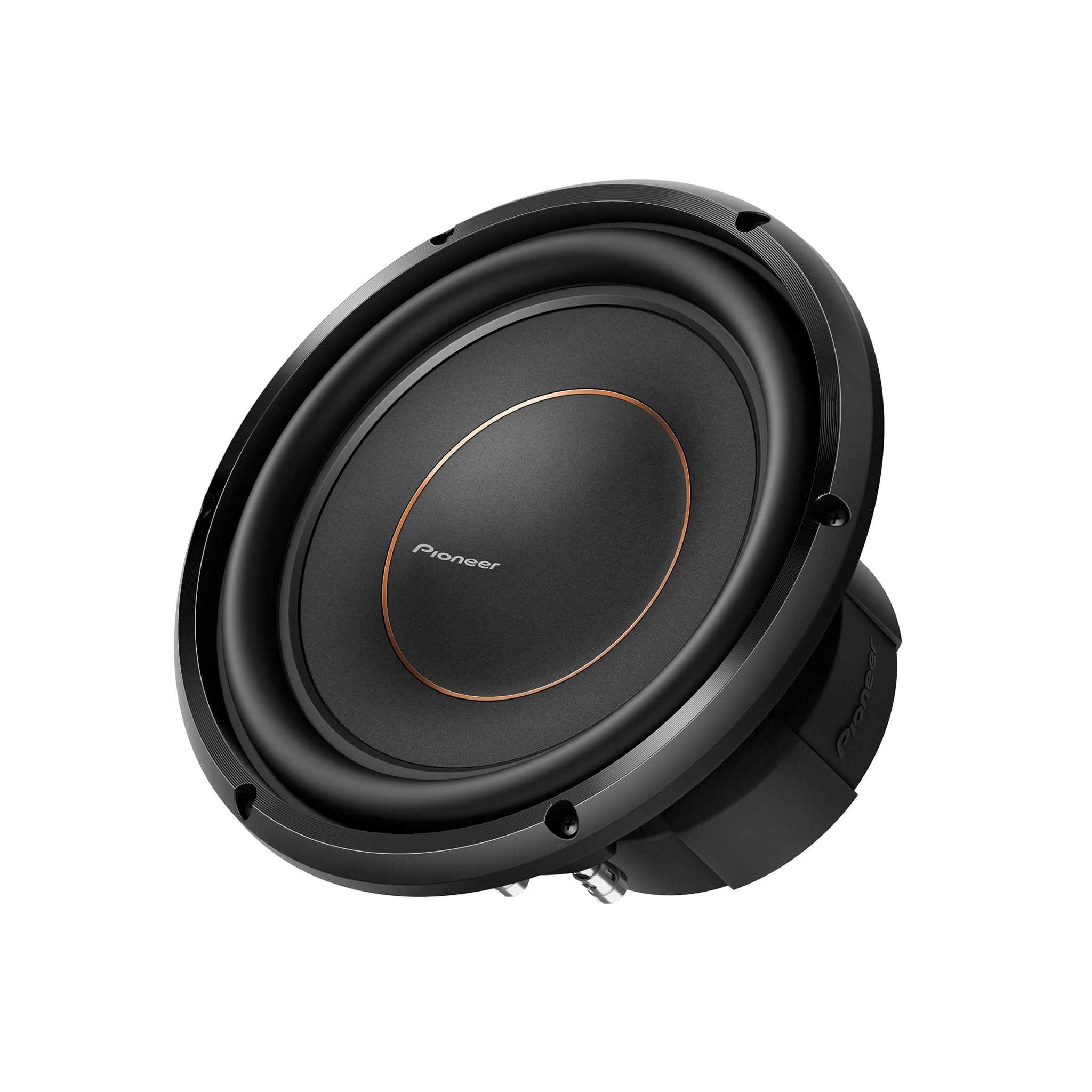

Pioneer_TS-D10D2_Front Image

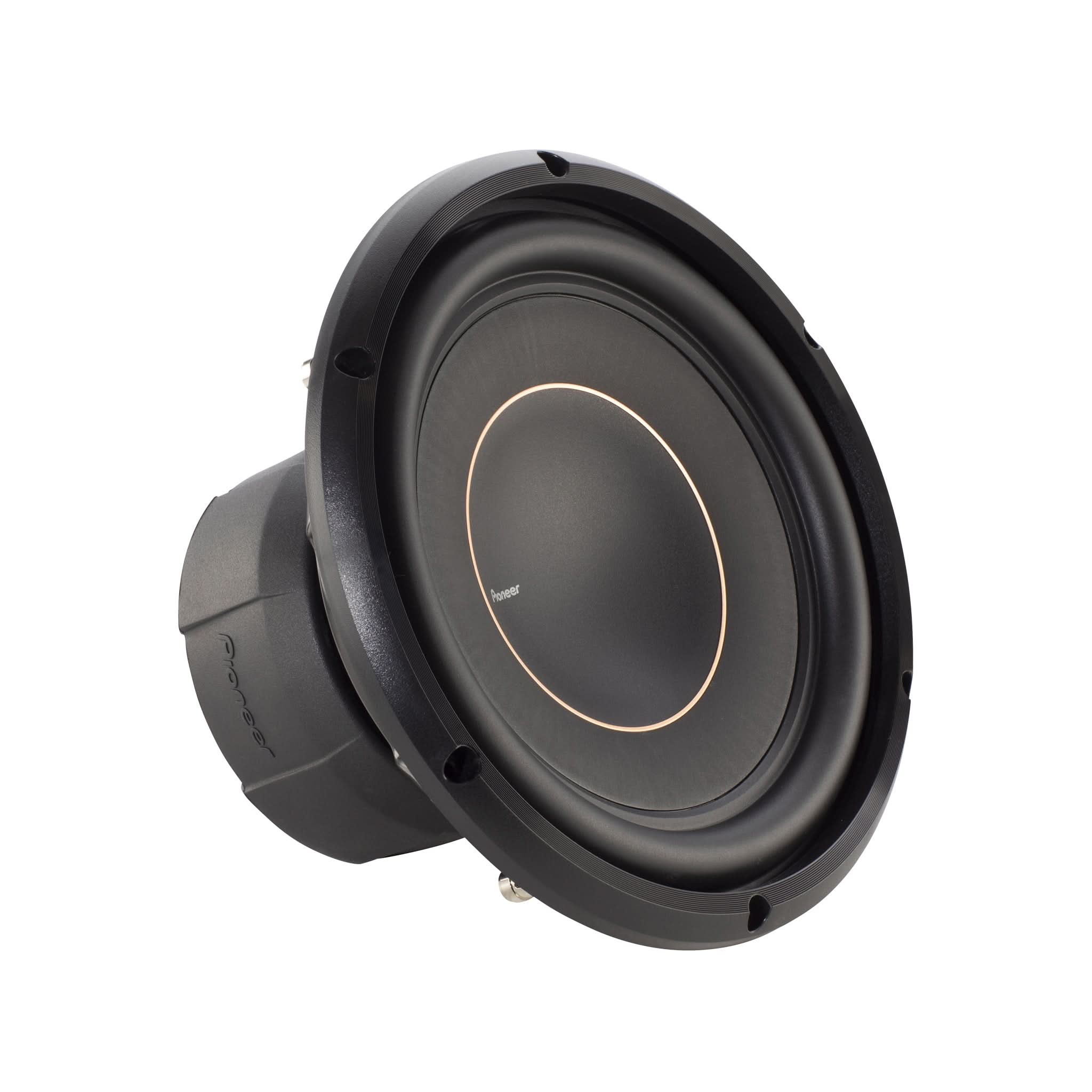

Pioneer_TS-D10D2_Right Angle Image
Pioneer_TS-D10D2_Left Angle Image

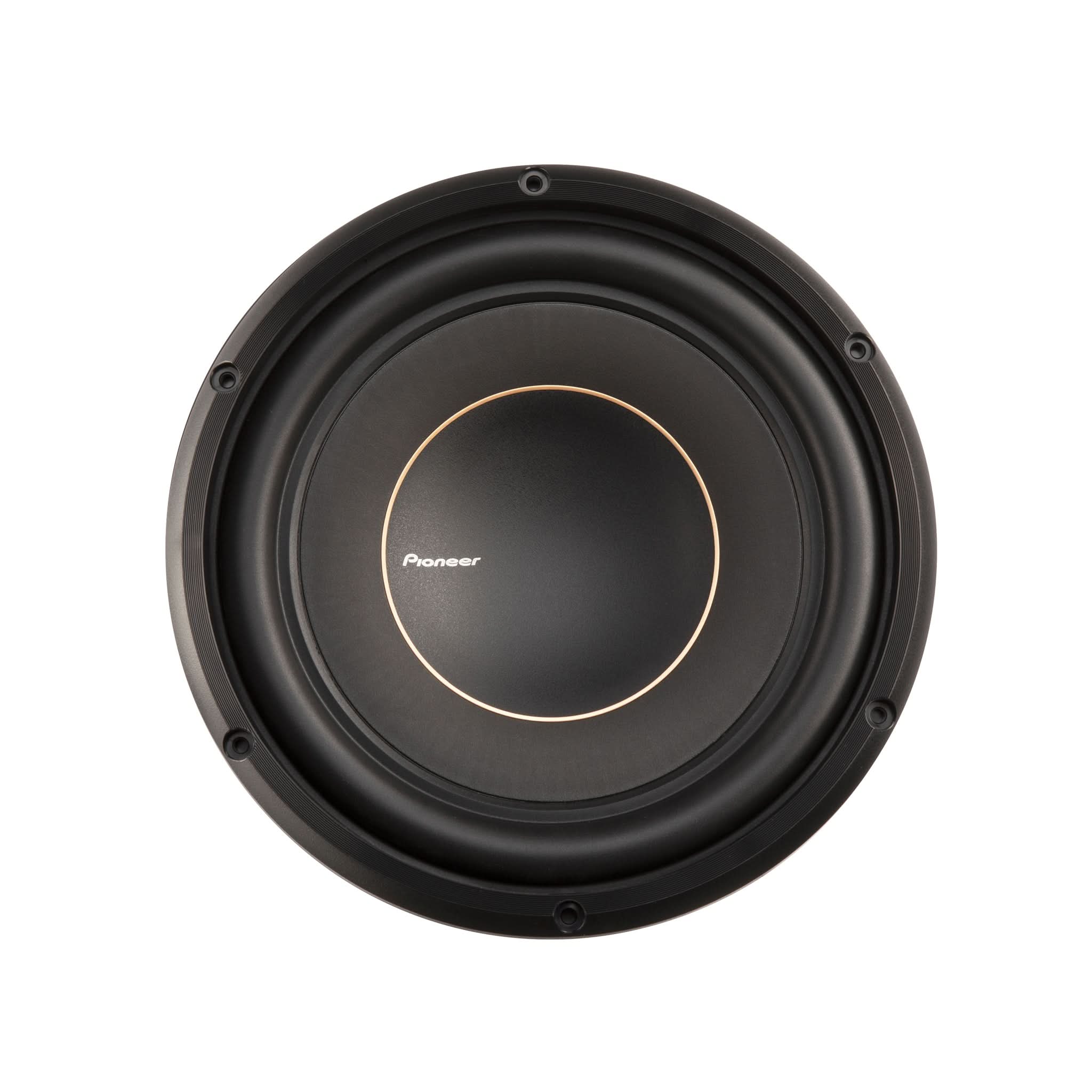

Pioneer_TS-D10D2_Center Image

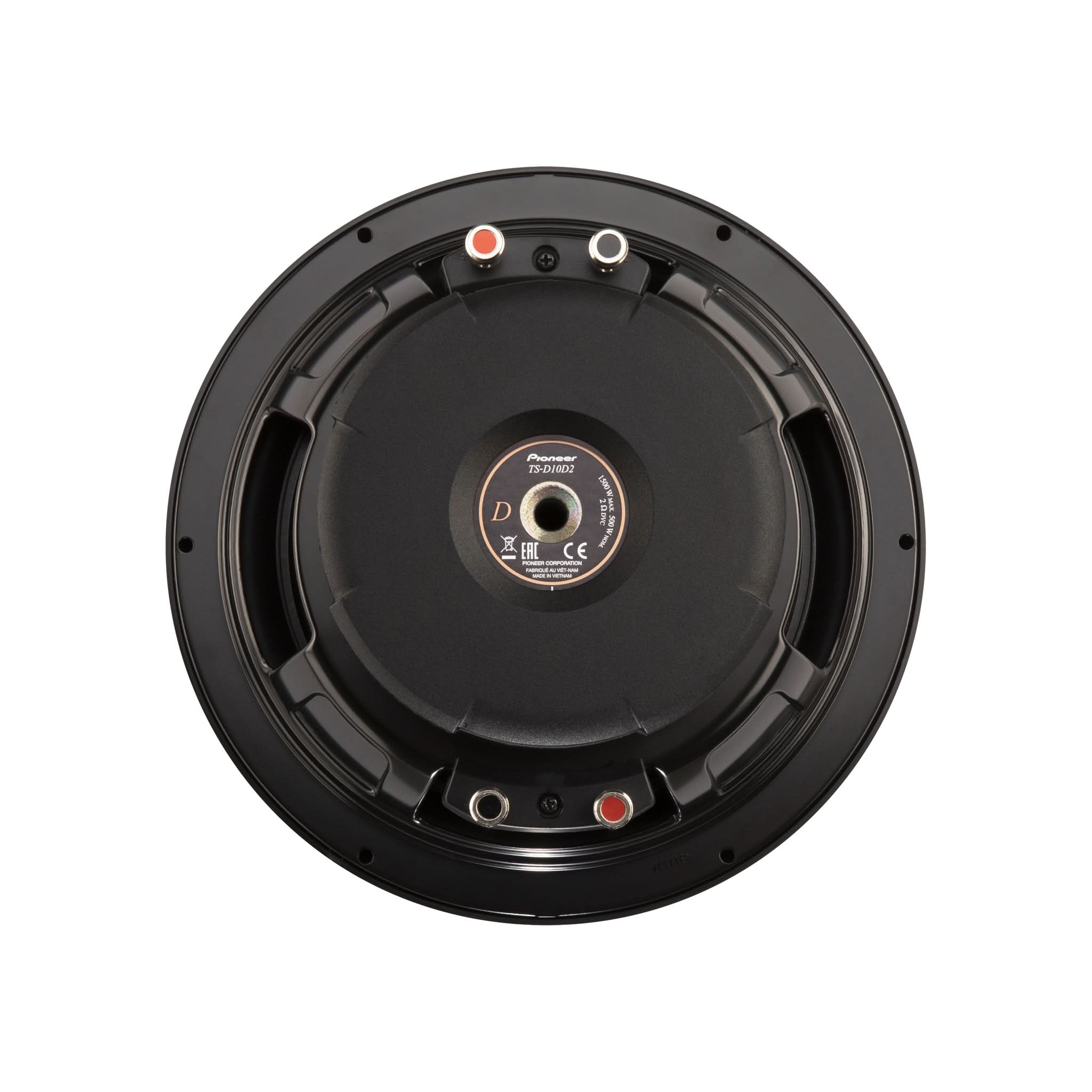

Pioneer_TS-D10D2_Back Image
Pioneer_TS-D10D2_Top Image
Pioneer subwoofer on a white background
Subwoofer on a white background
Black subwoofer with Pioneer logo on a white background

TS-D10D2 10" D-Series Subwoofer | Dual 2-Ohm Voice Coil | 1500W Max

Barcode : 884938374750
SKU : TS-D10D2

Features:

1500 Watts Max. Power / 500 Watts Nominal Power
10" Aramid Fiber Interlaced IMPP™ cone
Butyl Rubber Surround & Meta-Aramid fiber spider
Frequency range: 20 Hz to 6.6 kHz
Speaker Impedance: 2x 2 ohms
Speaker Efficiency: 74 dB (1W/1M)
Mounting depth: 5.5” (140mm)
Recommended Box volume : 0.8cu.ft. (vented) / 0.7cu.ft. (sealed)

Ask about TS-D10D2 10" D-Series Subwoofer | Dual 2-Ohm Voice Coil | 1500W Max

Product Details

The TS-D10D2 10" subwoofer can handle up to 500 W RMS, delivering impressive low-frequency levels. This subwoofer features an injection-molded polypropylene (IMPP™) cone infused with Aramid fibers for exceptional precision and strength. A butyl rubber surround supports the subwoofer during cone excursion, ensuring accurate, hard-hitting bass notes even at high volumes. When setting up your system, the dual 2Ω voice coils of this subwoofer provide more wiring options.

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 500
Frequency Response : 20 Hz to 6.6 kHz
Maximum Peak Power Handling - Watts : 1500
Nominal Impedance - Ohm : 2-Ohm Dual
Sensitivity (1W/1m) : 74dB
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 9", 23 cm
Equivalent Compliance (VAS) : 20.9 Liters, 0.73 Cu. Ft.
Free Air ResoNAnce (Fs) : 40
Linear Excursion (Xmax) : 3/8", 9.8 mm
Mounting Depth : 5-1/2"
Port Diameter : 2", 5 cm
Port Length : 5", 13 cm
Recommended Ported Box Internal volume : 19.8 Liters, 0.69 Cu. Ft.
Recommended Sealed Enclosure Volume : 19.8 Liters, 0.7 Cu Ft
Total Speaker "Q" (Qts) : 0.7
Woofer Dimensions : 10"
