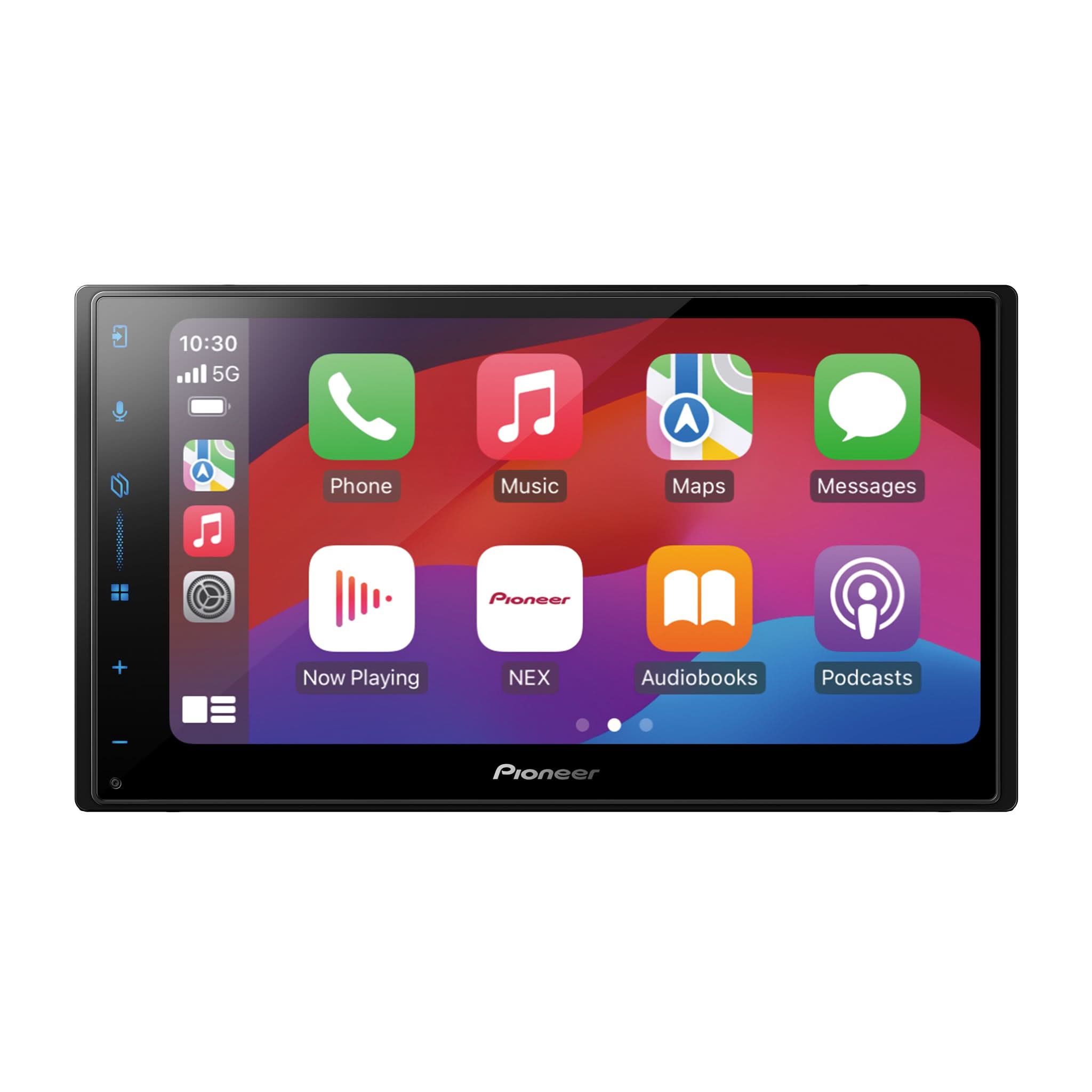

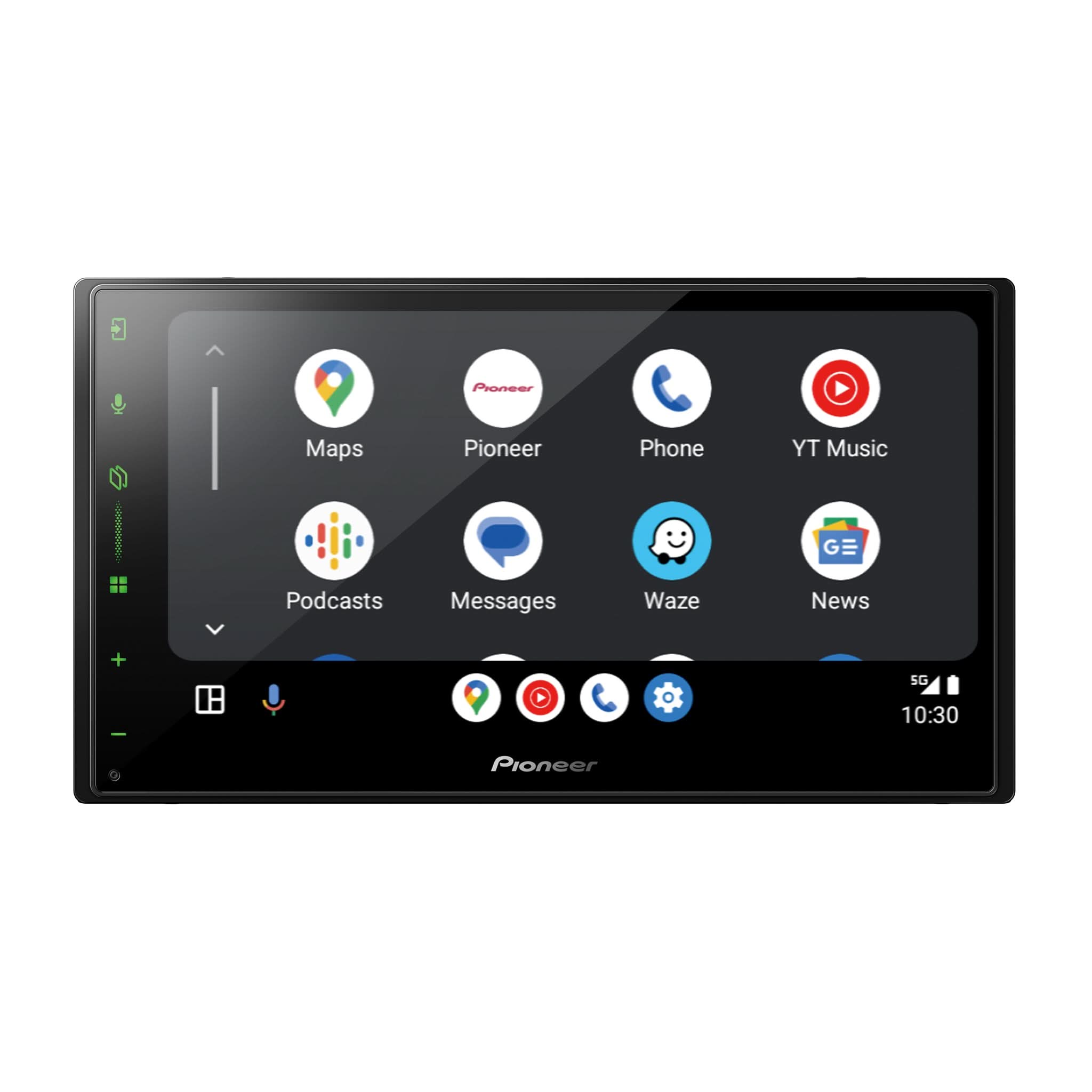

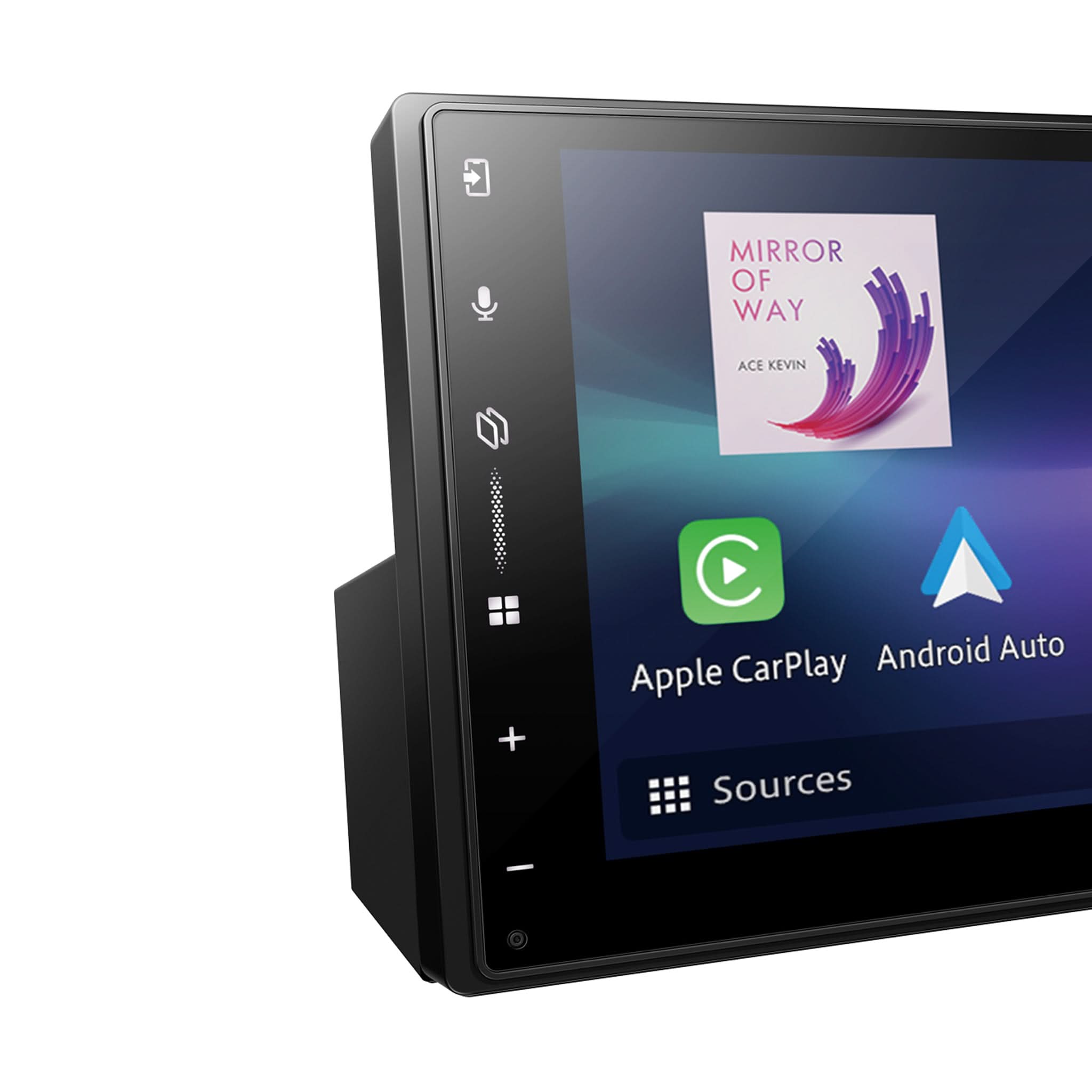

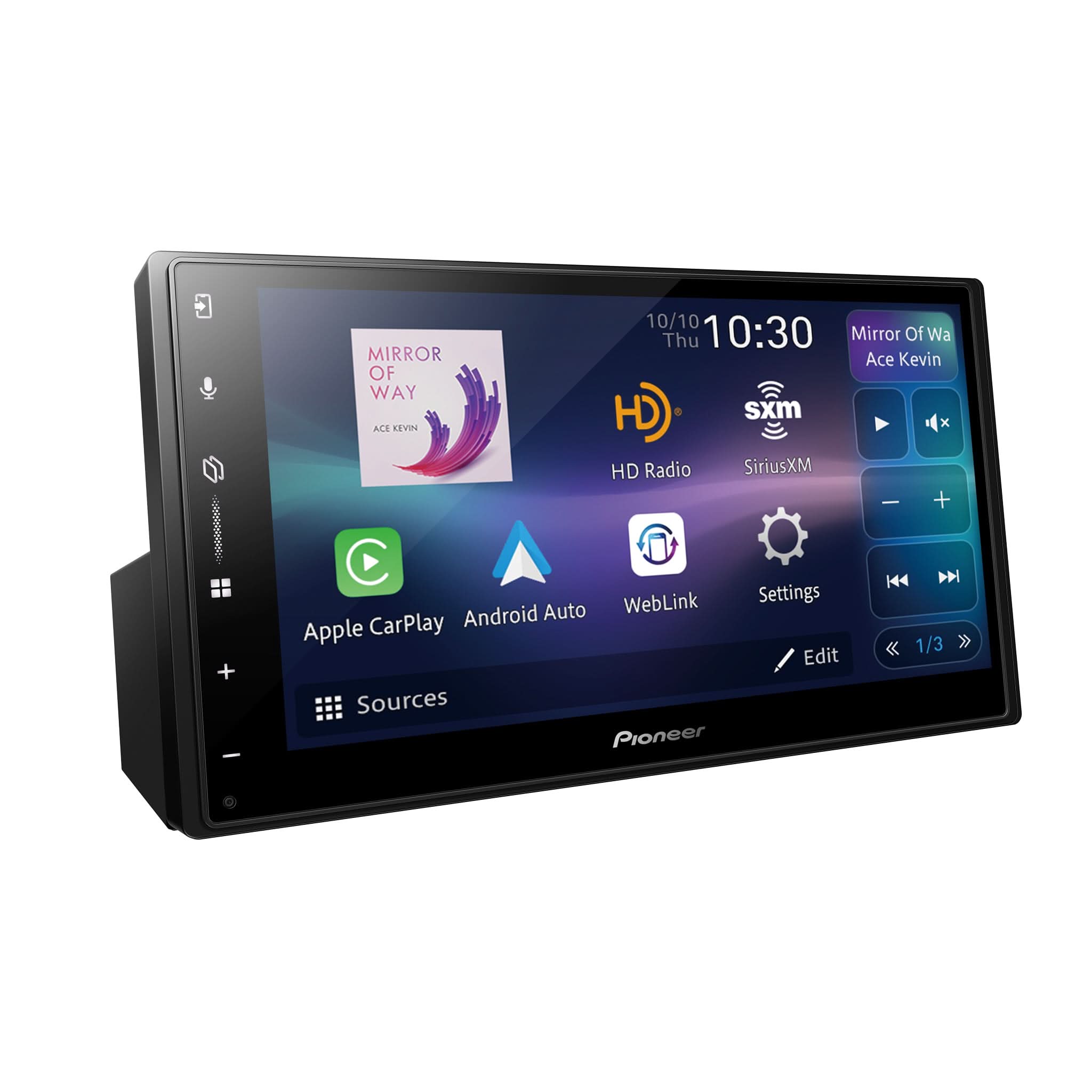

DMH-W3050NEX 6.8" Double-DIN Smart Auto Receiver Wireless Carplay

Display
Back Light : LED
Brightness Control : Yes
Color Customization : 5 key colors
Device (Non-DIN/Modular Unit) : 2-DIN L-Shaped Chassis
Dimmer~Automatic with vehicle illumination, Manual
Display Off Mode : Yes
Home Screen Customization : Yes
Monitor Mechanism : Fixed
Resolution : WVGA (800 x 480)
Screen Size/Aspect Ratio : 6.8"/16:9
Touch Screen : Capacitive

Product Performance
Continuous Power Output : 22 W x 4-Channel
Load Impedence Allowance : 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output : 50 W x 4-ch 4 ohm
RCA Preamp Outputs : 6-ch
RCA Preout Voltage : 4V
RMS Power Output (CTA-2006) : 14 W RMS x 4-ch 4 ohm

BlueTooth
Advanced Audio Distribution Profile (A2DP) : Yes
AVRCP : 1.6
Built-in Bluetooth® : Yes
Hands-Free : Yes
Microphone Included : Included
Phone Registation : 5-phone
Secure Simple Pairing (SSP) : Yes
Serial Port Profile (SPP) : Yes

Tuner
Best Station Memory : Yes
HD Radio™ : Built In
Local Seek tuning : Yes
Presets : 18 FM 12 AM
PS (Preset Scan) : Yes
RDS : Yes
SiriusXM-Ready™ (Tuner Sold Separately) : Yes

Audio
Audio Bass Boost : Yes
Balance : Yes
Built-in Amplifier : MOSFET 50 W x 4
Crossover Network Mode : HPF/Band Pass/LPF
Crossover Standard Mode : HPF/LPF
Customizable Graphic Equalizer : 13 Band
DA Converter : 24 Bit
Digital Signal Processor : Built In
Easy EQ (EEQ) Preset Equalizer : Yes
Listening Position Selector : Yes
Loudness : High/Mid/Low/Off
Speaker Output : 4-ch
Spectrum Analyzer : false
Subwoofer Control : Yes

Integration
Amazon Alexa : Paired with Pioneer Vozsis
Android Auto™ : Wireless Connection or Wired USB Connection
Apple® CarPlay : Wireless Connection or Wired USB Connection
Mirroring : USB-Android Phone Only
Mobile Operating System : Android - Wired/Wireless, Apple iOS - Wired/Wireless
Pandora® : With Apple CarPlay or Android Auto
Pioneer App Compatibility : Vozsis Android, Vozsis iPhone
Siri® Eyes Free (VR) (Internet Required) : iPhone Only
Spotify : With Apple CarPlay or Android Auto
Voice Control : Yes
Weblink : Version 2.0
Wifi : Tethering, WiFi Hotspot

Expandability
Audio Video Inputs : Input 1 - Backup Camera Dedicated, Audio/Video AUX (Minijack)
Firmware upgradability : Yes
OEM Integration : iDatalink Maestro RR, iDatalink Maestro RR2
Parking Assist Lines : Yes
USB : Single Rear Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone® : 5s and newer

General
Detachable Face Security : Fixed
Multi-Language Display : English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser : USB
Steering Wheel Control Ready (Adapter Sold Separately) : Yes
