DMH-470EX

Name: DMH-470EX
Brand: Pioneer Electronics (USA) Inc.
SKU: DMH-470EX
Price: 251.0 USD
Availability: InStock

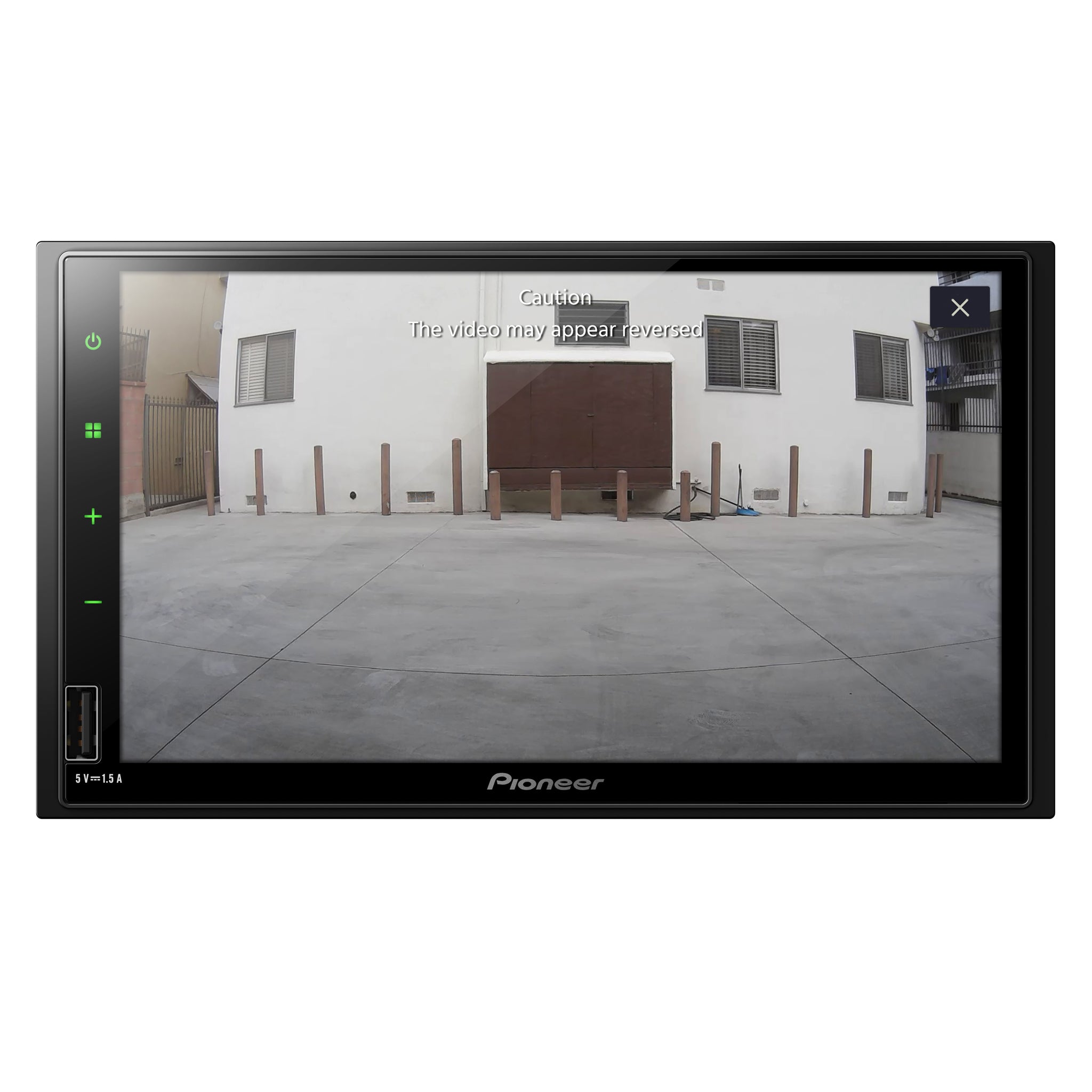

7” WSVGA Capacitive Touchscreen Digital Media Receiver with WebLink® and Bluetooth®. Backup camera ready.

$251.00

$278.00

Does it fit your car?

Features

Standard double-DIN size fits most dashboards

7” WSVGA Capacitive Touchscreen with clear visuals and easy control

WebLink® connects your favorite apps like navigation and music

Bluetooth® for hands-free calling and music streaming

Supports backup and second camera for added safety

Overview
Specs
Knowledgebase
Manuals/Warranty

Make every drive more enjoyable with the DMH-470EX. Its 7" touchscreen puts music, navigation, and your favorite apps at your fingertips. Stay connected with Bluetooth® for hands-free calls and streaming, and drive with confidence using backup camera support.

Connect Your Favorite Apps with WebLink®

Enjoy easy access to apps like Waze for navigation and YouTube for entertainment right on your car’s screen. WebLink® uses a simple wired connection to mirror your smartphone, so you can stay connected without distractions.

Bluetooth® for Hands-Free Calling and Music

Stay connected safely while driving. Bluetooth® lets you make hands-free calls and stream music wirelessly from your phone. Includes an external microphone for clear conversations, even in noisy environments.

High-Quality Audio with FLAC Support

Experience premium sound quality with FLAC playback. Enjoy rich, detailed audio that brings out every note, so your music sounds exactly as the artist intended.

PRODUCT PERFORMANCE
Continuous Power Output 22 W x 4-Channel	Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm	Rca Preamp Outputs 3-ch
Rca Preout Voltage 2V	Rms Power Output (Cta-2006) 14 W RMS x 4-ch 4 ohm

PRODUCT PERFORMANCE
Continuous Power Output 22 W x 4-Channel
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output 50 W x 4-ch 4 ohm
Rca Preamp Outputs 3-ch
Rca Preout Voltage 2V
Rms Power Output (Cta-2006) 14 W RMS x 4-ch 4 ohm

GENERAL
Detachable Face Security Fixed	Multi-Language Display English, French, Spanish, Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately) Yes

GENERAL
Detachable Face Security Fixed
Multi-Language Display English, French, Spanish, Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately) Yes

DISPLAY
Back Light LED	Brightness Control Yes
Device (Non-DIN/Modular Unit) 2-DIN, Short Chassis	Monitor Mechanism Fixed
Resolution 1024 x 600	Screen Size/Aspect Ratio 7"/16:9
Touch Screen Capacitive

DISPLAY
Back Light LED
Brightness Control Yes
Device (Non-DIN/Modular Unit) 2-DIN, Short Chassis
Monitor Mechanism Fixed
Resolution 1024 x 600
Screen Size/Aspect Ratio 7"/16:9
Touch Screen Capacitive

BLUETOOTH
Built-in Bluetooth® Yes	Microphone Included Included

BLUETOOTH
Built-in Bluetooth® Yes
Microphone Included Included

TUNER
Best Station Memory Yes	Presets 18 FM 12 AM

TUNER
Best Station Memory Yes
Presets 18 FM 12 AM

INTEGRATION
Weblink 2.0

INTEGRATION
Weblink 2.0

DIGITAL MEDIA PLAYBACK
Audio Playback via USB WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)	Audio Video Playback via USB H.264, H.263, .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts
Image Display Via USB BMP, JPEG, PNG

DIGITAL MEDIA PLAYBACK
Audio Playback via USB WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB H.264, H.263, .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts
Image Display Via USB BMP, JPEG, PNG

AUDIO
Built-in Amplifier MOSFET 50 W x 4	Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band	DA Converter 24 Bit
Digital Signal Processor Built In	Easy EQ (EEQ) Preset Equalizer Yes
Loudness High/Mid/Low/Off	Speaker Output 4-ch
Subwoofer Control Yes

AUDIO
Built-in Amplifier MOSFET 50 W x 4
Crossover Standard Mode HPF/LPF
Customizable Graphic Equalizer 13 Band
DA Converter 24 Bit
Digital Signal Processor Built In
Easy EQ (EEQ) Preset Equalizer Yes
Loudness High/Mid/Low/Off
Speaker Output 4-ch
Subwoofer Control Yes

EXPANDABILITY
Audio Video Inputs Input 1 - Backup Camera Dedicated, Input 2 - Audio/Video AUX (Minijack), Input 3 - 2nd Camera	Firmware upgradability Yes
RCA-Video-Output Yes	USB Front Type-A (5V, 1.5 A)

EXPANDABILITY
Audio Video Inputs Input 1 - Backup Camera Dedicated, Input 2 - Audio/Video AUX (Minijack), Input 3 - 2nd Camera
Firmware upgradability Yes
RCA-Video-Output Yes
USB Front Type-A (5V, 1.5 A)
