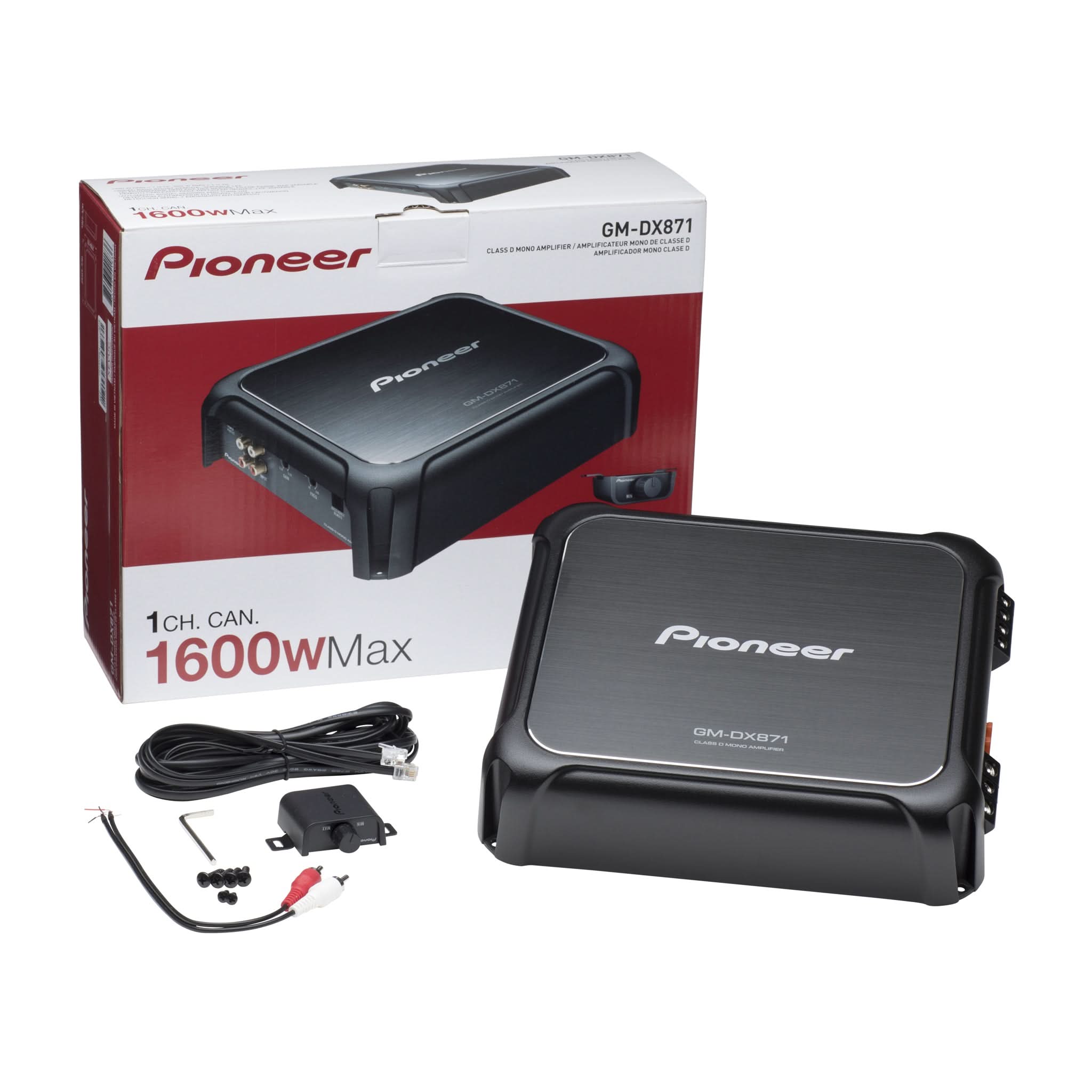

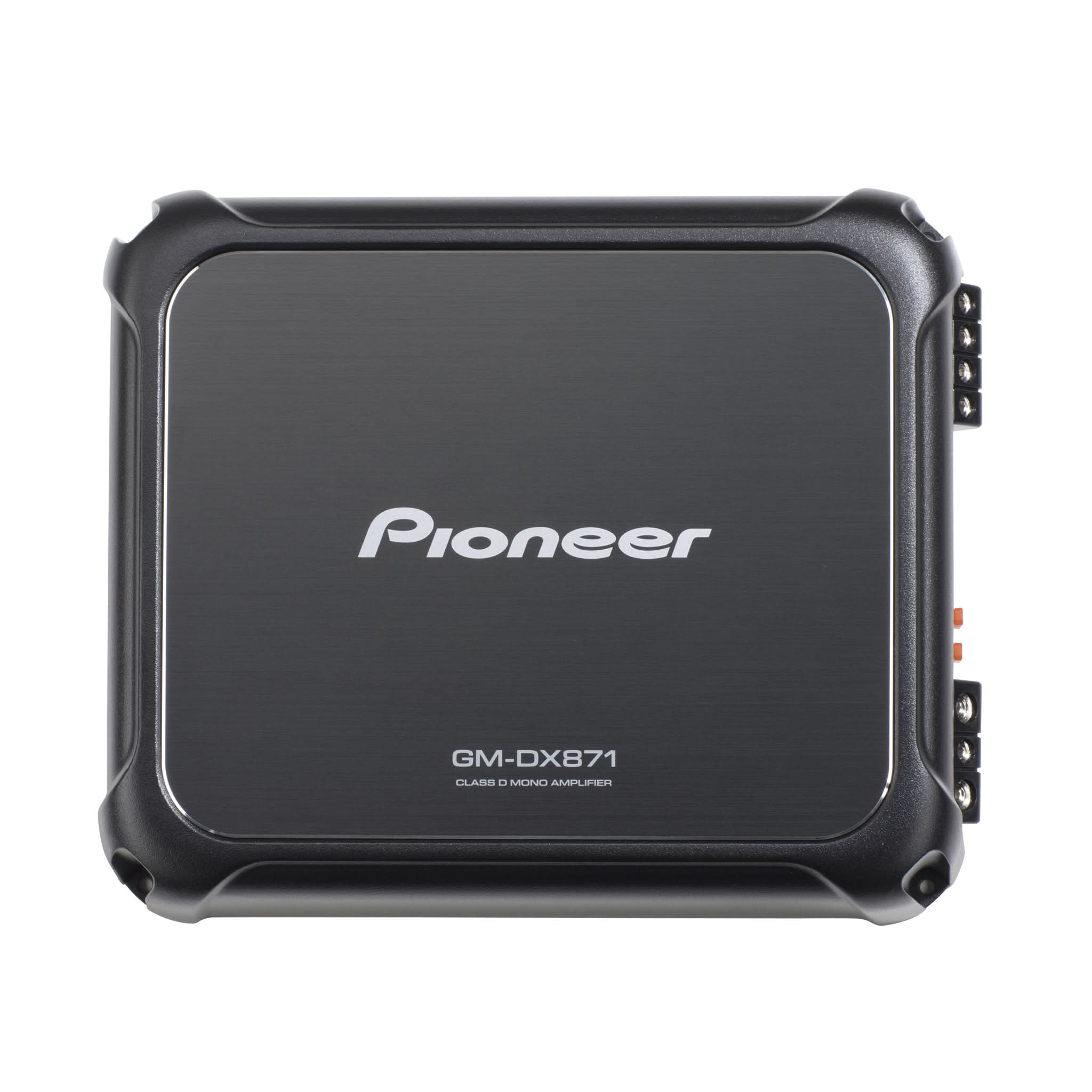

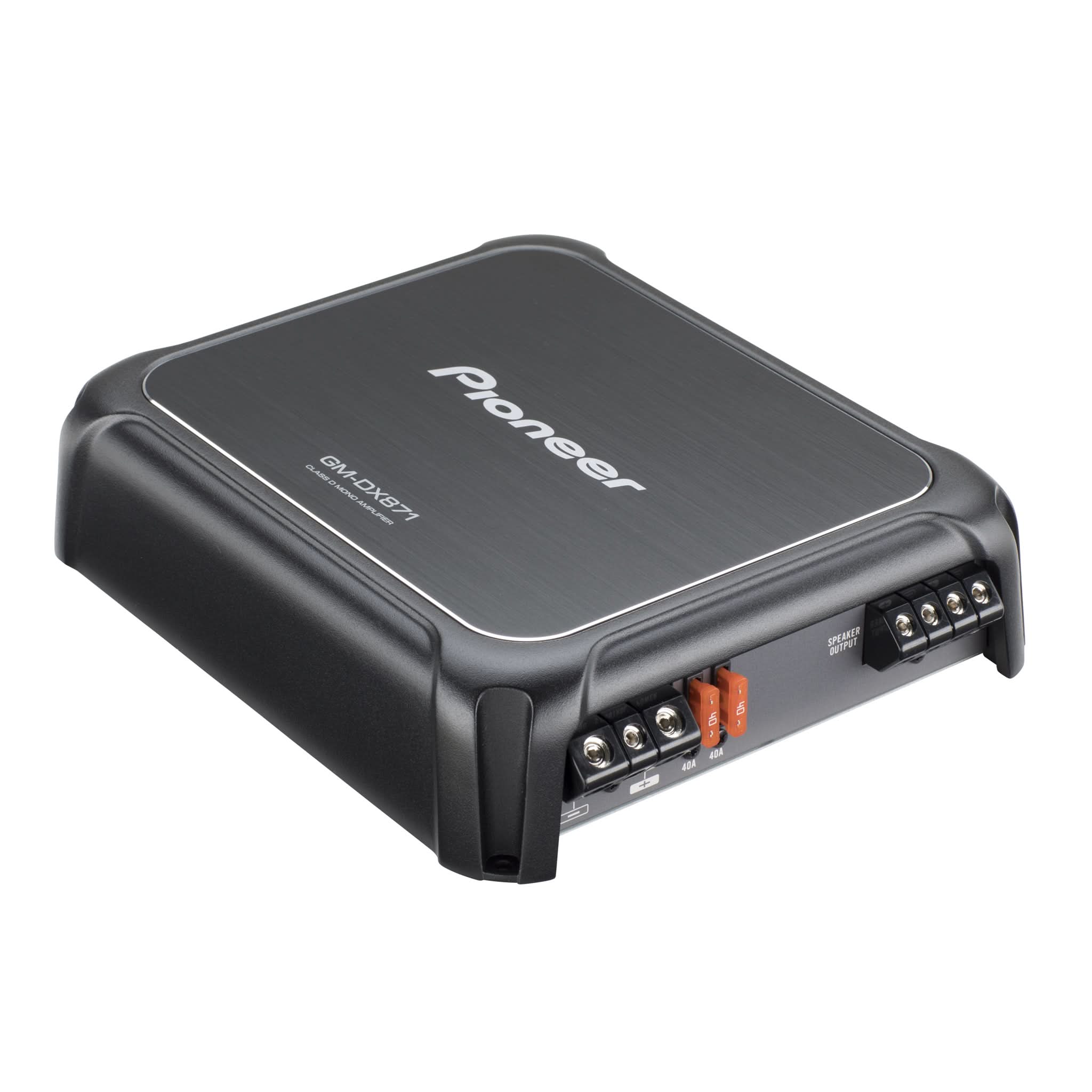

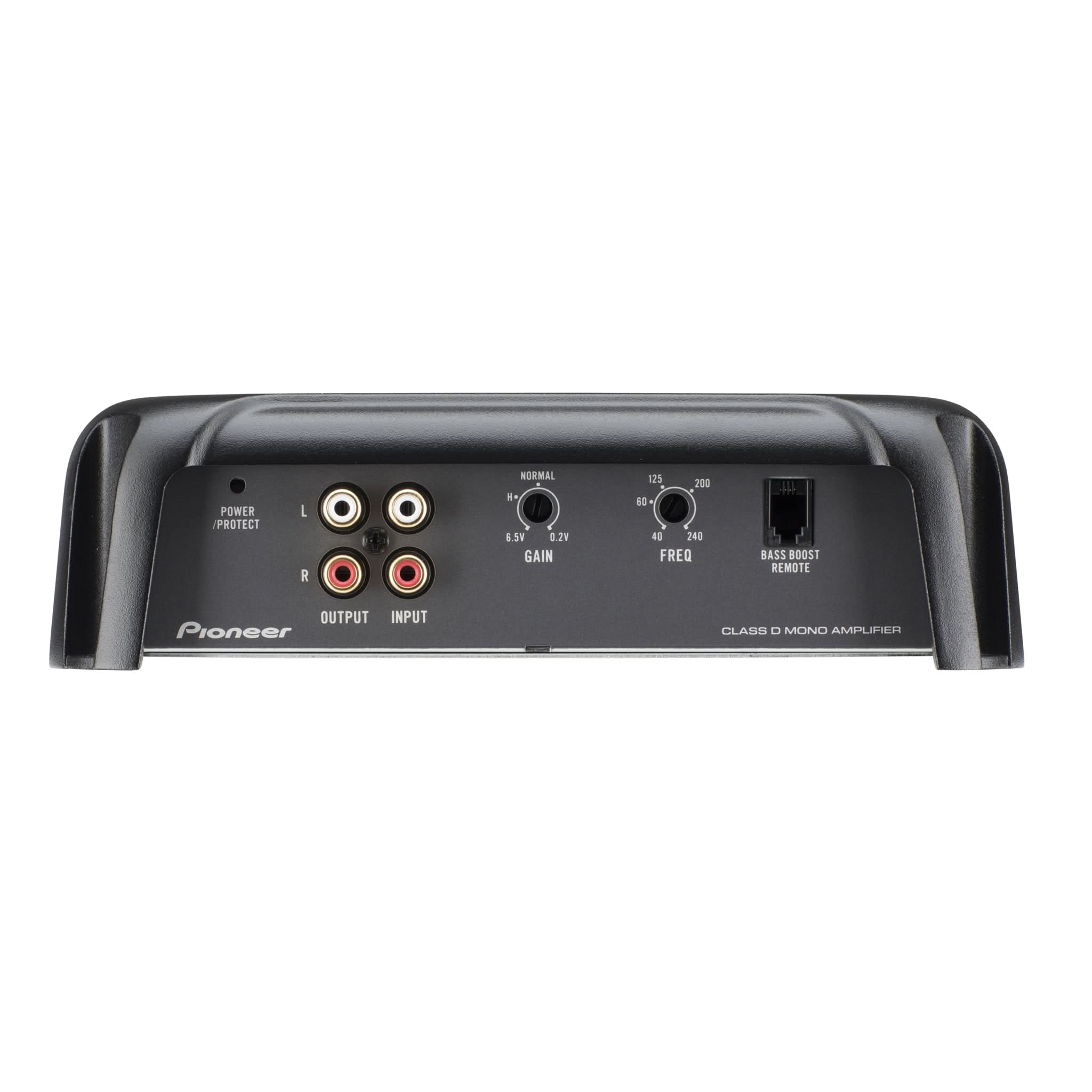

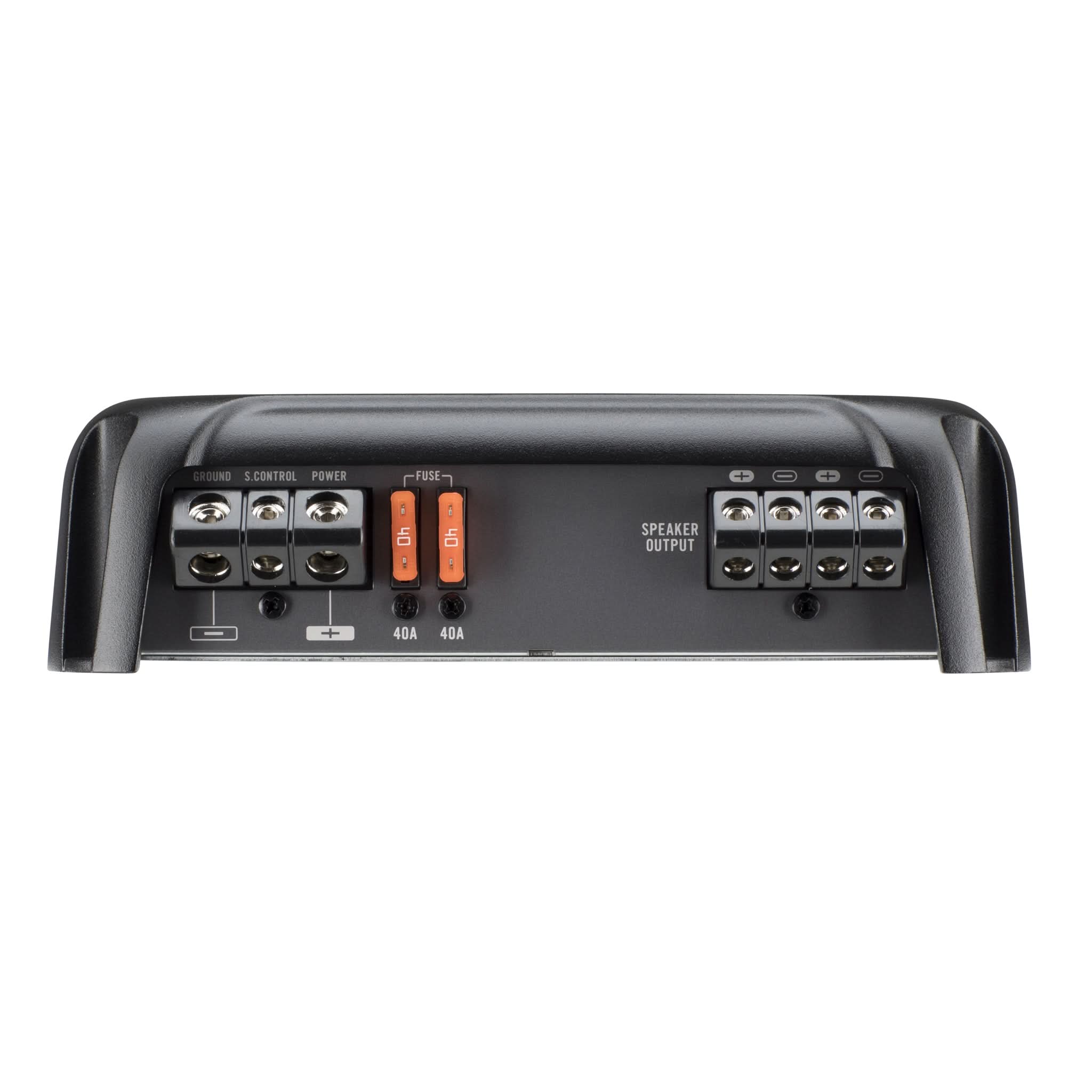

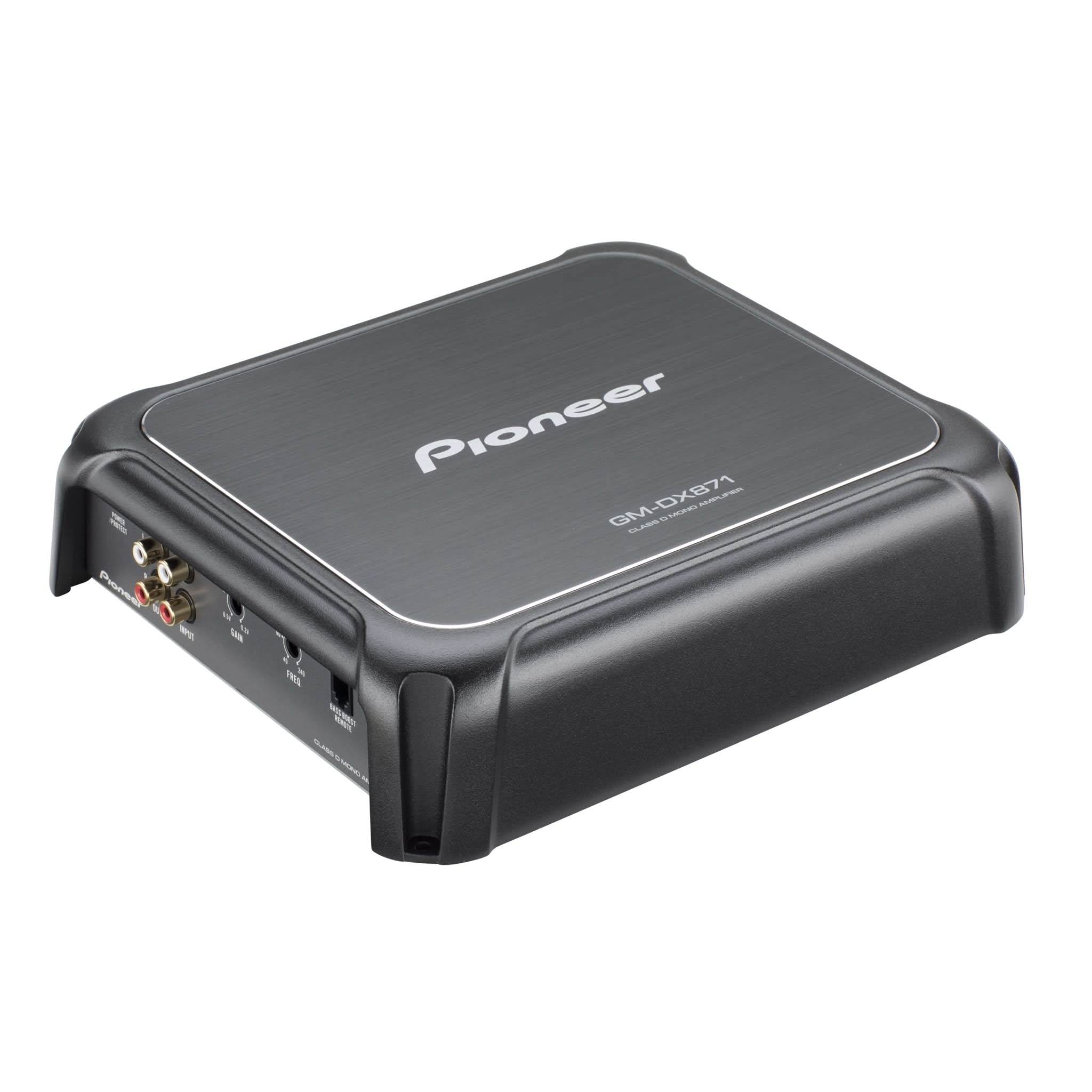

GM-DX871 1600W Class-D Mono Subwoofer Amplifier | Compact Design

Barcode : 884938421836
SKU : GM-DX871

Features:

800W x 1 RMS @ 1 ohm (1%THD)
500W x 1 RMS @ 2 ohms (1%THD)
300W x 1 RMS @ 4 ohms (1%THD)
Variable Low-Pass Filters
Gold-plated RCA Terminals
Wired Bass Remote included

Ask about GM-DX871 1600W Class-D Mono Subwoofer Amplifier | Compact Design

Product Details

The GM-DX871 is a 1-channel subwoofer amplifier that can deliver up to 800 watts RMS to your subwoofer, providing powerful bass with a strong and heavy beat. CTA-2006 compliant, this highly efficient Class D amplifier offers impressive, high-quality power in a compact chassis. The speaker-level inputs allow you to install this amp in a factory system without RCA connections. The built-in low-pass filter lets you optimize the sound for your vehicle's interior. Additionally, a wired bass control remote enables you to easily adjust the amount of bass from the subwoofer output. The GM-DX871 amplifier uses high-current, high-grade electronic components and gold-plated RCA connections to ensure maximum performance.

Specs

Product Performance
Allowable Load Impedance : 1 ohm to 8 ohm allowable
Avg Current Consumption (amps x #ch) : 2.4 A x 1-Channel - 4 Ohm, 5.7 A x 1-Channel - 1 Ohm, 3.6 A x 1-Channel - 2 Ohm
Bass Boost : 50 Hz - Frequency
Continuous-Power-Output : 300 W RMS x 1-Channel - 4 Ohm, 800 W RMS x 1-Channel - 1 Ohm, 500 W RMS x 1-Channel - 2 Ohm
Crossover Network Subwoofer Channel : LPF - 40 Hz-240 Hz
Crossover Network Subwoofer Slope : -12dB/oct
Frequency Response Channel : 10 Hz to 240 Hz (+0dB,-3dB) A/B Ch
Frequency Response - Sub Channel : 10 Hz to 240 Hz
Fuse Rating : 40 A x 2
Maximum Power Output : 600 W x 1-Channel (4 Ohm), 1600 W x 1-Channel (1 ohm)
RCA Inputs : 1-Channel (Mono)
RCA Preamp Outputs : 2-ch
Speaker Line input Sensor : Yes
THD-A/B/C Channel : =/< 1% ( 20 Hz to 240 Hz)

Manuals/Warranty

Looking for manuals, firmware updates, and more information? Click Here
