Name: TS-WX1210A
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-WX1210A
Price: 379.0 USD
Availability: InStock

Pioneer_TS-WX1210A_Whats in the box Image

TS-WX1210A

$379.00

Find out if this product fits your vehicle

12" - 1300 W Max Power, Sealed Design - Active Pre-loaded Enclosure Subwoofer

Built-in 1300 W Max Class D amplifier

Pre-loaded 12" Subwoofer with Urethane Surround and Powerful Motor Structure

Sealed Enclosure Design maximizes system linearity and deep bass output while increasing installation flexibility and vehicle applications

Included Wired Remote with Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)

Quick disconnect power and signal cables for easy installation or removal

Overview
Specs
Knowledgebase
Manuals/Warranty

The TS-WX1210A is a powerful sealed pre-loaded subwoofer enclosure. Featuring a built-in high bandwidth, high output and low distortion 1300 W Max Class D amplifier mated to a 12" subwoofer with a urethane surround and oversized magnet structure specifically optimized for use sealed enclosures. User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel. The TS-WX1210A can be installed with the subwoofer firing rear or front for optimal bass tuning.

Installation Flexibility

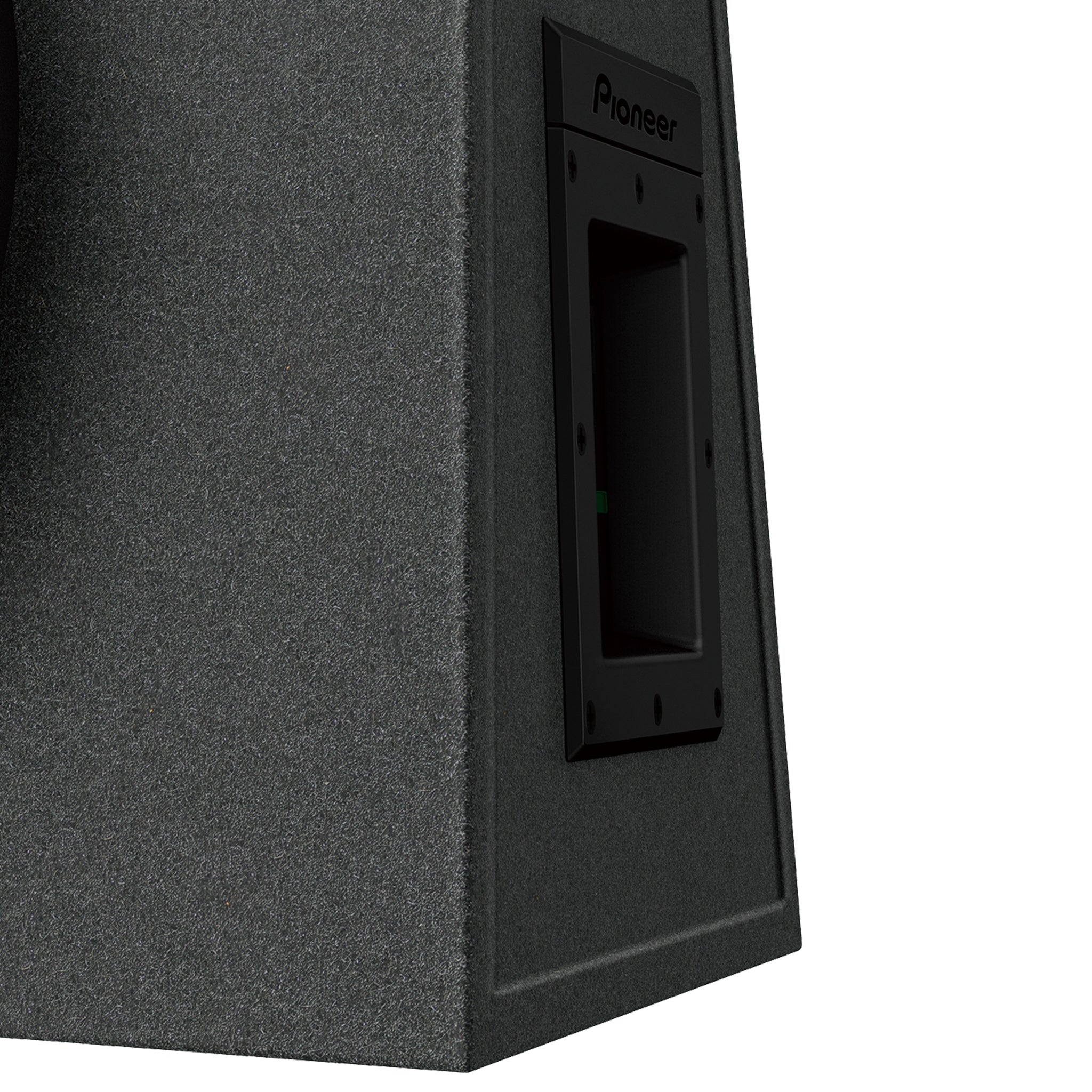

The innovative trapezoid shape of the enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. Can be installed freely in the cabin or trunk space and re-positioned with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface.

Powerful Amplified Subwoofer

Built with high bandwidth, high output, and low distortion 350-watt Class D amplifier mated to high sensitivity woofers specifically optimized for use in small, sealed enclosures.

Flexible Sound Adjustment

User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

CarSoundfit

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

PRODUCT PERFORMANCE
Amp - Max Current Consumption 13 A	Amp - Power Source DC 14.4V
Bass Boost Yes	Bass Boost - Frequency 40Hz to 100Hz
Bass Boost Knob - Wired Yes	Bass Boost - Level 0 to +12 dB
Continuous Power handling (RMS) - Watts 350 W	Frequency Response 20 Hz to 125 Hz
Input Level @Gain Max 2 V to 6 V	Maximum Peak Power Handling - Watts 1300 W
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 114 dB
Speaker Line input Sensor 2V+2V/5kOhm	System-Type Powered

PRODUCT PERFORMANCE
Amp - Max Current Consumption 13 A
Amp - Power Source DC 14.4V
Bass Boost Yes
Bass Boost - Frequency 40Hz to 100Hz
Bass Boost Knob - Wired Yes
Bass Boost - Level 0 to +12 dB
Continuous Power handling (RMS) - Watts 350 W
Frequency Response 20 Hz to 125 Hz
Input Level @Gain Max 2 V to 6 V
Maximum Peak Power Handling - Watts 1300 W
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 114 dB
Speaker Line input Sensor 2V+2V/5kOhm
System-Type Powered

FEATURES
Amp - Grounding Negative	Built In Amp Yes
CarSoundFit Yes	Subwoofer Grille Fully Covered Steel Mesh

FEATURES
Amp - Grounding Negative
Built In Amp Yes
CarSoundFit Yes
Subwoofer Grille Fully Covered Steel Mesh

MATERIALS
Basket Material Stamped Metal	Center Cap Material Polypropylene
Cone Material Cellulose fiber	Damper Aramid Fiber
Installation Ring ABS	Magnet Material Ferrite
Magnet Weight 33.5 oz	Surround Material Urethane
Surround Type Rolled	Voice Coil Bobbin Polyimide
Voice Coil Type Single Voice Coil	Voice Coil wire Copper

MATERIALS
Basket Material Stamped Metal
Center Cap Material Polypropylene
Cone Material Cellulose fiber
Damper Aramid Fiber
Installation Ring ABS
Magnet Material Ferrite
Magnet Weight 33.5 oz
Surround Material Urethane
Surround Type Rolled
Voice Coil Bobbin Polyimide
Voice Coil Type Single Voice Coil
Voice Coil wire Copper
