Overview
The Pioneer Reference for Open Show series of speakers are designed specifically for those looking to produce serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. Series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment. The TS-W3020PRO 12" High Efficiency Subwoofer features 3500 W Max Power (1800 W Nominal) handling, an optimally blended pulp woofer cone, and a motor and basket structure designed for high sensitivity and high power handling. TS-W3020PRO sold individually.

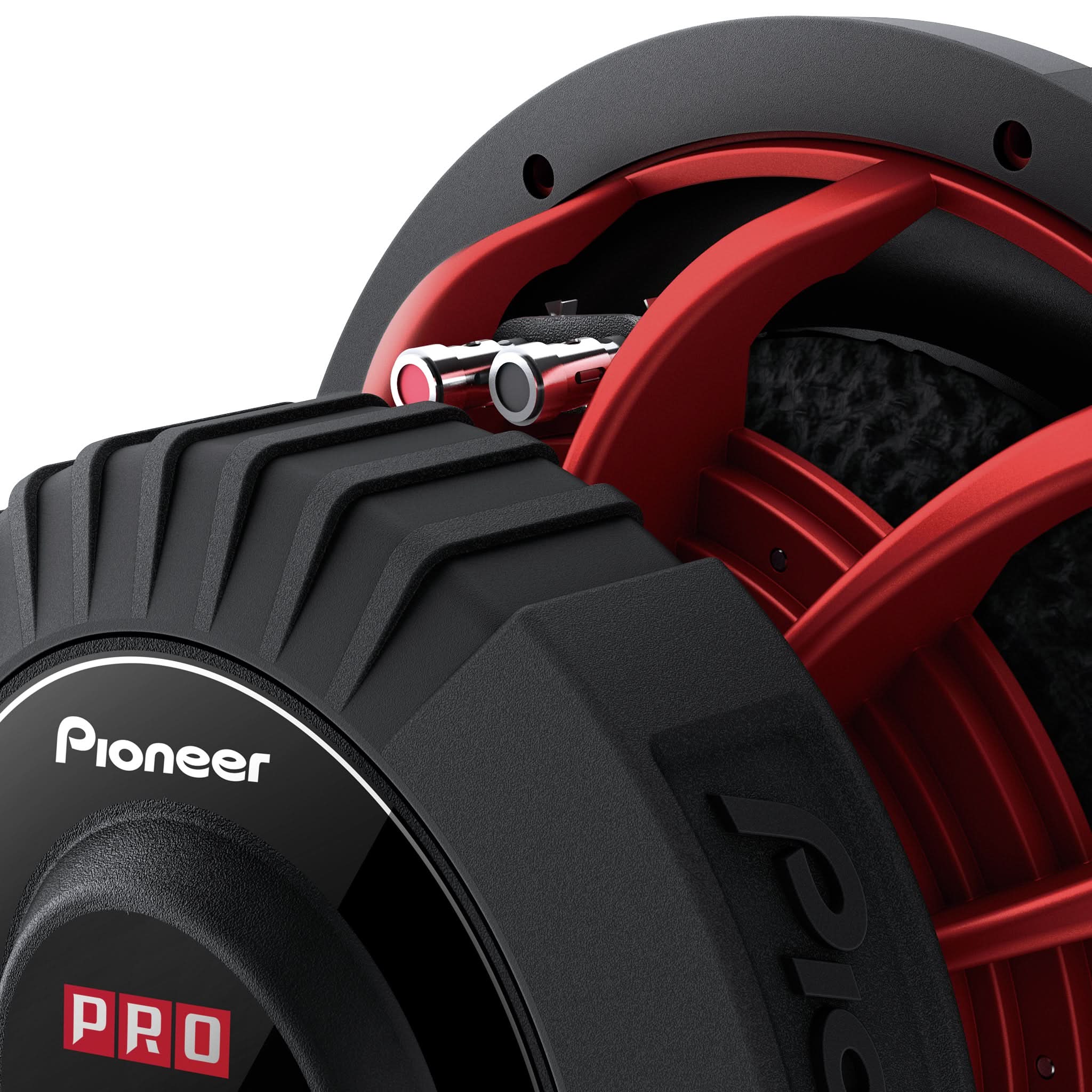

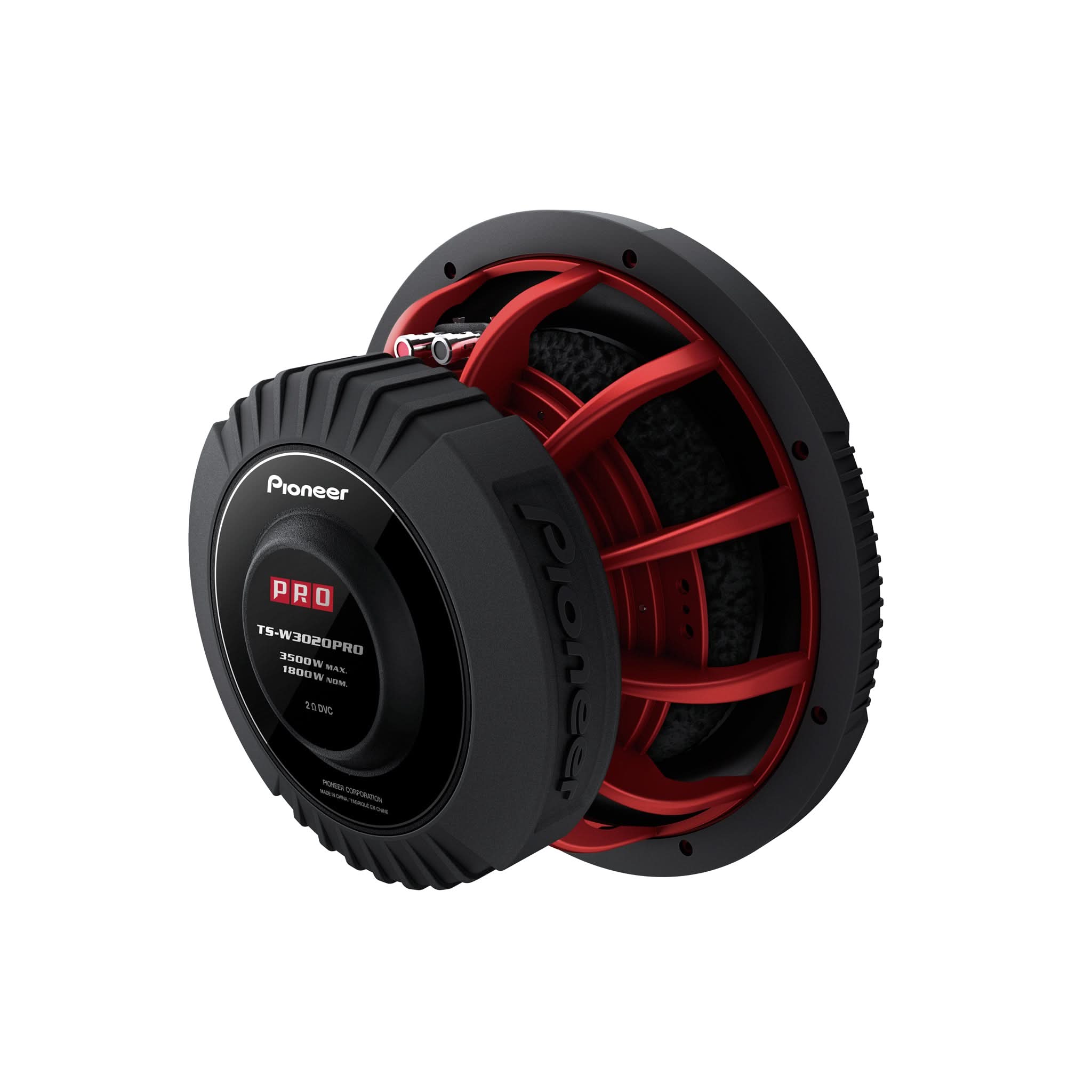

TS-W3020PRO

Regular price $277.00
Sold out

Find out if this product fits your vehicle

12" - 3500 W Max Power, Dual 2 Ohm Voice Coil, High Efficiency Loudspeaker - PRO Series Component Subwoofer

3500 W Max Power (1800 W Nominal)

12" Optimally Blended Pulp Cone Woofer

4-layer Copper Voice Coil

Designed for High Sensitivity and High Power Handling

P.R.O. Series - Pioneer Reference for Open Show car audio systems

The Pioneer Reference for Open Show series of speakers are designed specifically for those looking to produce serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. Series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment. The TS-W3020PRO 12" High Efficiency Subwoofer features 3500 W Max Power (1800 W Nominal) handling, an optimally blended pulp woofer cone, and a motor and basket structure designed for high sensitivity and high power handling. TS-W3020PRO sold individually.

What is Pioneer P.R.O.

In the early 2000s, an SPL competition called “dB drag racing” became popular in the U.S. By 2003, there were approximately 10,000 competitors, with winners achieving around 150dB. Pioneer broke the world record in 2004 by reaching 173.0dB and renewed this title the following year with an impressive 180.5dB!

Around 2005, under the sponsorship of the IASCA (International Auto Sound Challenge Association), an emerging SPL competition called "OPEN SHOW" was introduced with great success. The acronym for Pioneer P.R.O. (Pioneer Reference for Open Show) for our dedicated products comes from this designation.

Now, it's a trend that can also be enjoyed casually outdoors, whether partying or tailgating at your favorite sports event.

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
1,800 W
Crossover Frequency
NA
Frequency Response
20Hz to 200 Hz
Maximum Peak Power Handling - Watts
3,500 W
Nominal Impedance - Ohm
2-Ohm Dual
Sensitivity (1W/1m)
86 dB
System-Type
Subwoofer
PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
1,800 W
Crossover Frequency
NA
Frequency Response
20Hz to 200 Hz
Maximum Peak Power Handling - Watts
3,500 W
Nominal Impedance - Ohm
2-Ohm Dual
Sensitivity (1W/1m)
86 dB
System-Type
Subwoofer
FEATURES
Cut Out dimensions
11-3/32
Equivalent Compliance (VAS)
8.3 - 0.293
Linear Excursion (Xmax)
22.8 - 0.897
Mounting Depth
6.06
Outer Diameter
12-11/16
Protrusion
1
Recommended Ported Box Internal volume
1.75 cu.ft (50 liters)
Recommended Sealed Enclosure Volume
1.25 cu.ft (34.4 liters)
Speaker Grill
NA
Total Speaker "Q" (Qts)
1.3
FEATURES
Cut Out dimensions
11-3/32
Equivalent Compliance (VAS)
8.3 - 0.293
Linear Excursion (Xmax)
22.8 - 0.897
Mounting Depth
6.06
Outer Diameter
12-11/16
Protrusion
1
Recommended Ported Box Internal volume
1.75 cu.ft (50 liters)
Recommended Sealed Enclosure Volume
1.25 cu.ft (34.4 liters)
Speaker Grill
NA
Total Speaker "Q" (Qts)
1.3
MATERIALS
Cone Material
Blended Pulp,Cellulose fiber
Magnet Material
Ferrite
Magnet Weight
3,680 g,130 oz
Spider Material
Polycotton
Surround Material
Urethane
Surround Type
Rolled
Voice Coil Bobbin
Aluminum
Wire Terminals
Lug Type
MATERIALS
Cone Material
Blended Pulp,Cellulose fiber
Magnet Material
Ferrite
Magnet Weight
3,680 g,130 oz
Spider Material
Polycotton
Surround Material
Urethane
Surround Type
Rolled
Voice Coil Bobbin
Aluminum
Wire Terminals
Lug Type
