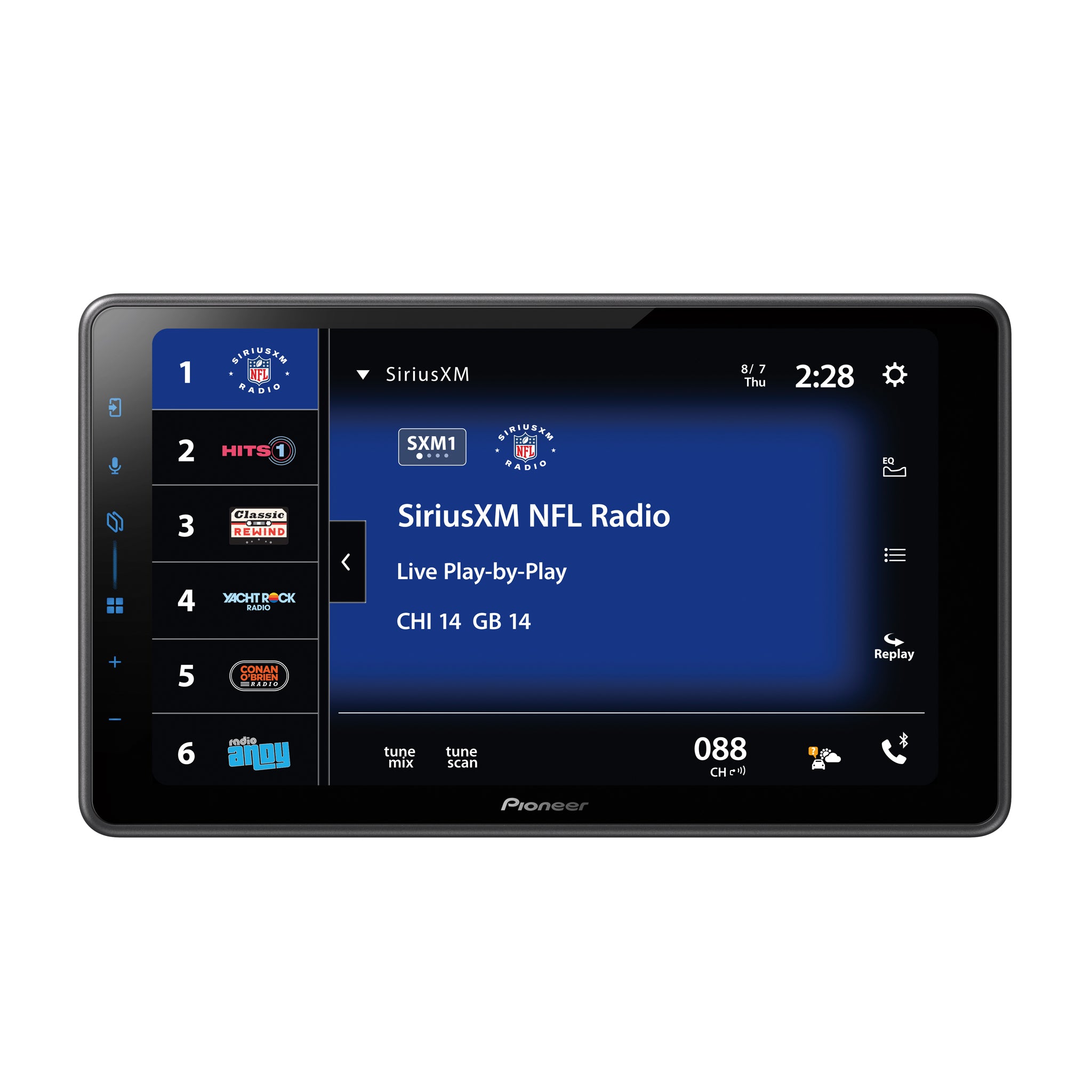

Pioneer_DMH-WT5000NEX_Whats in the box Image

Pioneer car multimedia display with app icons on a white background

Car stereo system with touchscreen display on a white background

Car dashboard with a touchscreen display showing app icons

DMH-WT5000NEX 9" Wireless CarPlay & Android Auto Floating Single-DIN

Name: DMH-WT5000NEX 9" Wireless CarPlay & Android Auto Floating Single-DIN
Brand: PCAN
SKU: DMH-WT5000NEX
Availability: OutOfStock

Barcode : 884938519021

SKU : DMH-WT5000NEX

Features:

9.0" Floating-screen (1 DIN Chassis) WSVGA (1024x600) capacitive display
Apple CarPlay® (Wired, Wireless)
Android Auto™ (Wired, Wireless)
Amazon Alexa via Pioneer Vozsis
HD Radio™ and SiriusXM-Ready™
iDatalink® Maestro™ and Metra Axxess™ compatible

Ask about DMH-WT5000NEX 9" Wireless CarPlay & Android Auto Floating Single-DIN

Product Details

The DMH-WT5000NEX features a large 9.0" WSVGA (1024x600) capacitive touchscreen with a unique mounting solution that floats the screen in front of the radio location. With the latest connectivity solutions designed especially for today’s smartphone-driven lifestyle, the Pioneer PxLink App allows you to customize your receiver’s home screen, quickly access features, and easily perform OTA firmware updates. Features include Android Auto™, Apple CarPlay®, built-in Bluetooth®, SiriusXM-Ready™, and built-in HD Radio™. With its fast-processing power and a refreshing user interface design, this receiver offers you an incomparable sound experience for any type of listening and sources. Whether connected via wires or wirelessly, you can always expect high-quality sound and ease of use.

Specs

Display
Back Light : LCD
Brightness Controlt : Yes
Color Customizationt : 5 display colors, 112 key colors
Device (Non-DIN/Modular Unit)t : 1-DIN, Floating
Dimmert : Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Modet : Yes
Home Screen Customizationt : Yes
Monitor Mechanismt : Adjustable, Floating
Resolutiont : 1024 x 600
Screen Size/Aspect Ratiot : 9"/16:9
Touch Screent : Capacitive

Product Performance
Continuous Power Output : 22 W x 4-Channel
Load Impedence Allowance : 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output : 50 W x 4-ch 4 ohm , 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
RCA Preamp Outputs : 6-ch
RCA Preout Voltage : 4V
RMS Power Output (CTA-2006) : 14 W RMS x 4-ch 4 ohm

BlueTooth
Advanced Audio Distribution Profile (A2DP) : Yes
AVRCP : 1.6
Built-in Bluetooth® : Yes
Dual Phone Connection : Yes
Hands-Free : Yes
Microphone Included : Included
Phone Registation : 5-phone
Secure Simple Pairing (SSP) : Yes
Serial Port Profile (SPP) : Yes

Tuner
Best Station Memory : Yes
HD Radio™ : Built In, Artist Experience, Multicasting
Hybrid Radio : Yes
Local Seek tuning : Yes
Presets : 18 FM, 6 AM
RDS : Yes

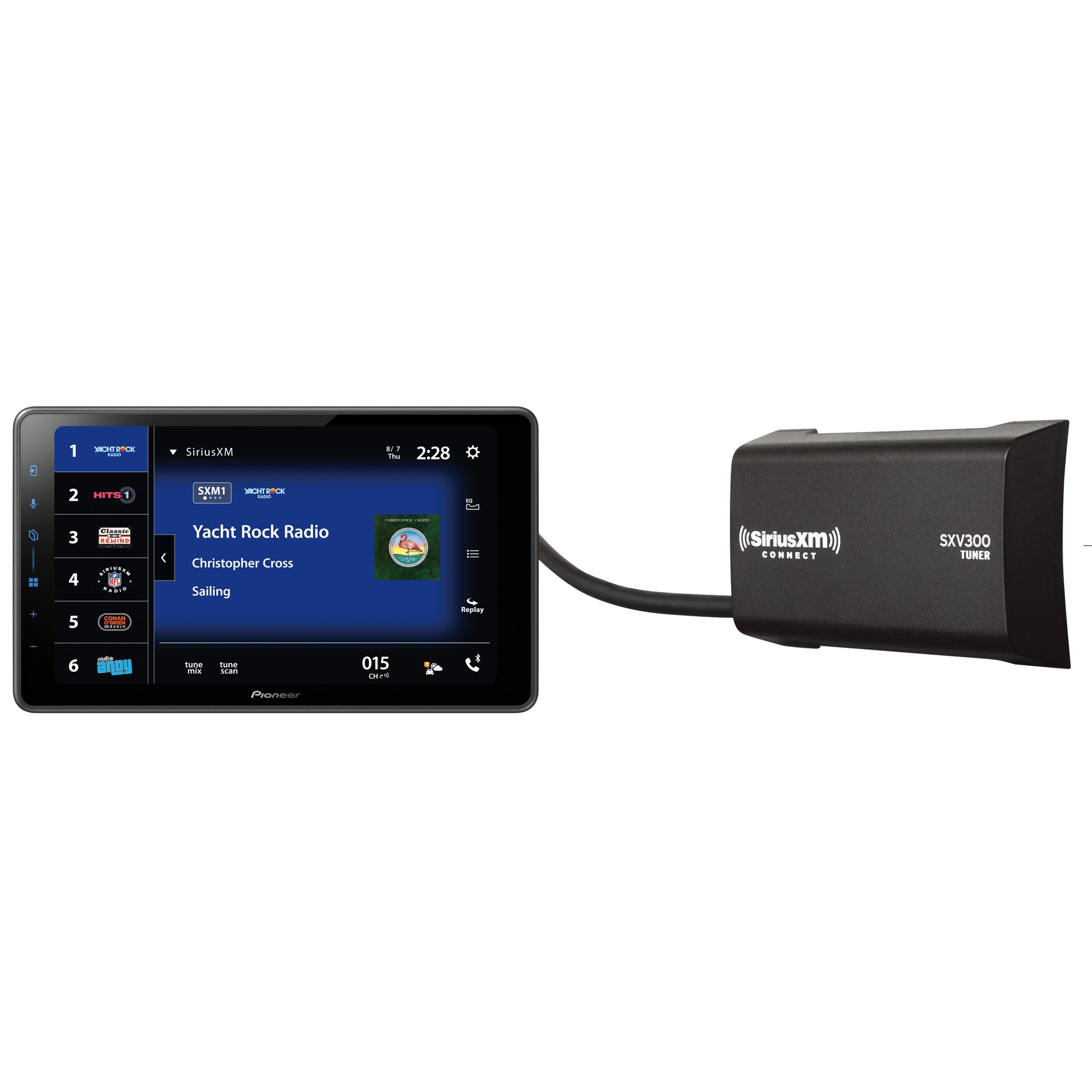

SiriusXM-Ready™ (Tuner Sold Separately) : Yes

Audio
Advanced Sound Retriever : Mode-1/Mode-2/Off
Audio Bass Boost : Yes
Auto Sound Levelizer (ASL) : Yes
Balance : Yes
Built-in Amplifier : MOSFET 50 W x 4
Crossover Network Mode : HPF/Band Pass/LPF
Crossover Standard Mode : HPF/LPF
Customizable Graphic Equalizer : 13 Band
DA Converter : Pioneer Dual-Core 48-Bit DSP/DAC
Digital Signal Processor : Built-in Pioneer Dual-Core 48-Bit DSP/DAC
Dynamic Bass Enhancer : Six Levels
Easy EQ (EEQ) Preset Equalizer : Yes
Listening Position Selector : Yes
Loudness : High/Mid/Low/Off
Speaker Output : 4-ch
Spectrum Analyzer : Yes
Subwoofer Control : Yes
Time Alignment : Manual

Integration
Amazon Alexa : Paired with Pioneer Vozsis
Android Auto™ : Wireless Connection or Wired USB Connection
Apple® CarPlay : Wireless Connection or Wired USB Connection
Mobile Operating System : Android, Apple iOS
Music Playback (MTP) : Yes
Pandora® : With Apple CarPlay or Android Auto
Pioneer App Compatibility : PxLink
Siri® Eyes Free (VR) (Internet Required) : iPhone Only
Spotify : With Apple CarPlay or Android Auto
Voice Control : Yes
Weblink : 3.0
Wifi : Tethering, WiFi Hotspot

Expandability
Audio Video Inputs : Input 1 - Backup Camera Dedicated, Input 2 - AUX (Minijack), Input 3 - A/V or 2nd Camera
OEM Integration : iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess
OTA Update Compatabile : Yes
Parking Assist Lines : Yes
USB : Single Rear Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone® : 5s and newer

General
Detachable Face Security : Fixed
Multi-Language Display : English, French, Spanish Portuguese, Chinese (Simplified)
Remote Control : Wireless control with PxLink
Steering Wheel Control Ready (Adapter Sold Separately) : Yes

Manuals/Warranty

Looking for manuals, firmware updates, and more information? Click Here
