Name: GM-A6704
Brand: Pioneer Electronics (USA) Inc.
SKU: GM-A6704
Price: 190.0 USD
Availability: InStock

GM-A6704

$190.00

Find out if this product fits your vehicle

Select quantity

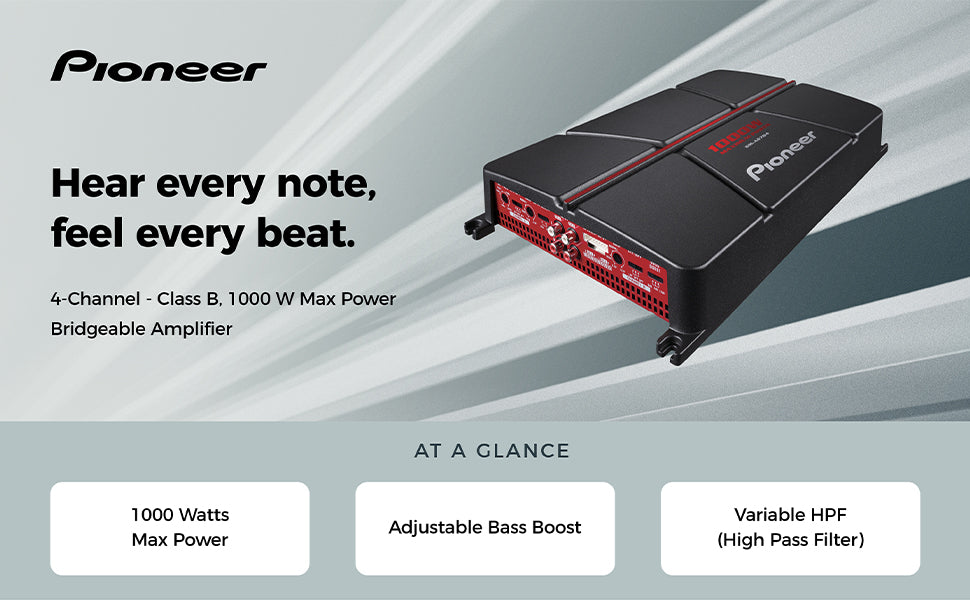

4-Channel - Class AB, 1000W Max Power - Bridgeable Amplifier

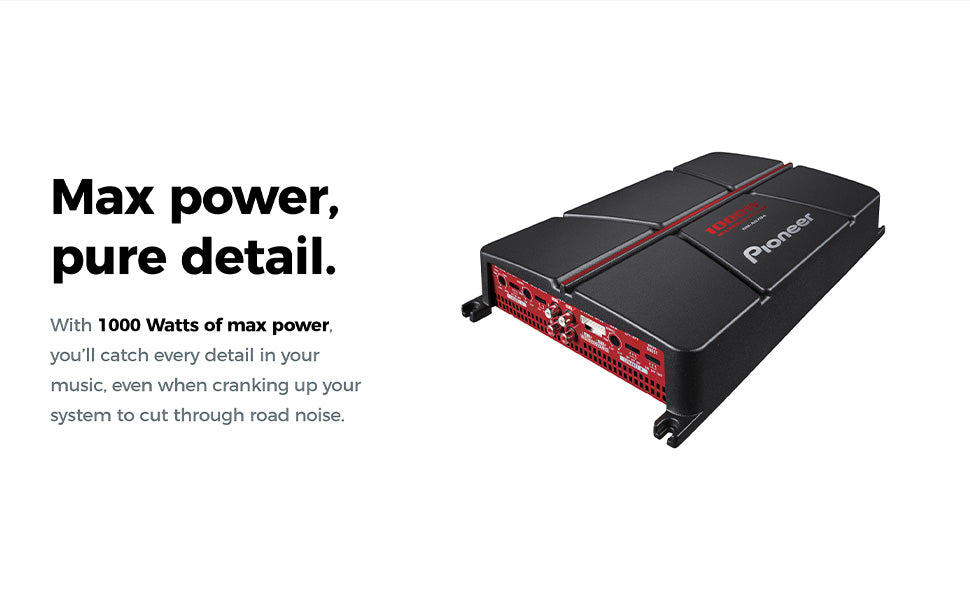

Total of 1000 Watts Maximum Power

60Wx4 RMS @ 4 ohms (1%THD)

170Wx4 MAX @ 4 ohms (1%THD)

Automatic signal sensing and Turn-On

Built-in active filter (switchable)

Adjustable bass boost

Overview
Specs
Knowledgebase
Manuals/Warranty

The GM-A6704 4-channel amplifier will greatly improve the sound quality in your vehicle. This amplifier powers your front and rear speakers with 60 watts RMS each, allowing you to hear much more of the little details in your music, especially when you turn your system up to overcome road noise. With this amplifier, you can run your front speakers with the “A” channels and combine the “B” channels to drive a subwoofer. You can also set this versatile amp to 2-channel mode to send 190 watts RMS each to a couple of component speakers or subwoofers. Speaker-level inputs also allow you to add this amplifier to a factory-installed audio source that does not have pre-amplified outputs.

High-Quality Affordable Design

To prevent poor bass performance in demanding situations, such as heavy bass content or dynamic range music, Pioneer designed a high-quality power supply to sustain constant power requirements. This design enhances audio performance by providing a better signal-to-noise ratio, improved audio dynamics, sustained bass when needed, and, most importantly, a more enjoyable ride in your car!

Automatic Signal sensing and Turn-On

When used with an audio source such as an OEM source or a receiver without RCA output, the amplifier will activate as soon as an audio source is detected through the speaker level outputs. When using a pre-amplified source (RCA), this Pioneer amplifier will use the signal (+12Vdc) from the "Remote" input for activation.

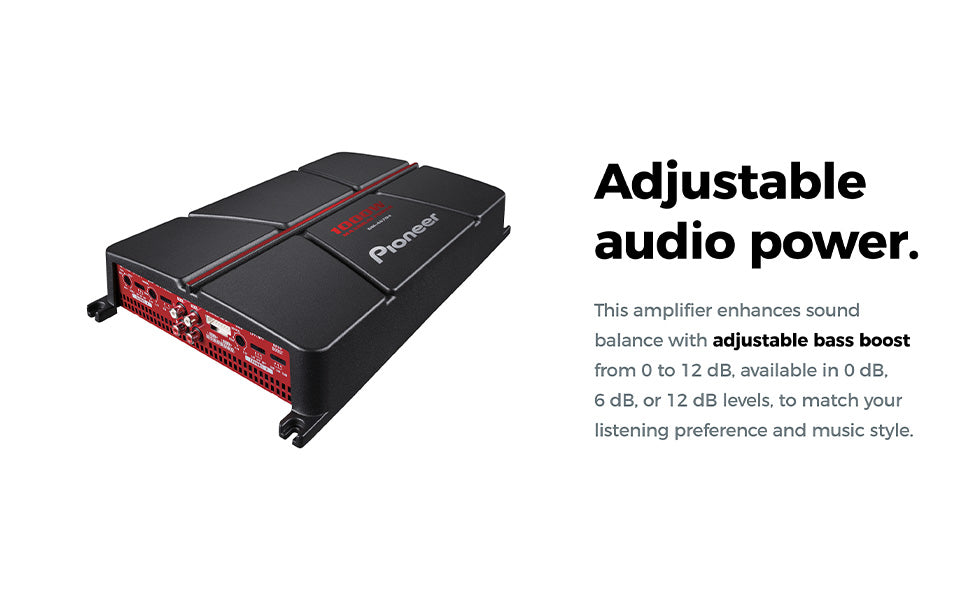

Bass Boost

This amplifier features a variable bass boost ranging from 0 to 12 dB for optimal bass performance. With this precise control, you can enhance the tonal balance and acoustic impact of the bass according to your listening preferences and musical style. The available adjustments are three levels: 0 dB, 6 dB, and 12 dB.

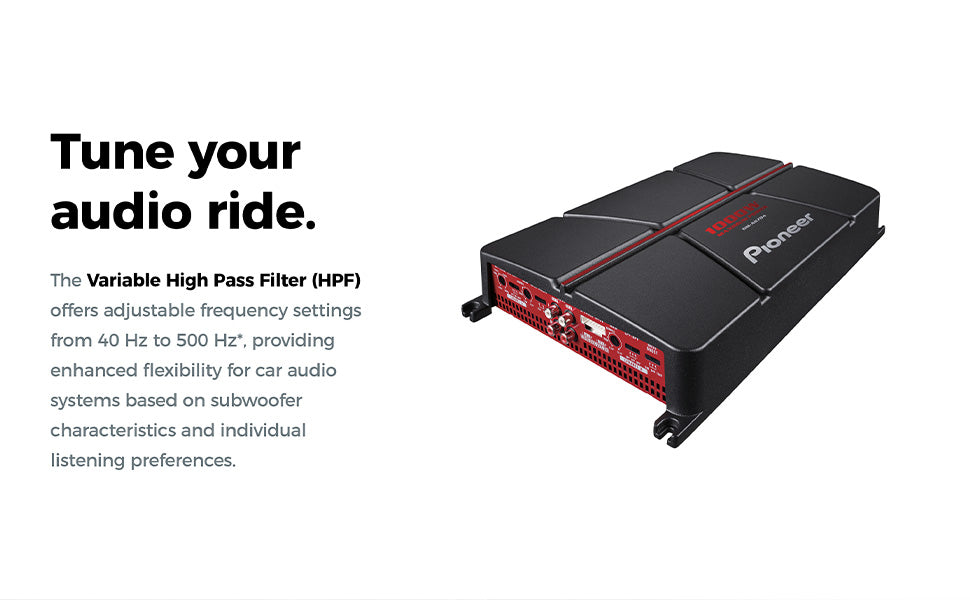

Variable Filter (Channel A)

The amplifier's "A" outputs feature a variable high-pass filter (HPF) ranging from 40 Hz to 500 Hz, or a fixed low-pass filter (LPF) at 80 Hz, to precisely adjust the audio bandwidth and optimize the acoustic performance of your speakers and/or subwoofer. These channels are ideal for your front speakers or for bass when the amplifier is used in 2-channel mode with two subwoofers.

Variable Filter (Channel B)

The amplifier's "B" outputs feature a high-pass filter (HPF) or low-pass filter (LPF) set at 80 Hz to eliminate low frequencies from your full-range speakers or high frequencies from your subwoofer, providing a more natural and pleasant acoustic performance. These channels are ideal for your rear speakers or a subwoofer when the amplifier is used in 3-channel mode.

AMP FEATURES
Bridgable Yes	Class A/B
Grounding System Negative	Power Source 14.4V (10.8 V to 15.1 V allowable)
Protection Control system Yes	Terminal Type Screw
Unit Weight 4.9 lbs

AMP FEATURES
Bridgable Yes
Class A/B
Grounding System Negative
Power Source 14.4V (10.8 V to 15.1 V allowable)
Protection Control system Yes
Terminal Type Screw
Unit Weight 4.9 lbs

PRODUCT PERFORMANCE
Allowable Load Impedance 2 ohm to 8 ohm allowable	Avg Current Consumption (amps x #ch) 14 A x 2-Channel - 4 Ohm,8.5 A x 2-Channel - 4 Ohm
Bass Boost 50 Hz - Frequency	Continuous-Power-Output 60 W x 4-Channel - 4 Ohm,95 W x 4-Channel - 2 Ohm,190 W x 2-Channel - 4 Ohm Bridged
Crossover Network Channel LPF - A/B Ch - 80 Hz,HPF - A Ch - 40 Hz to 500Hz,HPF - B Ch - 80Hz	Crossover Network Channel Slope -12db/oct (A/B CH)
Frequency Response Channel 10Hz to 70kHz (+0dB,-3dB) A/B Ch	Fuse Rating 25 A x 2
Maximum Power Output 170 W x 4-Channel (4 Ohm),250 W x 4-Channel (2 Ohm),1000 W (4 Ohm Bridged)	RCA Inputs 4-Channel
Signal to Noise 95 dBA (Reference: 1 W into 4 ohm)	Speaker Line input Sensor Yes

PRODUCT PERFORMANCE
Allowable Load Impedance 2 ohm to 8 ohm allowable
Avg Current Consumption (amps x #ch) 14 A x 2-Channel - 4 Ohm,8.5 A x 2-Channel - 4 Ohm
Bass Boost 50 Hz - Frequency
Continuous-Power-Output 60 W x 4-Channel - 4 Ohm,95 W x 4-Channel - 2 Ohm,190 W x 2-Channel - 4 Ohm Bridged
Crossover Network Channel LPF - A/B Ch - 80 Hz,HPF - A Ch - 40 Hz to 500Hz,HPF - B Ch - 80Hz
Crossover Network Channel Slope -12db/oct (A/B CH)
Frequency Response Channel 10Hz to 70kHz (+0dB,-3dB) A/B Ch
Fuse Rating 25 A x 2
Maximum Power Output 170 W x 4-Channel (4 Ohm),250 W x 4-Channel (2 Ohm),1000 W (4 Ohm Bridged)
RCA Inputs 4-Channel
Signal to Noise 95 dBA (Reference: 1 W into 4 ohm)
Speaker Line input Sensor Yes

GM-A6704 - What's in the Box

Owner's Manual ()
Product Warranty ()

GM-A6704

$190.00

Car Fit Guide Provided by

Guide provided for reference but cannot be guaranteed.
