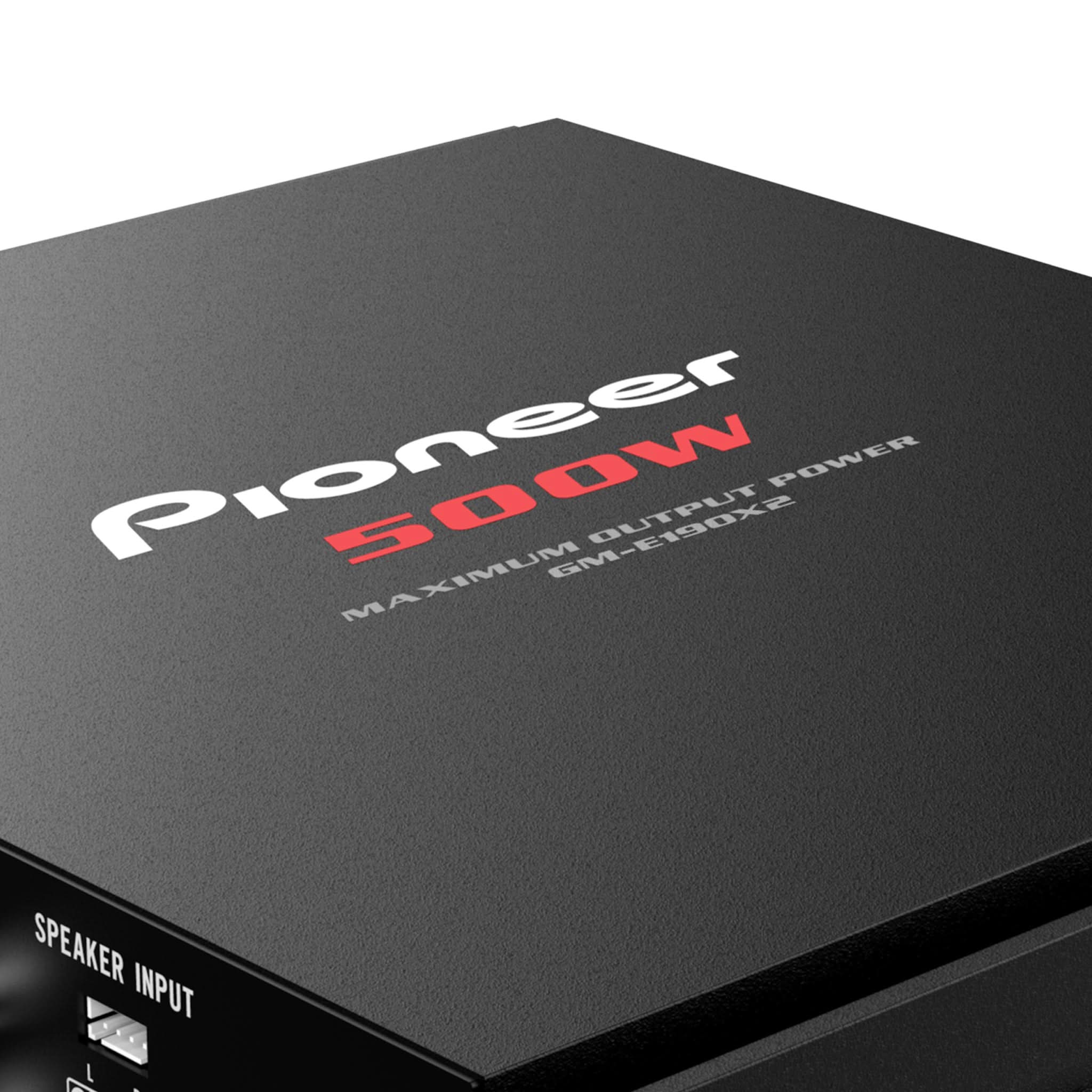

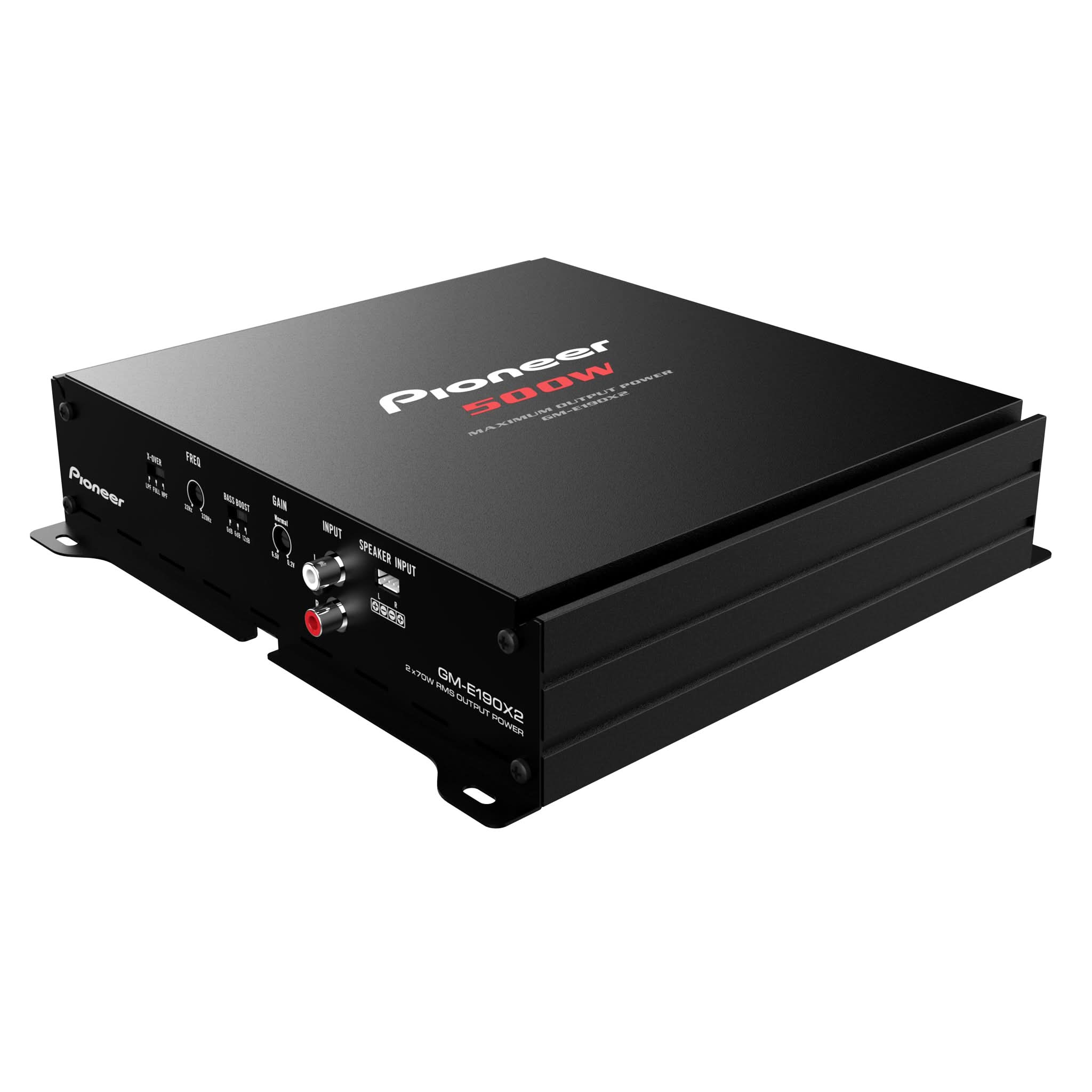

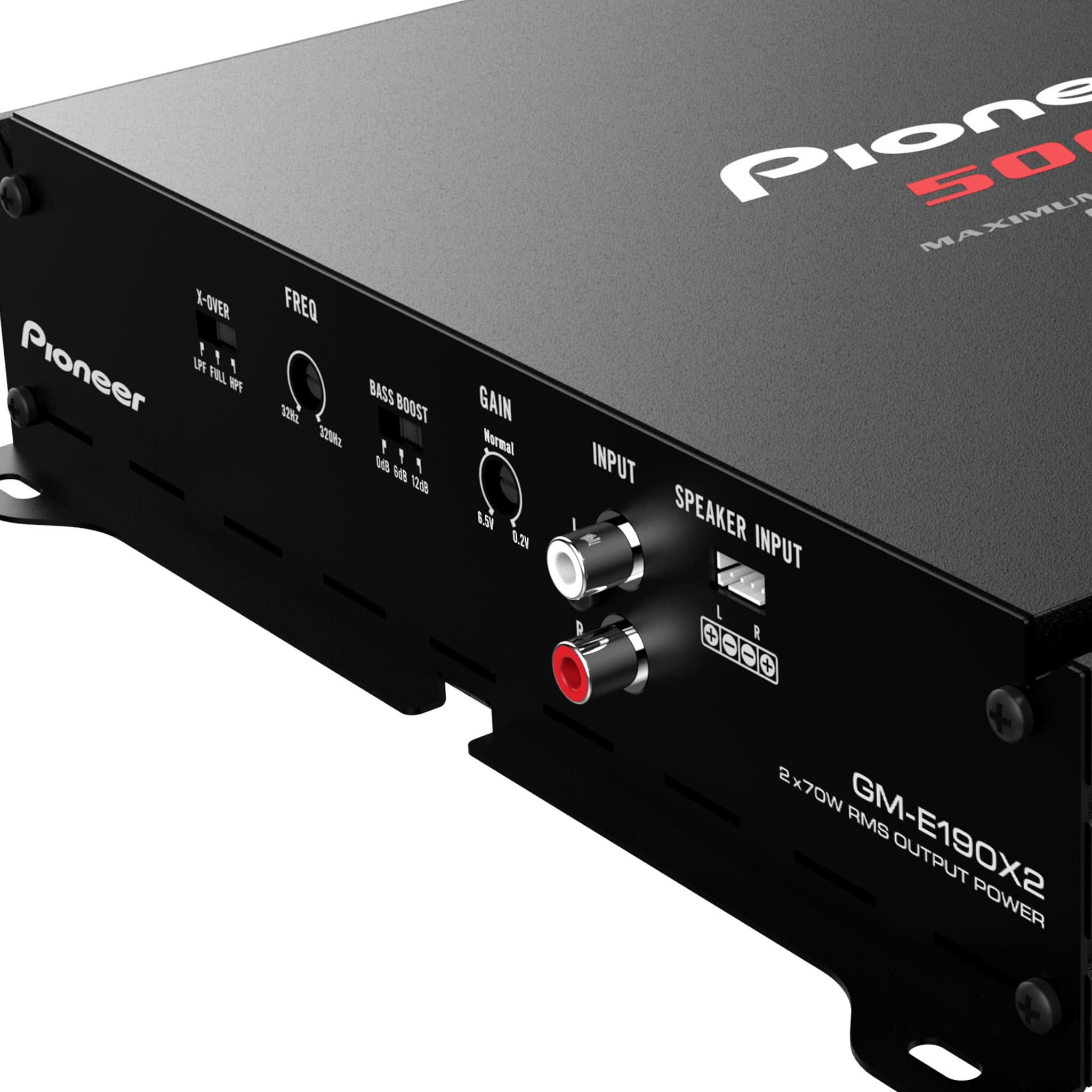

GM-E190X2 2-Channel Bridgeable Car Amplifier Variable LPF/HPF & Bass Boost

Barcode : 884938530989
SKU : GM-E190X2

Features:

500 Max Power (Bridged 4 ohm)
Variable High Pass and Low-Pass Filters
Adjustable Bass Boost
Improved Design Circuitry

Ask about GM-E190X2 2-Channel Bridgeable Car Amplifier Variable LPF/HPF & Bass Boost

Product Details

The Pioneer GM-E190X2 2-channel bridgeable amplifier is designed for high power output and performance, delivering exceptional sound quality. It features large-capacity electrolytic capacitors for increased voltage stability and the instantaneous output of large currents. The improved circuit design, utilizing a PCB board made of glass epoxy substrate, ensures high conductivity, increased temperature stability, and enhanced insulation resistance. For added flexibility, a variable LPF and HPF allow for fine-tuning your audio system, along with a two-step Bass Boost for optimal bass level adjustments according to listening preferences and music characteristics. This amplifier is compatible with both OEM and aftermarket head units.

Specs

Product Performance
Avg Current Consumption (Amps X #Ch) : 5A x 2-channel – 4 ohm, 7.5A x Mono channel – 4 ohm bridged, 7.5A x 2-channel – 2 ohm
Bass Boost : 50 Hz - Frequency, 0 dB, 6 dB, 12 dB - Level

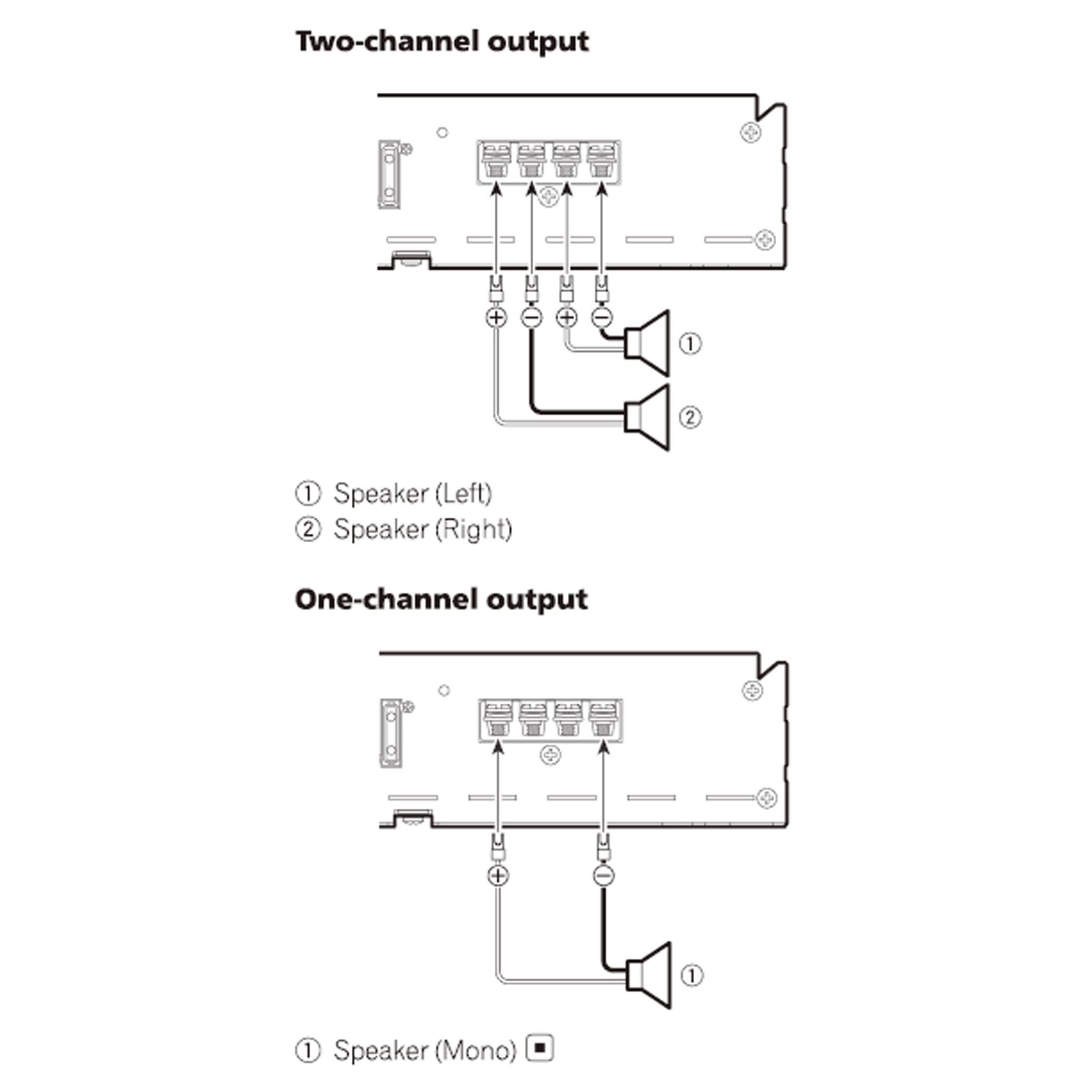

Continuous-Power-Output : 70w x 2-channel – 4 ohm, 95w x 2-channel – 2 ohm, 190w x Mono channel – 4 ohm bridged
Crossover Network Channel~LPF - 32 Hz to 320 Hz (A/B Ch), HPF - 32 Hz to 320 Hz (A/B Ch)
Crossover Network Channel Slope : -12db/oct (A/B CH)
Frequency Response Channel : 10 Hz to 40 kHz (+0 dB, -3 dB)
Maximum Power Output : 125w x 2-channel – 4 ohm, 500 W x Mono Channel – 4 ohm bridged
Speaker Line Input Sensor : Yes
