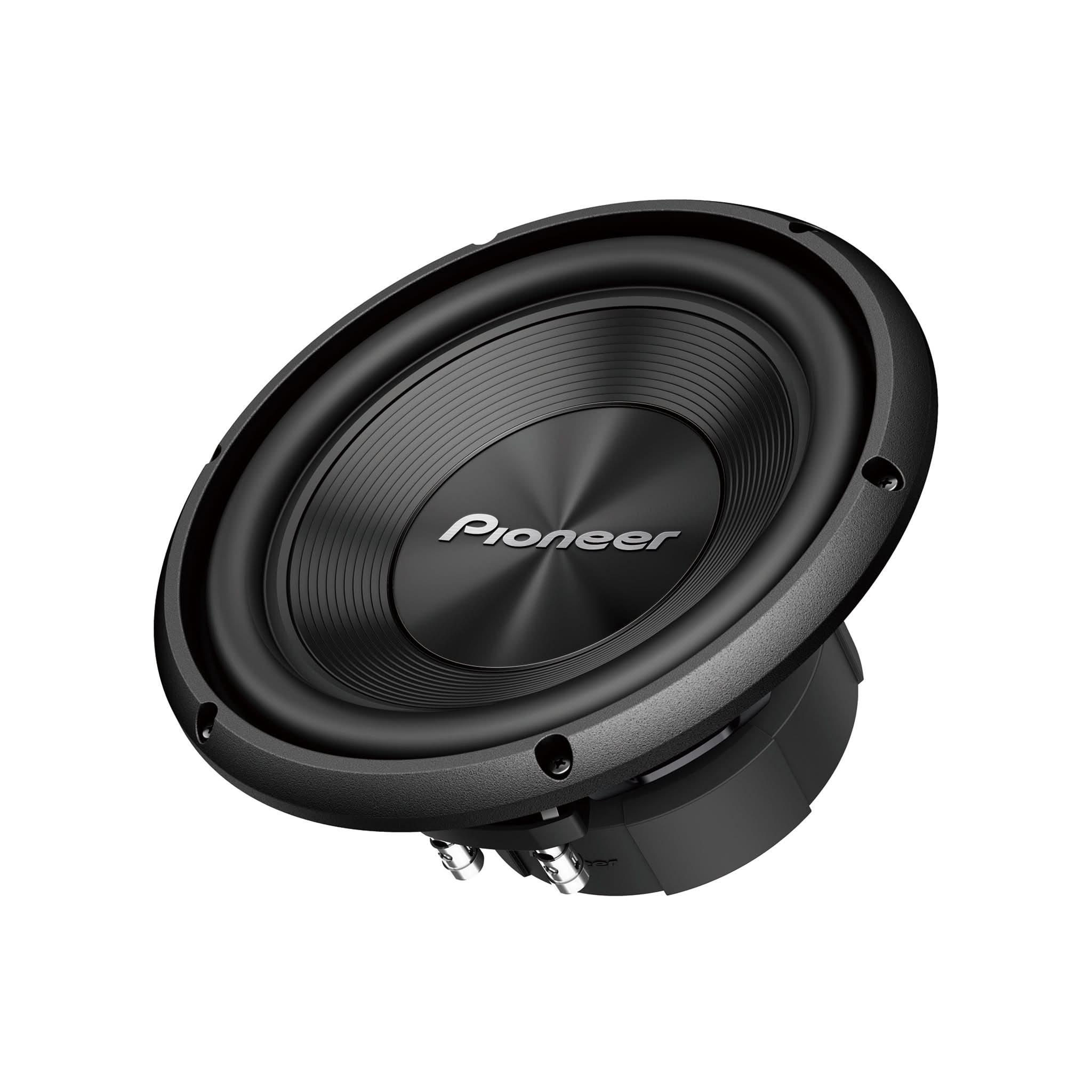

Pioneer car subwoofer on a white background

TS-A120D4 12" A-Series Dual 4-Ohm Voice Coil Subwoofer | 1400W Max

Name: TS-A120D4 12" A-Series Dual 4-Ohm Voice Coil Subwoofer | 1400W Max
Brand: PCAN
SKU: TS-A120D4
Availability: OutOfStock

Barcode : 884938404617

SKU : TS-A120D4

Features:

1500 W Max Power (500 W Nominal)
Dual 4 Ohm Voice Coils

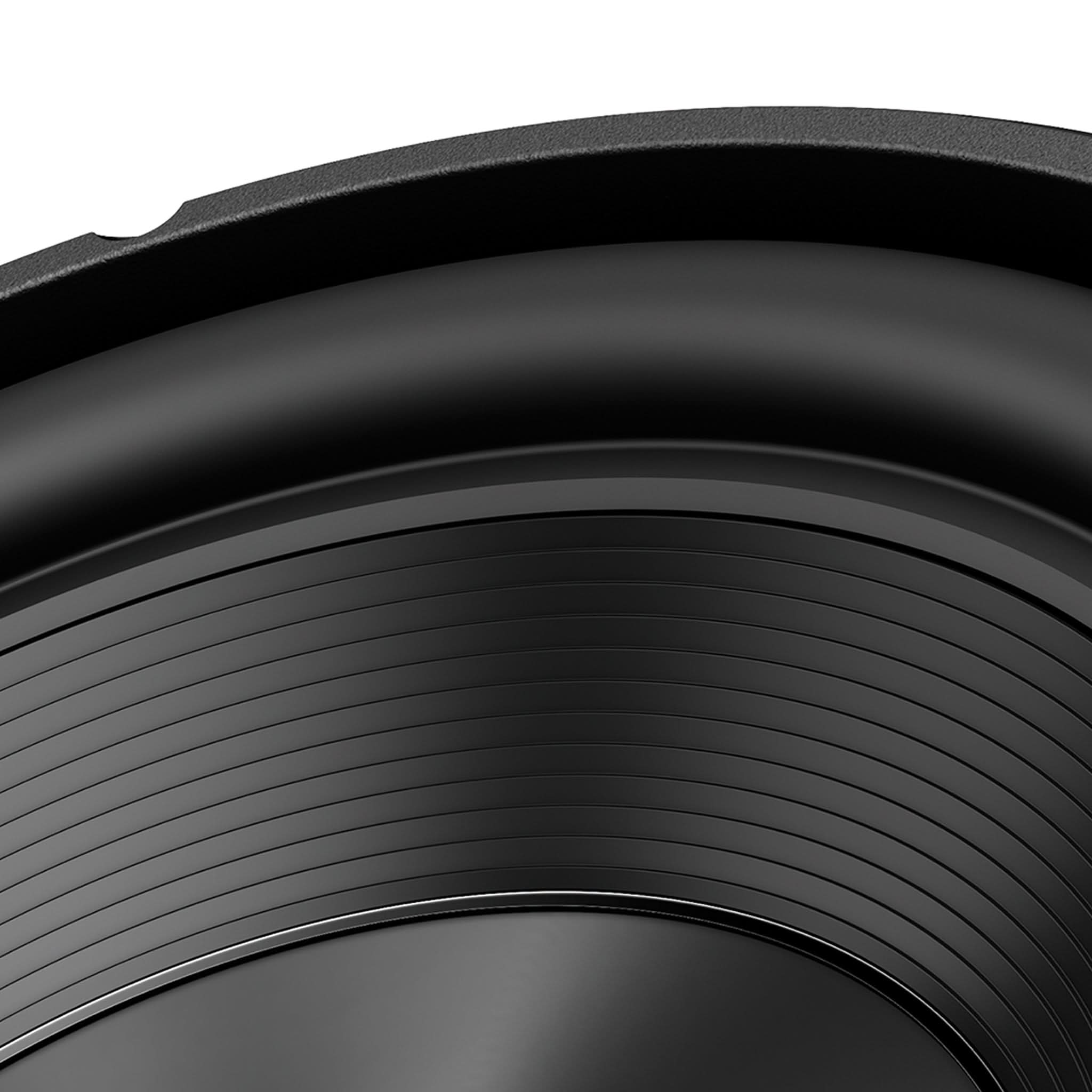

12” Glass Fiber and Mica Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion

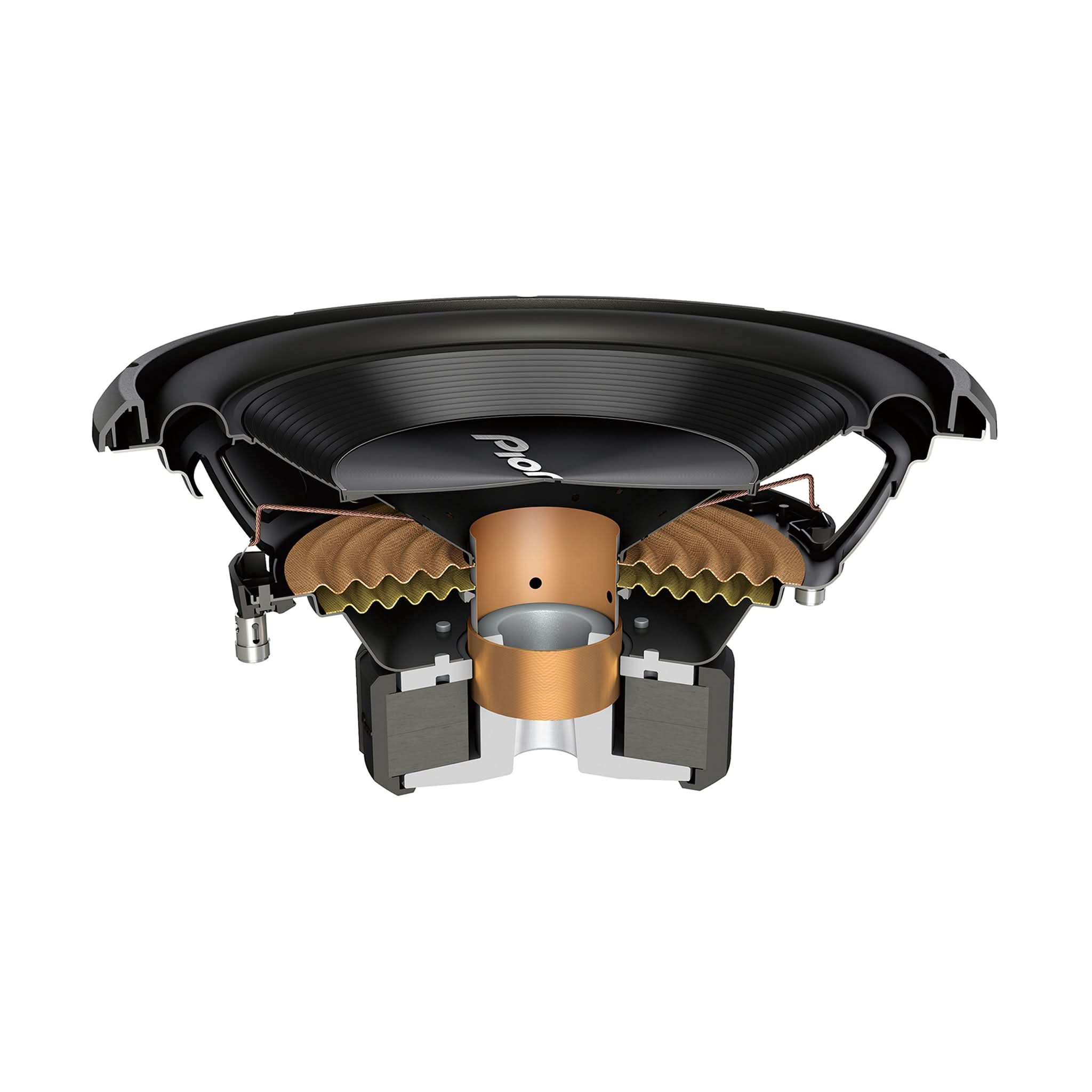

Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling

Ask about TS-A120D4 12" A-Series Dual 4-Ohm Voice Coil Subwoofer | 1400W Max

Product Details

12” Dual 4 Ω Voice Coil Subwoofer - Glass fiber and mica interlaced Injection Molded Polypropylene (IMPP™ cone construction, Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion, Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling.

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 500
Frequency Response : 20 Hz to 2.3 kHz
Maximum Peak Power Handling - Watts : 1500
Nominal Impedance - Ohm : 4-Ohm dual
Sensitivity (1W/1m) : 77 dB
System-Type : Component

Speaker Features
Cut Out dimensions : 11-1/8", 28 cm
Equivalent Compliance (VAS) : 87.1 Liters, 3.1 Cu. Ft.
Free Air ResoNAnce (Fs) : 25
Linear Excursion (Xmax) : 10.1 mm, 0.4"
Mounting Depth : 5-3/4"
Port Diameter : 3", 8 cm
Port Length : 6-1/2", 17 cm
Recommended Ported Box Internal volume : 42.5 Liters, 1.5 Cu. Ft
Recommended Sealed Enclosure Volume : 35.4 Liters, 1.25 Cu Ft
Total Speaker "Q" (Qts) : 0.69
Woofer Dimensions : 12"
