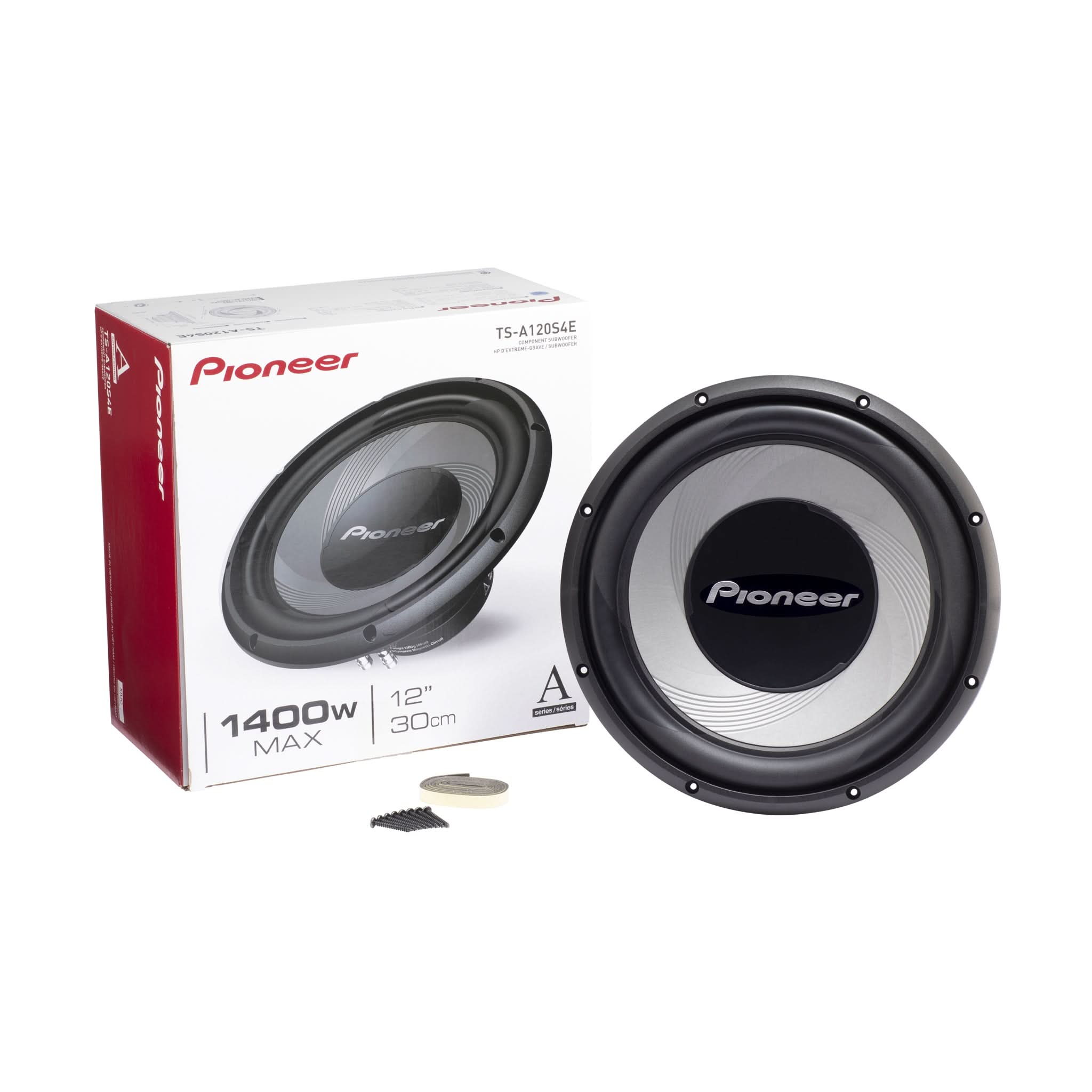

Pioneer_TS-A120S4E_Whats in the box Image

Pioneer car subwoofer on a white background

TS-A120S4E 12" A-Series Component Subwoofer | 1400W Max | 400W RMS

Name: TS-A120S4E 12" A-Series Component Subwoofer | 1400W Max | 400W RMS
Brand: PCAN
SKU: TS-A120S4E
Availability: OutOfStock

Barcode : 884938446549

SKU : TS-A120S4E

Features:

1400 W Max Power (400 W Nominal)
Single 4 Ohm Voice Coil
12" Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround
Simple design for fast and easy installation

Ask about TS-A120S4E 12" A-Series Component Subwoofer | 1400W Max | 400W RMS

Product Details

This Pioneer TS-A120S4E 12-inch car subwoofer has a 48mm voice coil that delivers powerful booming bass, a glass fiber reinforced cone to help enhance impact and clarity, and a rubber surround that improves stability, and a simple design which makes installation fast and easy.

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 400
Frequency Response : 22 Hz to 1.6 kHz
Maximum Peak Power Handling - Watts : 1400
Nominal Impedance - Ohm : 4-Ohm
Sensitivity (1W/1m) : 87 dB
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 11-1/8", 28 cm
Equivalent Compliance (VAS) : 56.1 Liters, 2 Cu. Ft.
Free Air ResoNAnce (Fs) : 32.1
Linear Excursion (Xmax) : 8.25 mm, 0.33"
Mounting Depth : 5-3/8", 13.65cm
Port Diameter : 3", 8 cm
Port Length : 6-1/2", 17 cm
Recommended Ported Box Internal volume : 42.5 Liters, 1.5 Cu. Ft
Recommended Sealed Enclosure Volume : 35.4 Liters, 1.25 Cu Ft
Total Speaker "Q" (Qts) : 0.7
Woofer Dimensions : 12"
