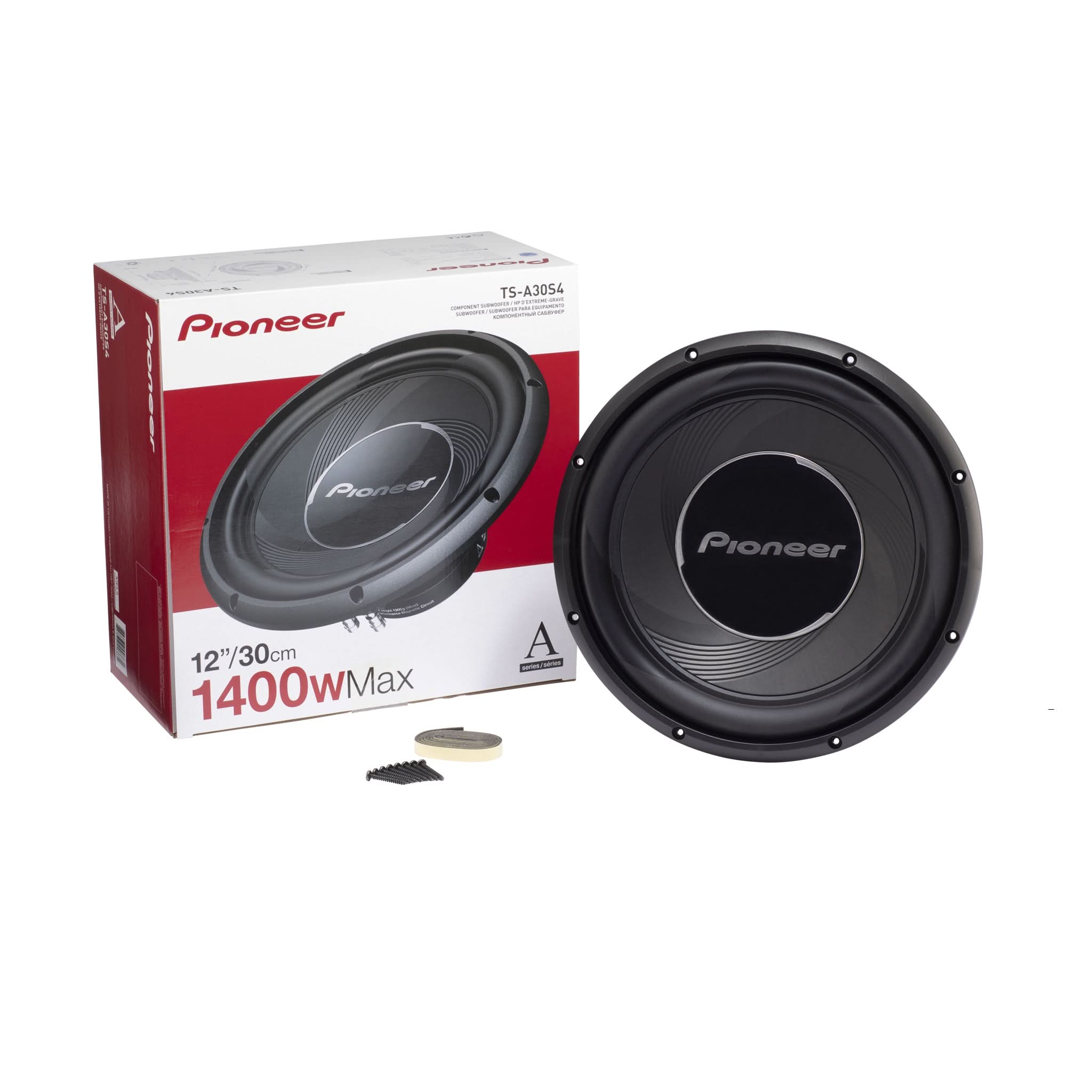

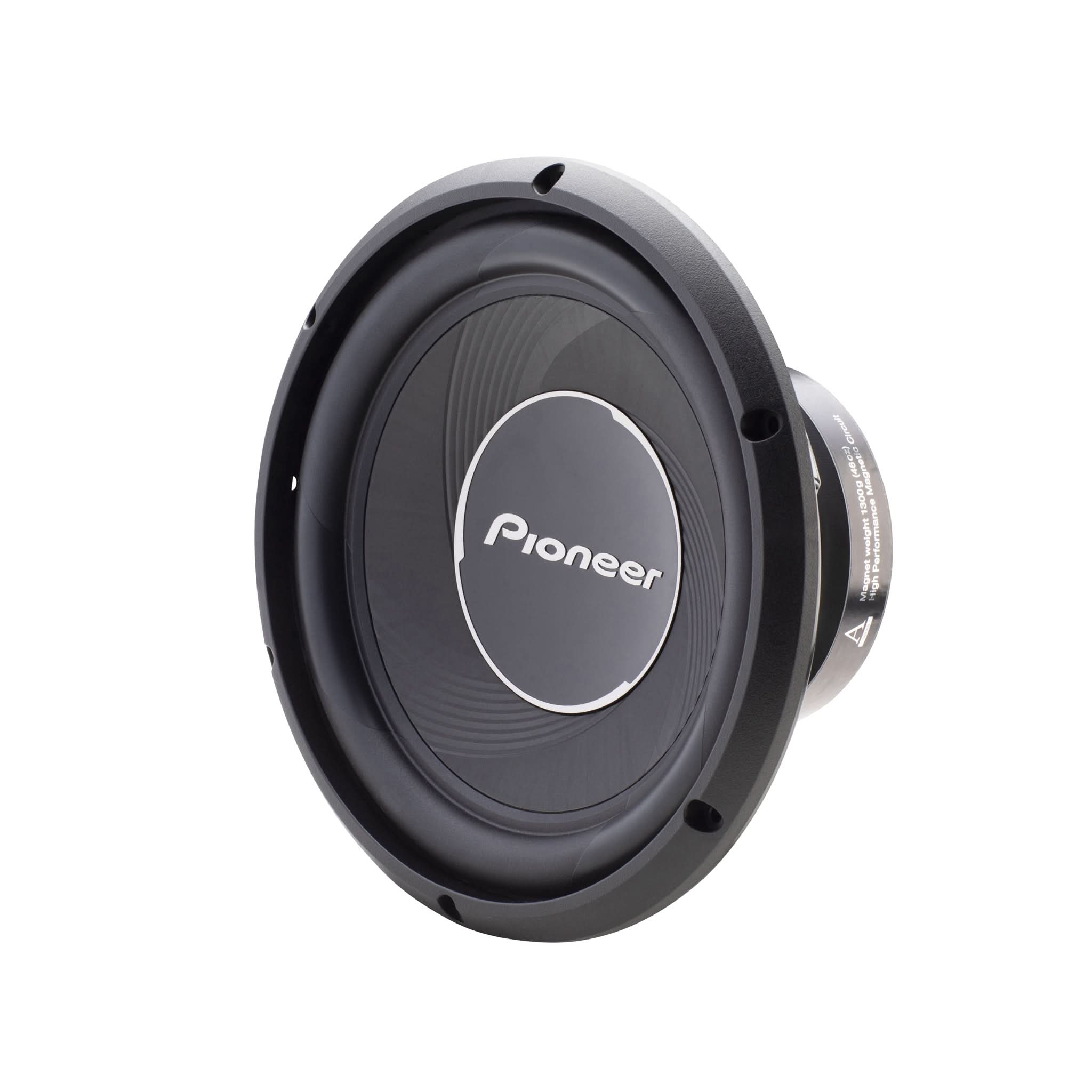

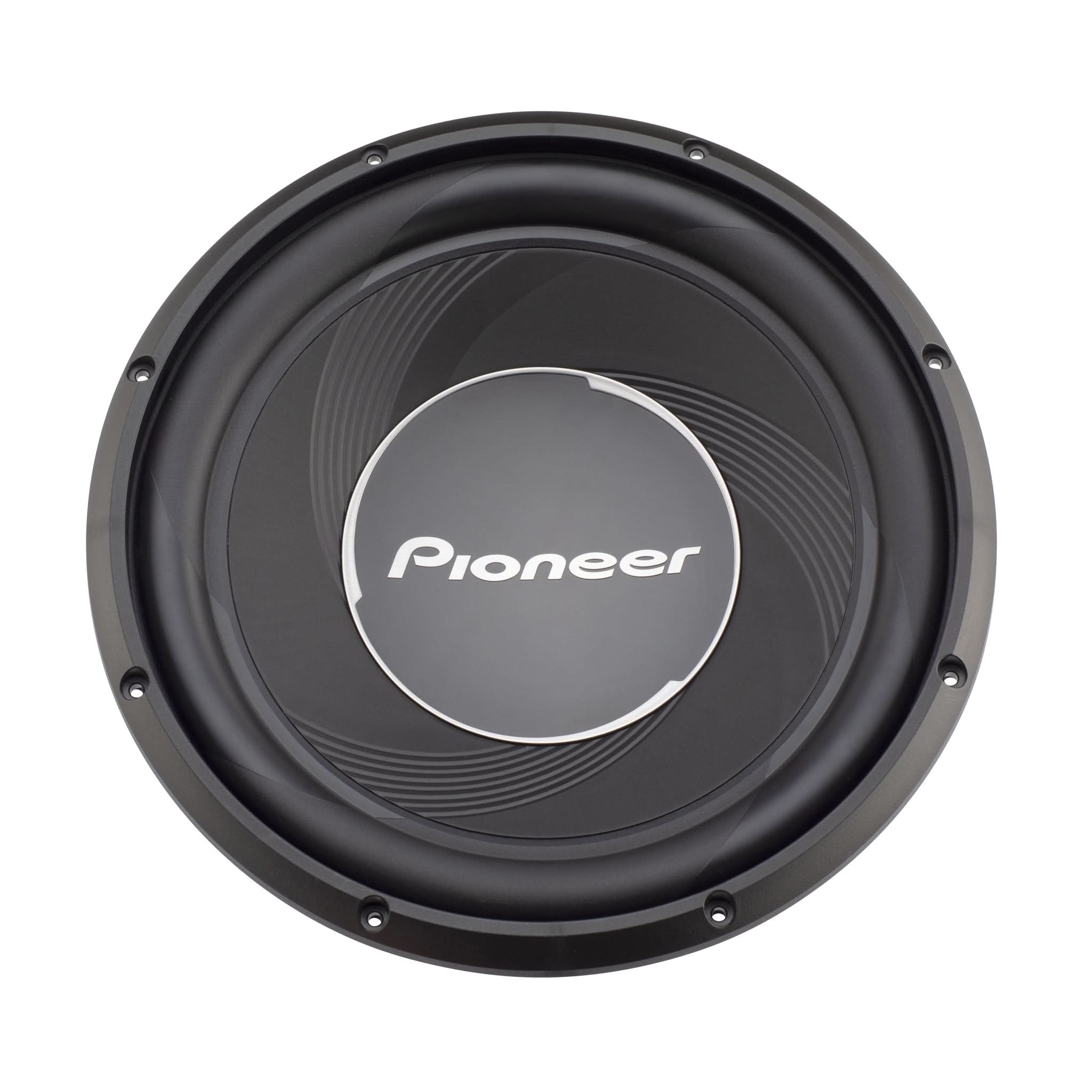

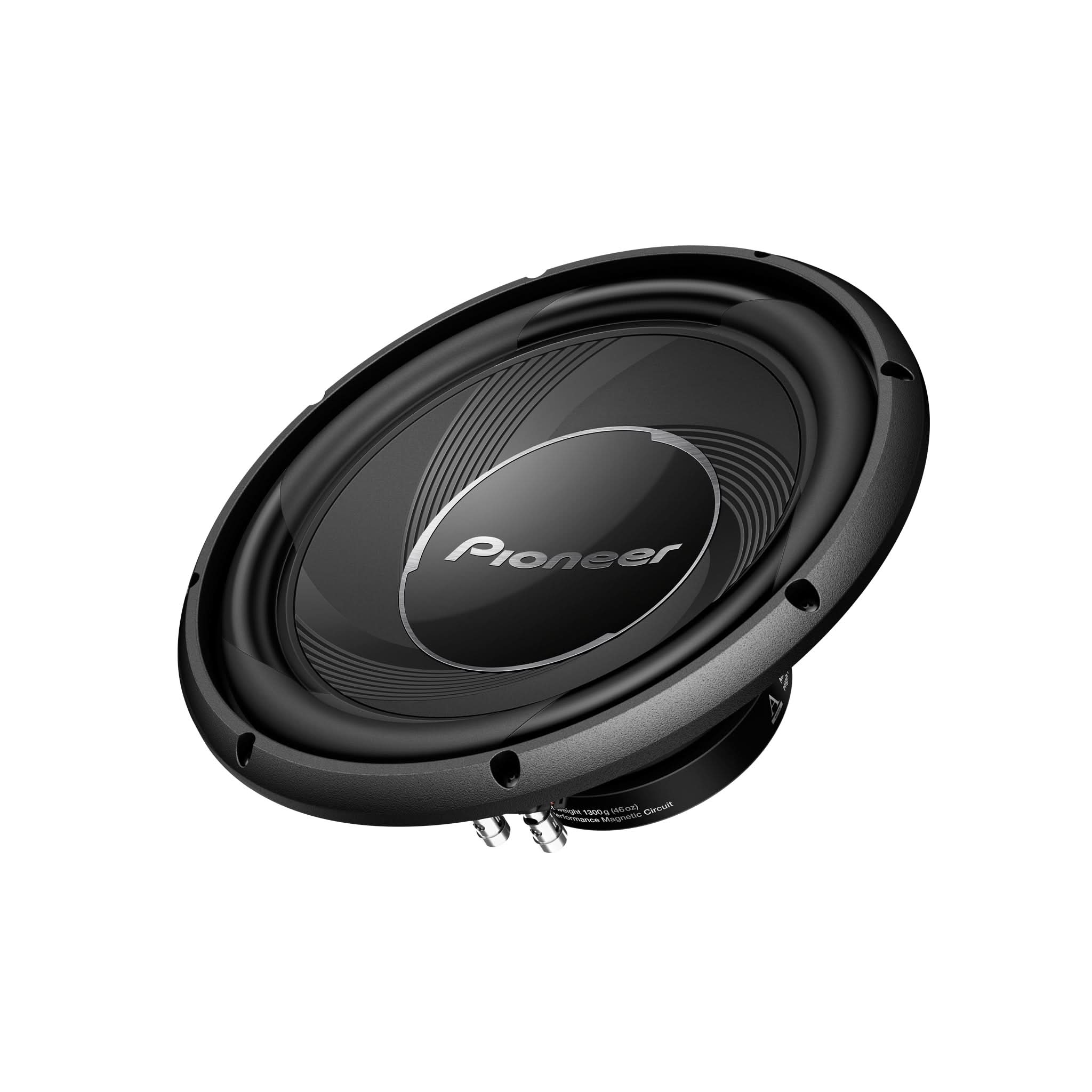

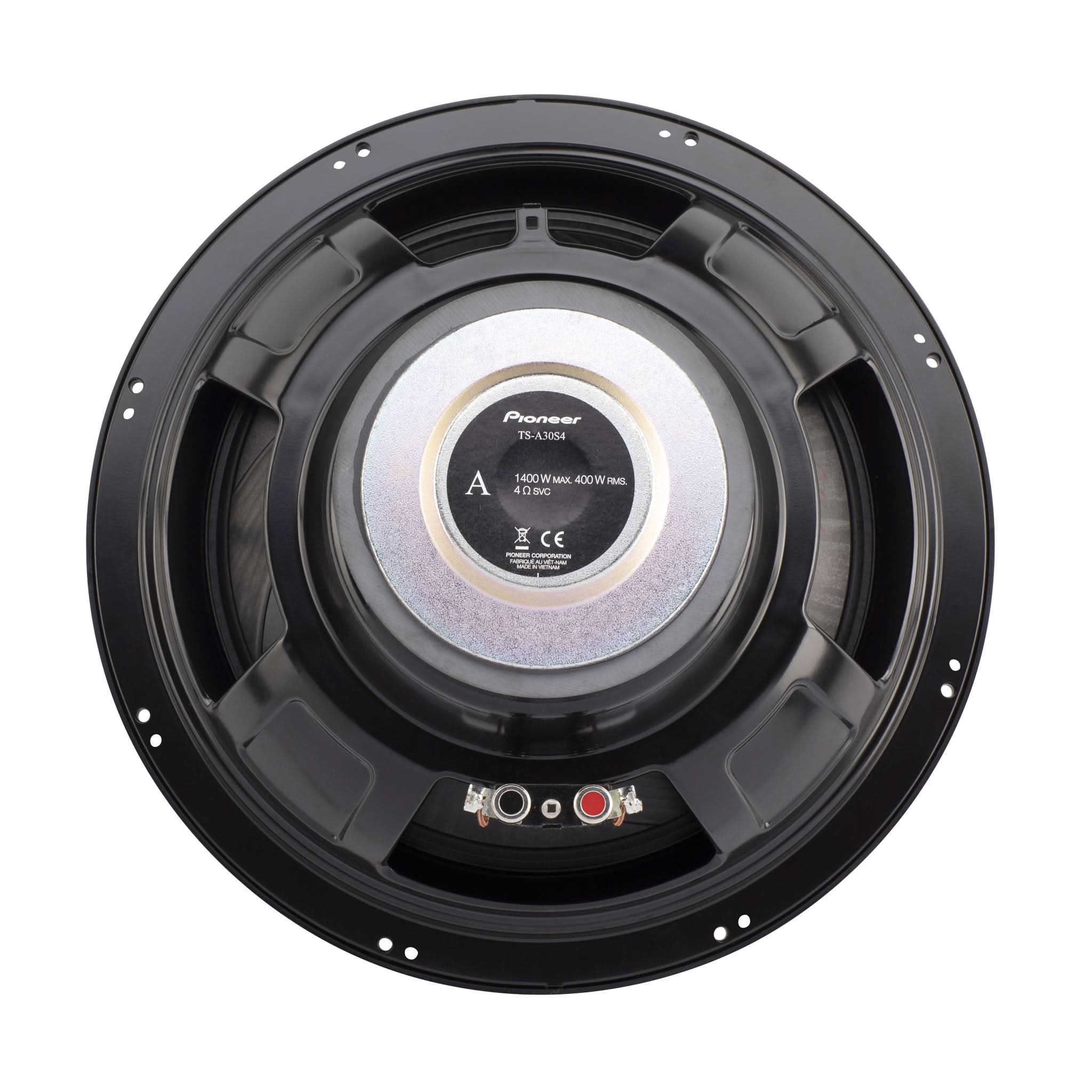

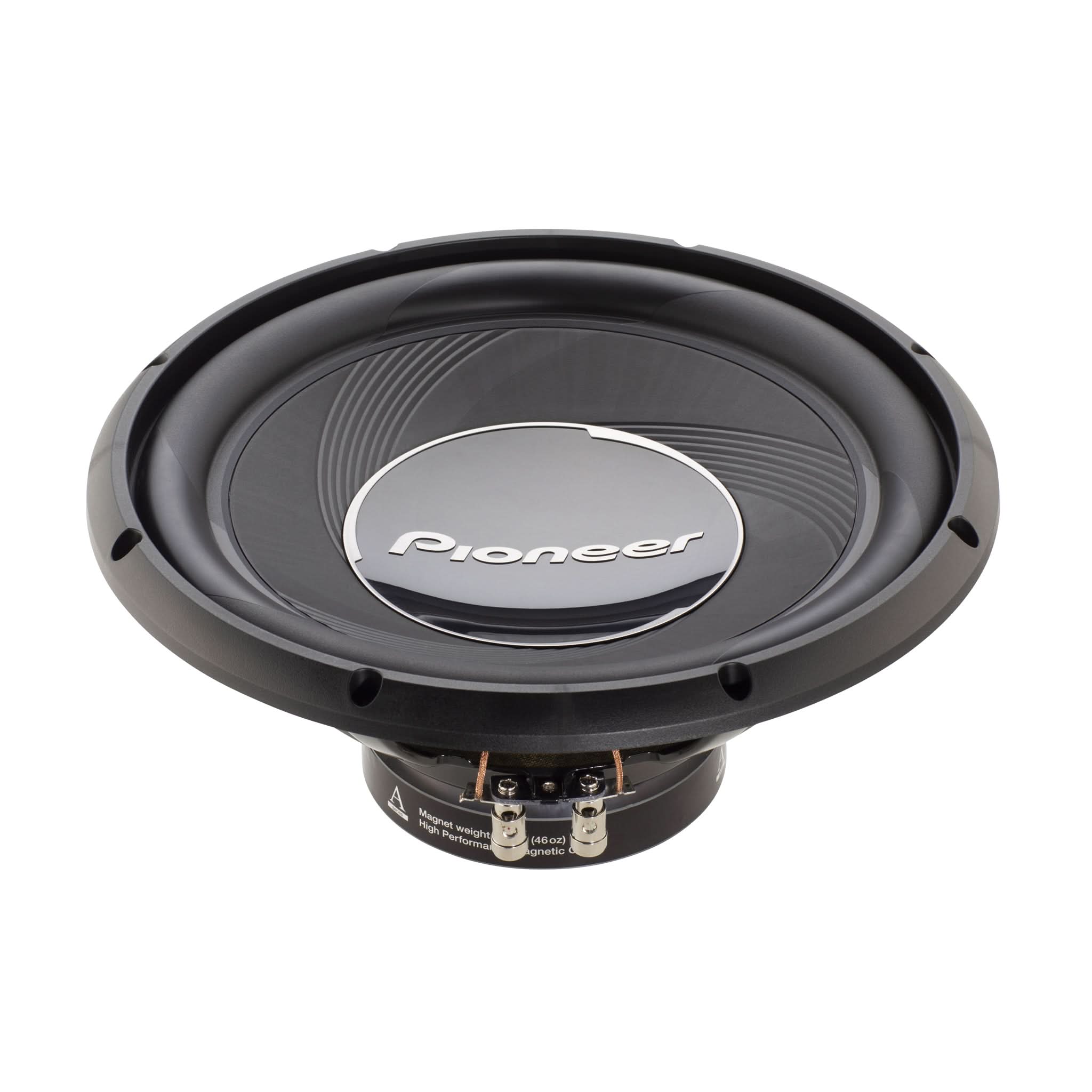

TS-A30S4 12" A-Series Component Subwoofer | 1400W Max | 400W RMS 4-Ohm

Name: TS-A30S4 12" A-Series Component Subwoofer | 1400W Max | 400W RMS 4-Ohm
Brand: PCAN
SKU: TS-A30S4
Availability: OutOfStock

Barcode : 884938446631

SKU : TS-A30S4

Features:

1400 Watts Max. Power / 400 Watts Nominal Power
12" IMPP™ Composite Cone
Elastic polymer Surround & polycotton spider
Frequency range: 22 Hz to 1.6 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 87 dB (1W/1M)
Mounting depth: 6” (152mm)
Recommended Box volume : 1.5cu.ft (vented) / 1.25cu.ft. (sealed)

Ask about TS-A30S4 12" A-Series Component Subwoofer | 1400W Max | 400W RMS 4-Ohm

Product Details

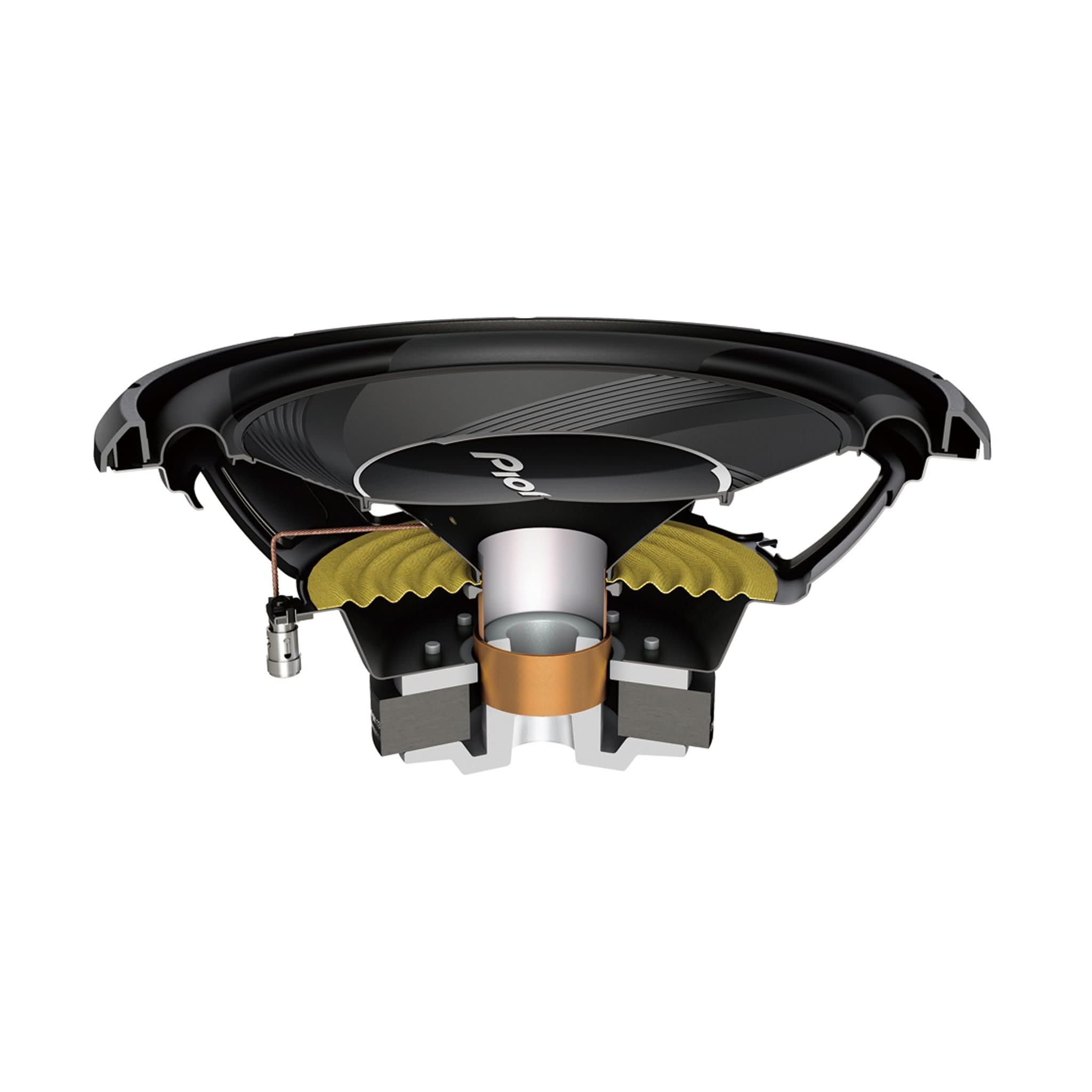

12" - 1400 W Max Power (400 W Nominal), IMPP cone produces tight and accurate bass, Specially designed Voice coil offers higher power handling - Component Subwoofer

Specs

Product Performance
Continuous Power handling (RMS) - Watts : 400
Frequency Response : 22 Hz to 1.6 kHz
Maximum Peak Power Handling - Watts : 1400
Nominal Impedance - Ohm : 4-Ohm
Sensitivity (1W/1m) : 87
System-Type : Component

Speaker Features
CarSoundFit : Yes
Cut Out dimensions : 11-1/8", 10 cm
Equivalent Compliance (VAS) : 56.1 Liters, 2 Cu. Ft.
Free Air ResoNAnce (Fs) : 32.1
Linear Excursion (Xmax) : 8.25 mm, 0.33"
Mounting Depth : 5-3/8"
Port Diameter : 3", 8 cm
Port Length : 6-1/2", 17 cm
Recommended Ported Box Internal volume : 42.5 Liters, 1.5 Cu. Ft.
Recommended Sealed Enclosure Volume : 35.4 Liters, 1.25 Cu Ft
Total Speaker "Q" (Qts) : 0.7
Woofer Dimensions : 12"
